N10040003 Hex Collared Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 34 g
- Shipping size (L × W × H)
- 3.5 × 2.5 × 2.5 cm
- Customs (HS) code
- 73181589

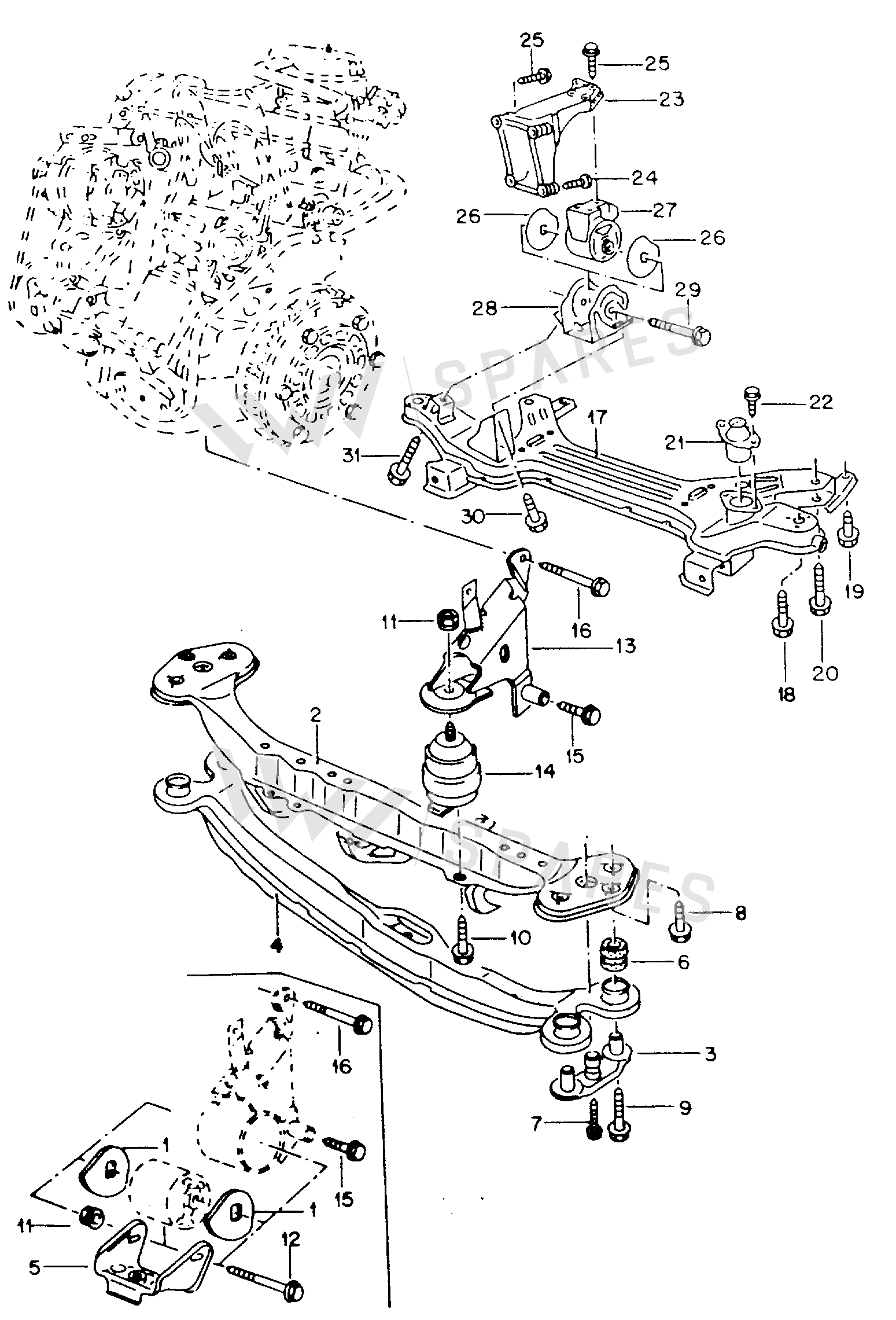

Parts diagram & fitment
1 vehicleHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 4Engsupport 191199201A
- 6Rubber Bush 191199233
- 7Bolt N0195461
- 10Bolt N10234204
- 11Collar Nut N10261310
- 12Bolt N10060701
- 14Rubber Bush 191199279E
- 15Bolt N10286205
- 16Screw N0447601
- 18Bolt N10209605
- 19Bolt N10257501
- 21Rubber Bush 191199402C
- 22Bolt N01953310
- 24Bolt N0195034
- 25Bolt N0195042
- 26Washer 191199438
- 27Rubber Bush 191199262A
- 28Support 357199471
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| GOLF,JETTA (MEX) | 1987-1992 | 8, 19, 5 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: GOLF,JETTA (MEX) 1987-1992.
