N10045701 Countersunk Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 350 g
- Country of origin
- Germany
- Customs (HS) code
- 73181558

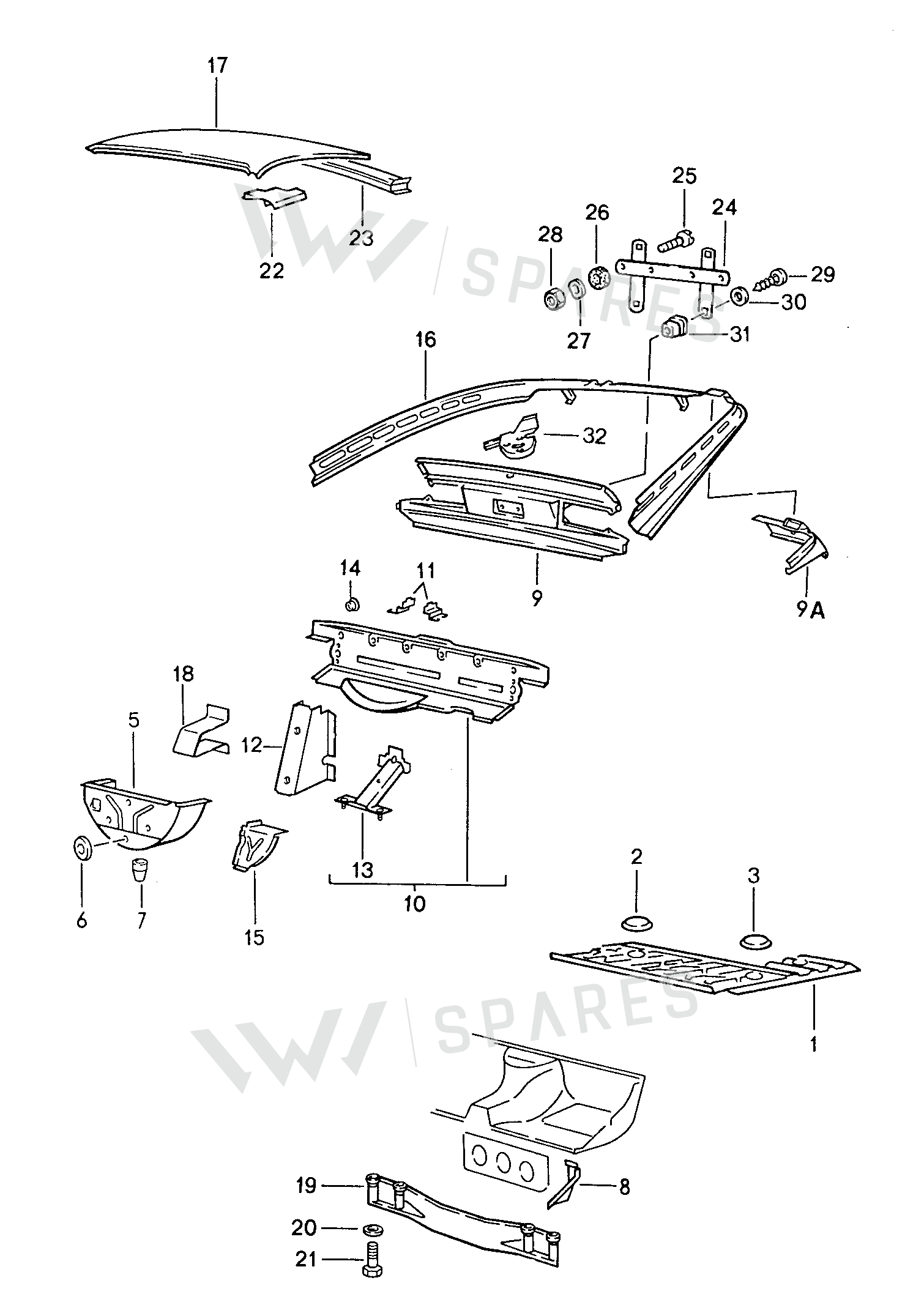

Parts diagram & fitment
7 vehiclesCountersunk Bolt — locate Countersunk Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly46
- 1Floorplate 95150107500
- 2Cover 94450420700
- 3Cover 411803595
- 5Wheel Well 95150113100
- 5Wheel Well 95150113102
- 6Grommet 803803583
- 6Grommet 99970319540
- 7Drain Tube 111701309
- 8PanelRight477813146B
- 8PanelLeft477813145B
- 9End Plate 94450303701
- 9AReinforceRight94450234601
- 9AReinforceLeft94450234501
- 10End Plate 94450390101
- 11BracketRight477813170
- 11BracketLeft477813169
- 12Bracket Mt 94450316501
- 13Bracket 94450209100
- 14Bungs 99970318040
- 14Bungs 99970317940
- 15PanelRight94450221000
- 15End PlateLeft477813309
- 16Carrier 94450203502
- 17Roof 94450391202
- 17Roof 94450391203
- 18Support 94450317100
- 19Crossstrut 477813285
- 20Screw 90007418102
- 21Washer 90002500804
- 21Part 90002500809
- 21Washer 9000250080E
- 22ReinforceRight477817034
- 22PlateLeft477817033
- 23Roof Frame 477817171A
- 24Bracket 92870105003
- 25Screw N0141431
- 26Rubber Was 803011243
- 27Washer N01166516
- 27Part N0116653
- 28Part 90008402601
- 28Part 90091000902
- 29Part 90014313400
- 29Screw 9001431340A
- 30Washer N0115228
- 31Part 99959149840
- 32R Bracket 94450120701
Vehicle fitment table7
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Coupe | 1988-1991 | 25 | 2 | "USA","J..", |
| S Coupe | 1985-1988 | 17 | 2 | |
| 944 Coupe | 1984-1988 | 25 | 2 | "USA","J..", |
| 944 Coupe | 1981-1985 | 25 | 2 | "USA","J..", |
| 924 S | 1979-1985 | 12 | 2 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 477 platform | 12 | 2 | ||
| 325 platform | 53 |
Diagrams & fitment data powered by oemdiagrams.com
Countersunk Bolt is fitted on: Coupe 1988-1991; S Coupe 1985-1988; 944 Coupe 1984-1988; 944 Coupe 1981-1985; 924 S 1979-1985; 477 platform; 325 platform.
