N10052001 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

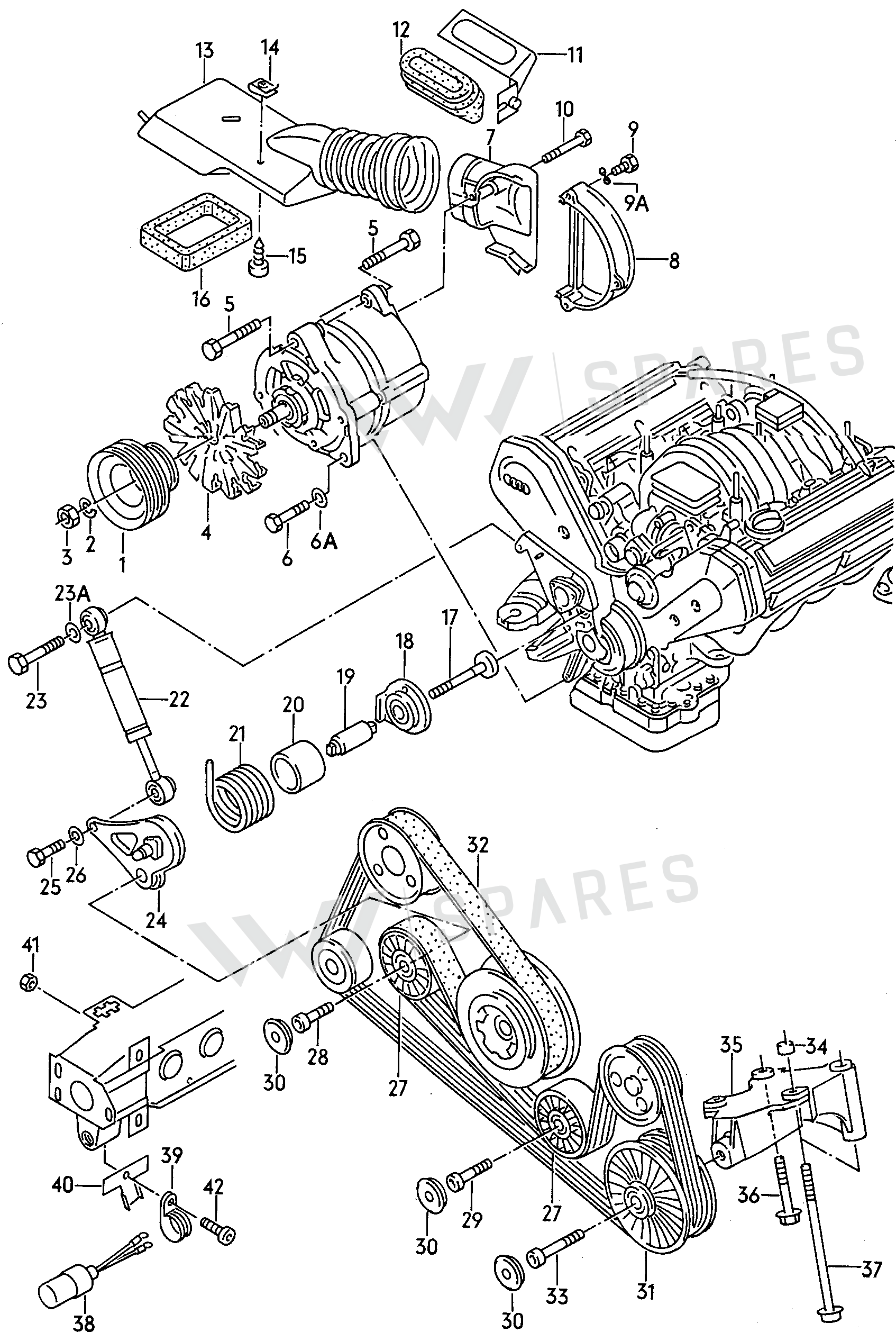

4 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Pulley 077903119
- 2Washer N0122385
- 3Part N0411817
- 4Fan Wheel 034903171
- 5Bolt N91031702
- 6Bolt N01034510
- 6AWasher N01152527
- 7Adapter 077903199A
- 8Protective Cap 077903193
- 9Bolt N0102076
- 9AWasher N0122224
- 10Bolt N10181201
- 11Bracket 441971849B
- 12Grommet 447971863A
- 13Air Guide 441903421A
- 14Part N0154487
- 15Screw N01396626
- 16Seal 441903575
- 17Screw 077903125
- 18Plate 077903409
- 19Shaft 077903415
- 20Sleeve 077903405
- 21Spring 077903401
- 22Shock Abs 077903427B
- 23Bolt N0103594
- 24Clip 077903411
- 25Bolt N01023929
- 26Washer N90179102
- 27Roller 077903341
- 28Screw N0447041
- 29Screw N0147135
- 30Part 077903343
- 31Roller 077903403A
- 32Ply-v-belt 077903137G
- 32Ply-v-belt 077903137D
- 32Ply-v-belt 077903137L
- 33Screw N0147172
- 34Sleeve 07K260817
- 35Bracket 077903417A
- 35Bracket 077903417
- 36Part N0199035
- 37Bolt N0103933
- 37Bolt N10036203
- 38Capacitor 6E0907488A
- 39Clamp N10102903
- 40Bracket 441903289
- 41Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 42Bolt N10196103
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi 100/Wagon qu. | 1992-1994 | 5 | 2 |
| Audi V8 | 1989-1993 | 5 | 2 |
| Audi 100/Wagon qu. | 1988-1990 | 8 | 2 |
| Audi 200T/Wagon qu. | 1988-1990 | 8 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Audi 100/Wagon qu. 1992-1994; Audi V8 1989-1993; Audi 100/Wagon qu. 1988-1990; Audi 200T/Wagon qu. 1988-1990.
