N10063601 Hexagon Head Bolt (Combi)
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

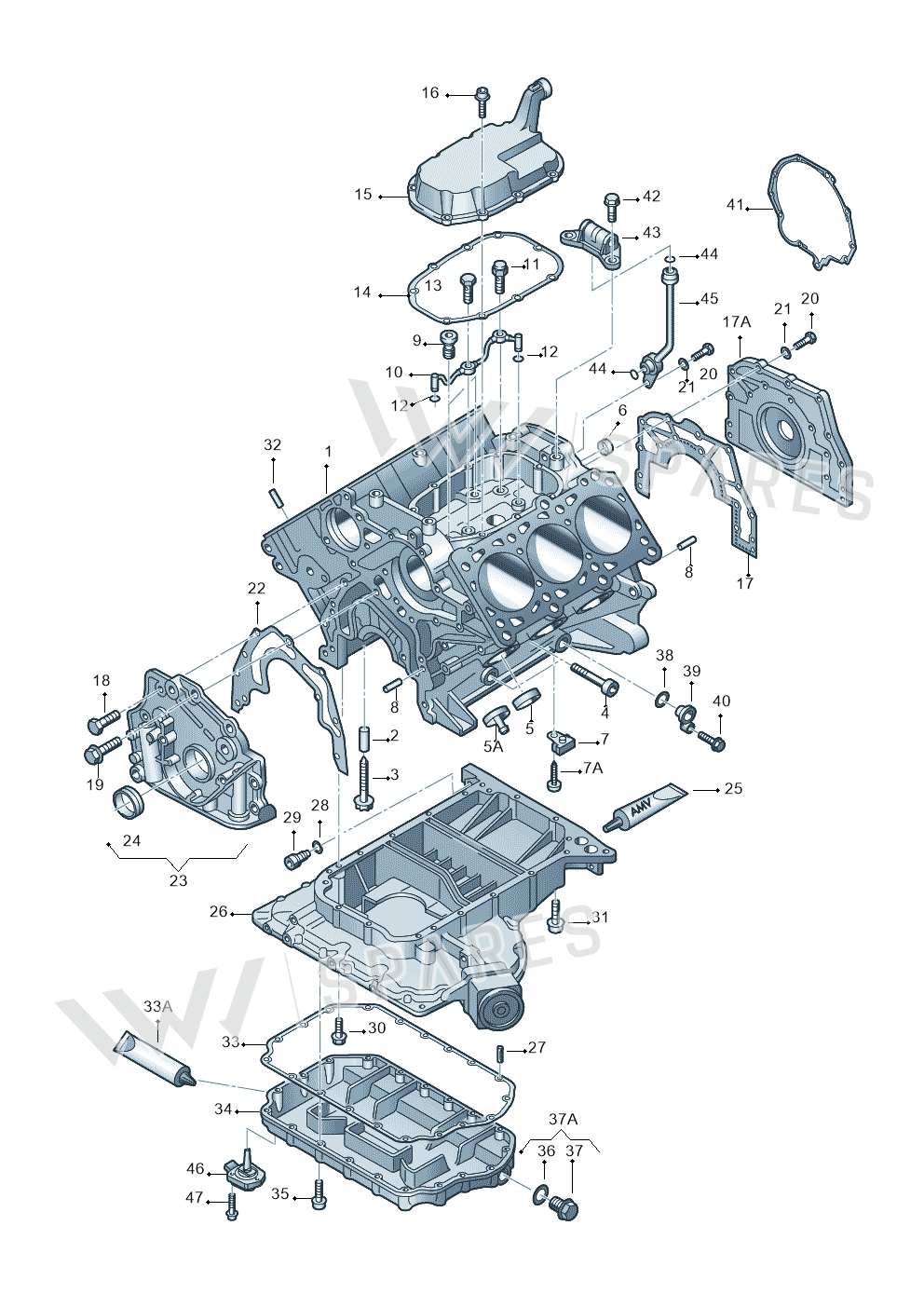

6 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Cylinder Block 078103101S
- 1Cylinder Block 078103101T
- 1Cylinder Block 078103101AG
- 1Cylinder Block 078103101BB
- 3Bolt 078103039F
- 4Screw N10238803
- 5Cover 036103113A
- 6Cover N0119034
- 7Vent 078103158C
- 7AScrew N10169902
- 8Part N0432072
- 9Valve 059103175F
- 11Vent 078115540F
- 12Seal Ring N90740801
- 13Screw 078115431E
- 14Trim 078103547F
- 15Ventilatio 078103773F
- 16Bolt N10124408
- 17AFlange 078103171K
- 17AFlange 078103171L
- 18Bolt N10063602
- 19Bolt 059103531A
- 20Bolt N01021527
- 21Washer N01152423
- 22Seal 078115189H
- 23Flange 078103151C
- 24Seal 038103085E
- 25Seal D176404A2
- 26Oil Sump 078103603AM
- 28Seal Ring N90041102
- 29Screw 078121951A
- 30Bolt N90824401
- 30Bolt N90851701
- 31Screw N0903782
- 32Part 055105277
- 34Oil Sump 078103604AA
- 34Oil Sump 078103604AC
- 37ABolt N90813201
- 38Seal Ring N90500101
- 39Cover 078103113D
- 40Bolt N0902612
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Passat/4Motion/W8 | 2000-2002 | 18, 23 | 8 | T7F,QG0,QG1,QG2 |
| LUPO/3L TDI | 1998-2003 | 25 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 18, 23 | 8 | |
| Passat | 1997-2000 | 18, 23 | 8 | |
| POLO | 1994-1999 | 16 | 1 | |
| Audi Cabrio. | 1993-1998 | 18 | 8 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: Passat/4Motion/W8 2000-2002; LUPO/3L TDI 1998-2003; Passat syncro/4Motion 1998-2000; Passat 1997-2000; POLO 1994-1999; Audi Cabrio. 1993-1998.
