N10067004 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

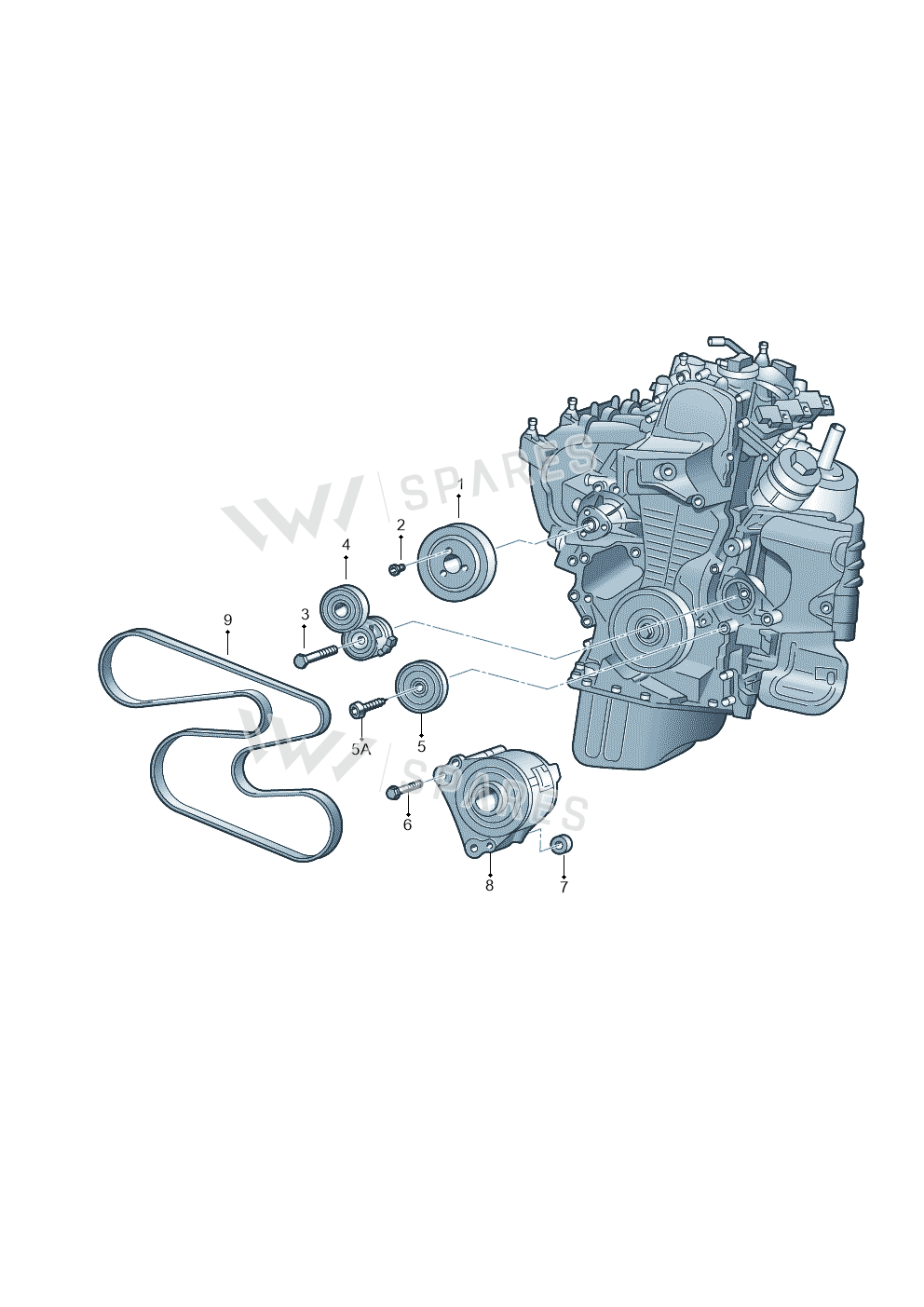

16 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly20
- 1Pulley 03D121028B
- 2Screw N90544203
- 3Part N10462601
- 3Bolt N10328002
- 3Bolt N0195433
- 3Bolt N10197304
- 3Bolt N10240001
- 3Bolt N10240003
- 3Bolt N10286205
- 4B Tensionr 03E903133A
- 4Tensioner 6Q0145299
- 4B Tensionr 03C145299C
- 5Caster 03D145276D
- 5Caster 1J0145276
- 6Bolt N10610001
- 7Sleeve 03D103232A
- 9Ply-v-belt 03E260849A
- 9Ply-v-belt 03D145933AG
- 9Ply-v-belt 6Q0260849A
- 9Ply-v-belt 6Q0903137A
Vehicle fitment table16
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo | 2012-2014 | 6 | 2 | T70 | |
| Ibiza Reference | 2011-2012 | 6 | 2 | T70 | |
| Polo | 2009-2014 | 6 | 2 | ||
| Polo | 2009-2012 | 6 | 2 | T70 | |
| Ibiza Reference | 2008-2011 | 5 | 1 | PR:9AA | TF4 |
| Polo | 2008-2009 | 6, 5 | 2 | ||
| ROOMSTER 06> | 2006- | 13, 5 | 1 | 9AA | |
| FABIA/COMBI NF 07> | 2006- | 13, 5 | 1 | 9AA | |
| POLO | 2005- | 6, 5 | 2 | ||
| IBIZA 06> | 2005- | 5 | 1 | 9AA | |
| CORDOBA 06> | 2005- | 13, 5 | 1 | 9AA |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo | 2014-2022 | 6 | 2 | ||
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 4 | 1 | 7KY | |
| POLO CLASSIC "ZA"05> | 2005- | 5 | 1 | ||
| POLO-BRASIL | 2002-2006 | 28 | 1 | ||
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 28 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Polo 2012-2014; Ibiza Reference 2011-2012; Polo 2009-2014; Polo 2009-2012; Ibiza Reference 2008-2011; Polo 2008-2009; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; Polo 2014-2022; DIES.-IND.-MOT.1,9>2,0 08> 2007-; POLO CLASSIC "ZA"05> 2005-; POLO-BRASIL 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006.
