About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

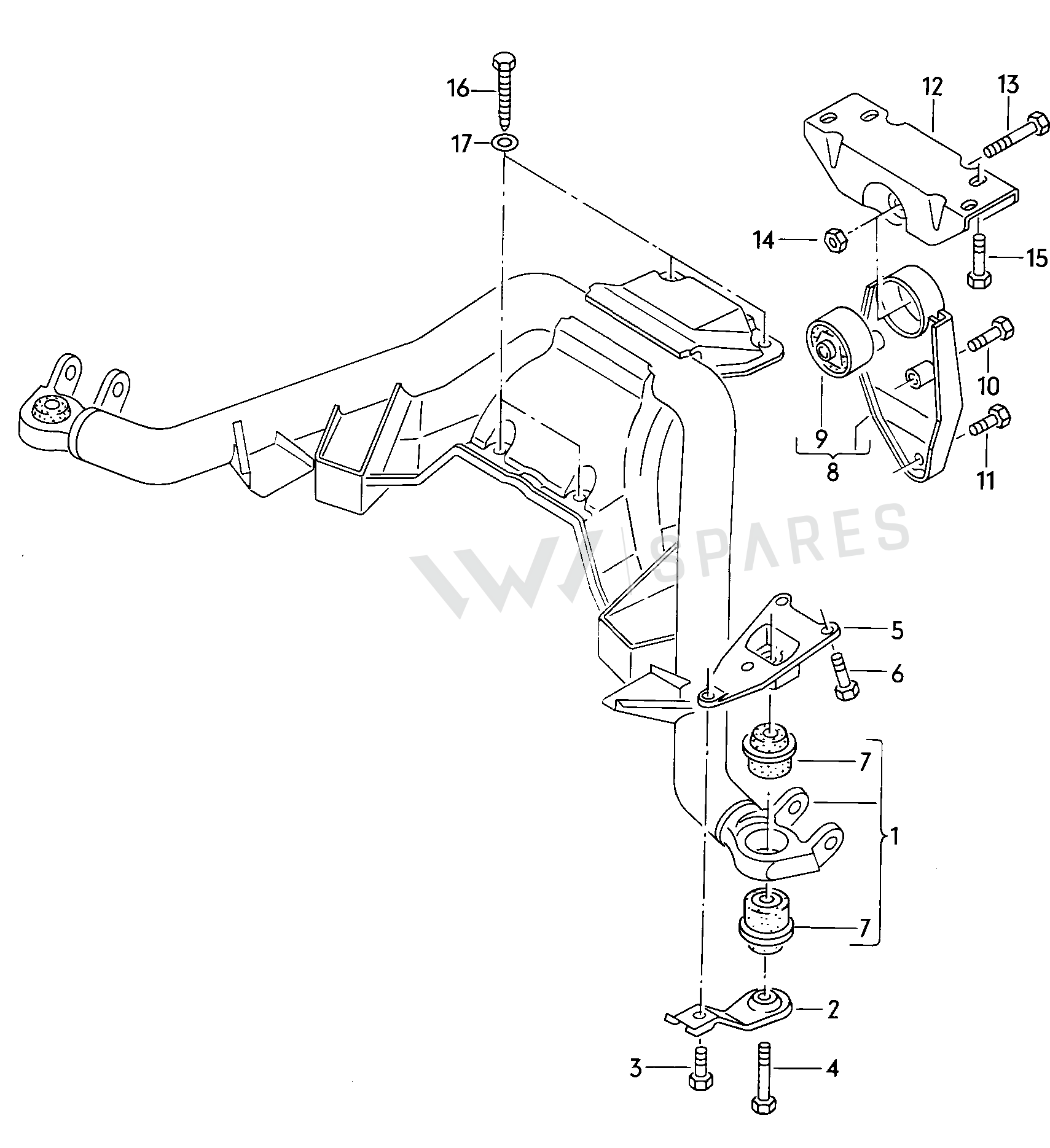

2 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Carrier 321505099
- 2Support 321505119
- 3Bolt N0102493
- 4Bolt N10207803
- 5Bracket 321505129
- 6Bolt N10070403
- 7Rubber Bush 331505171
- 8Bracket 321599258
- 9Rubber Bush 1H0599273
- 11Bolt N0102524
- 12Support 321599277
- 13Bolt N0104602
- 14Ut Hexagon Nut Self-locking Hexagon Nut N10209005
- 15Bolt N10141701
- 16Bolt N0402452
- 17Washer N0115317
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf/Jetta syn, Rallye | 1985-1991 | 6 | 6 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Quantum syncro | 1985-1988 | 6 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Golf/Jetta syn, Rallye 1985-1991; Quantum syncro 1985-1988.
