N10088302 Clamp
- N10088302This pageNot stocked
Feb 2011 - N91171101Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

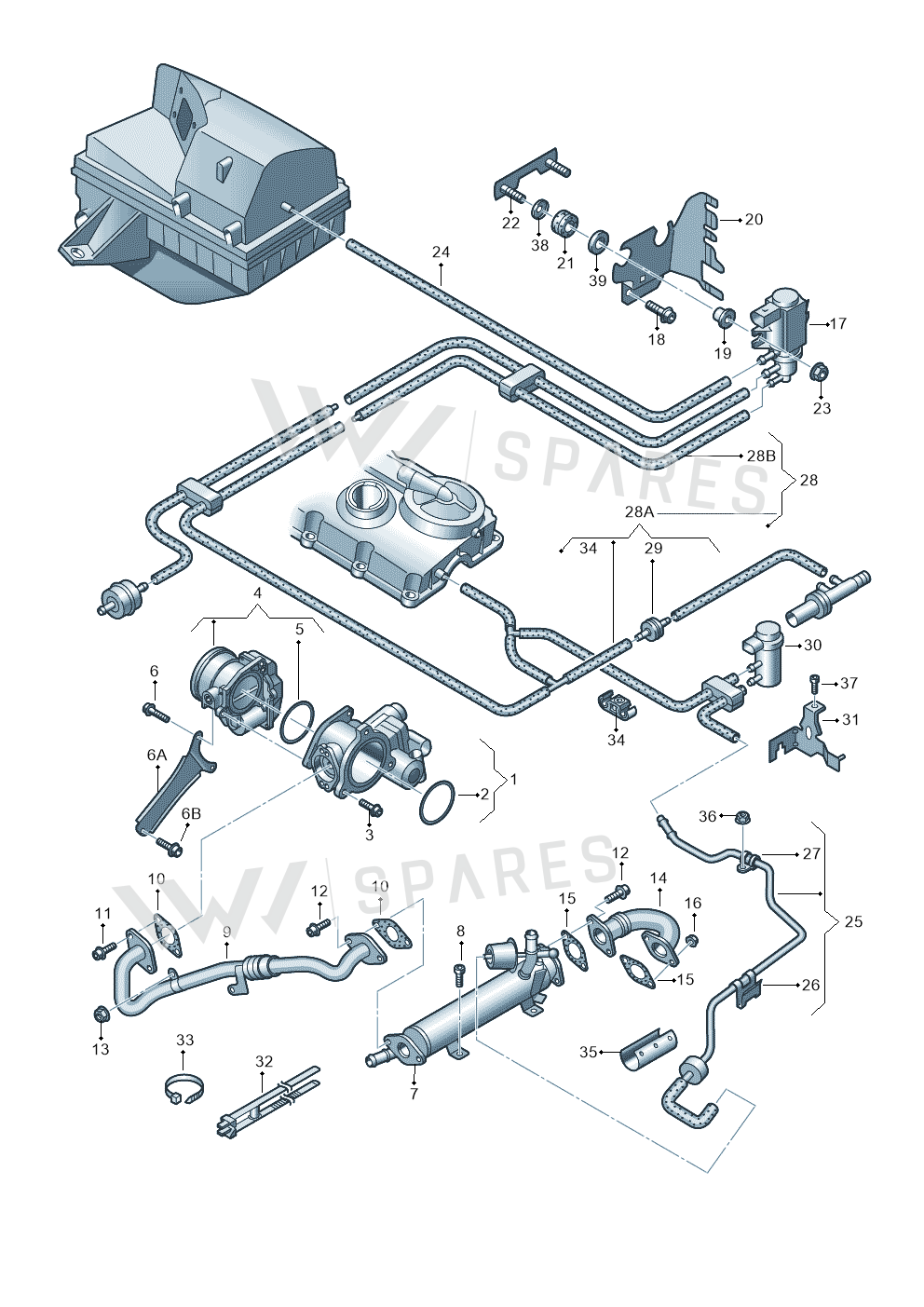

16 vehiclesClamp — locate Clamp in the official exploded view and explore the surrounding assembly.
Parts in this assembly45
- 1Valve 03L131501E
- 1Valve 03L131501G
- 2Seal 03G131547C
- 3Bolt N10196103
- 4Thr Flap 03L128063E
- 5Seal 03L131547B
- 6Screw N10562603
- 6Screw N10740901
- 6Bolt N10670301
- 7Radiator 03L131512B
- 8Bolt N91073301
- 9Pipe 03L131521AK
- 10Seal 069131547D
- 11Screw N91048802
- 12Screw N10664901
- 13Collar Nut N01508210
- 14Pipe 03G131521AM
- 15Seal 03L131547D
- 15Seal 038131547A
- 16Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 17Converter 1K0906627A
- 18Screw N10650701
- 19Spacer 052129734
- 20Retaining 1K0906215S
- 21Grommet 046131887
- 22Plate 046130405
- 24Hose 03L131055C
- 25Pipe 03L131605H
- 26Clip 07D971939
- 28Hose 03L131055D
- 28AHose 03L131055AQ
- 28AHose 03L131055AP
- 28BHose 03L131055BB
- 29Valve 046905291B
- 30Valve 1K0906283A
- 31Retaining 03L131529E
- 31Retaining 03L131529D
- 32Binder 4A0820199
- 33Cable Tie 3D0971838N
- 34Clip 6Q0131927
- 35Heat Insul 03G131531F
- 36Collar Nut N01508213
- 37Bolt N10406504
- 38Thrustring 1K0906139
- 39Thrustring 1K0906139A
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Yeti | 2009-2013 | 27 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 27 | 1 | |
| Jetta Vagon 08> | 2008- | 27 | 1 | TJ3 |
| superb comfort | 2008-2013 | 27 | 1 | |
| octavia ambiente | 2008-2013 | 27 | 1 | |
| golf 2.0 | 2008-2011 | 27 | 1 | |
| passat estate | 2008-2011 | 27 | 1 | |
| jetta | 2008-2011 | 27 | 1 | |
| EOS 2.0 | 2008-2010 | 27 | 1 | |
| Passat/4Motion 08 | 2007- | 27 | 1 | |
| GOLF VARIANT 07> | 2007- | 27 | 1 | |
| Audi TT Coupe/Roadster 08> | 2007- | 33 | 1 | TG3 |
| ALTEA 07> | 2006- | 27 | 1 | |
| LEON 06> | 2005- | 27 | 1 | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 27 | 1 | |
| TOLEDO 05> | 2004- | 27 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Clamp is fitted on: Yeti 2009-2013; Golf Plus 1.6 2009-2011; Jetta Vagon 08> 2008-; superb comfort 2008-2013; octavia ambiente 2008-2013; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; GOLF VARIANT 07> 2007-; Audi TT Coupe/Roadster 08> 2007-; ALTEA 07> 2006-; LEON 06> 2005-; OCTAVIA/COMBI/4X4 04> 2004-; TOLEDO 05> 2004-.
