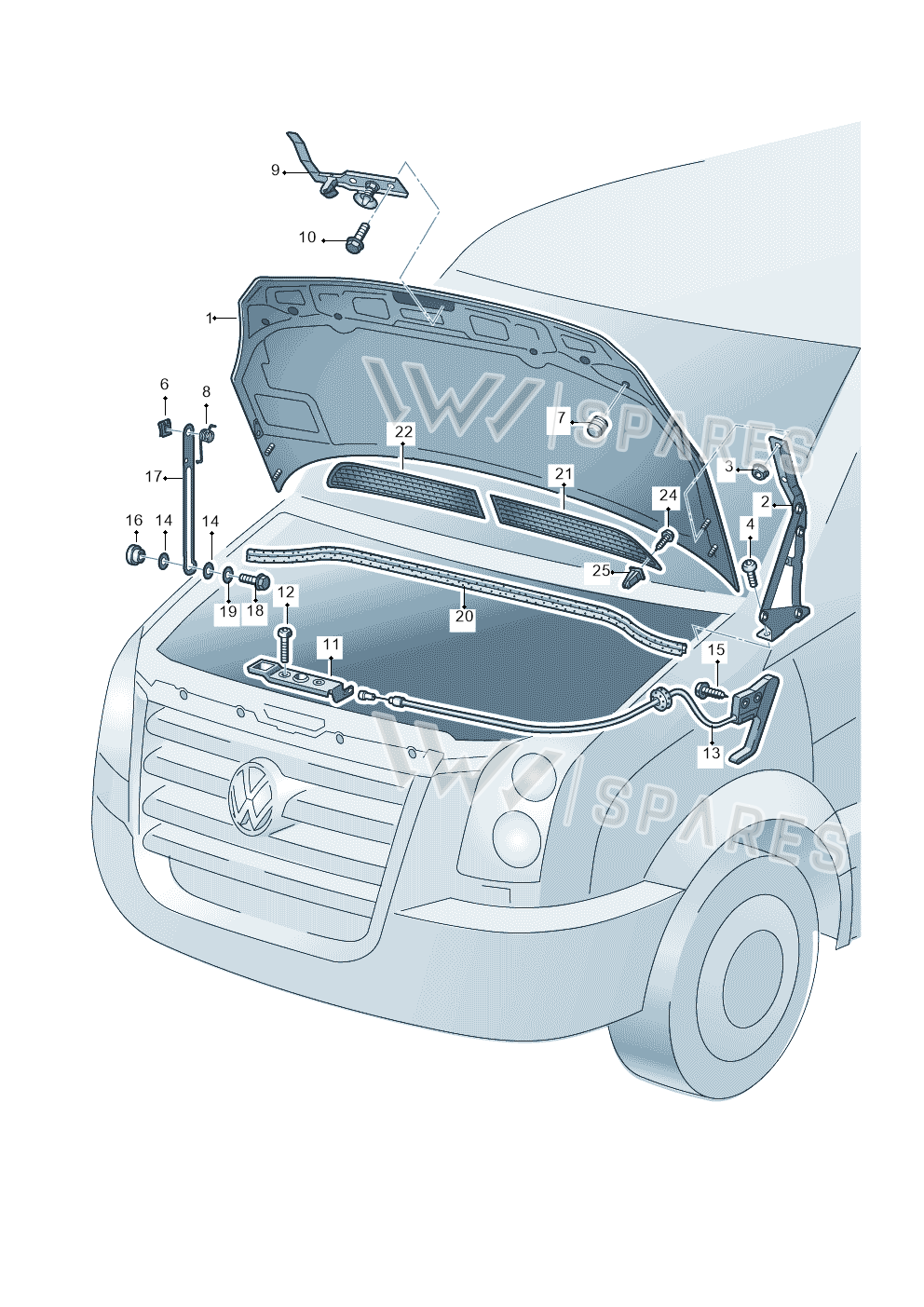

Hexagon Bolt exploded parts diagram — CRAFTER 06> · 2006-, position 18 — CRAFTER 06> · 2006- · position 18Full diagram ↓

N10128105

N10128105 Hexagon Bolt

Name: N10128105 Hexagon Bolt
Brand: Volkswagen
SKU: N10128105
Price: 0.47 GBP
Availability: Discontinued

£0.47

£0.39 excl. VAT

Supersession roadoldest to newest

WHT001565
Not stocked Apr 2006
N10128105
Not stocked Nov 2006
You are here
N10128110
Current number

WHT001565Not stocked
Apr 2006
N10128105This pageNot stocked
Nov 2006
N10128110Current number

Current part numberN10128110What the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

1 vehicle

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly28

Vehicle fitment table1

Europe (1)

Vehicle	Years	Pos.	Qty
CRAFTER 06>	2006-	18, 21	1
