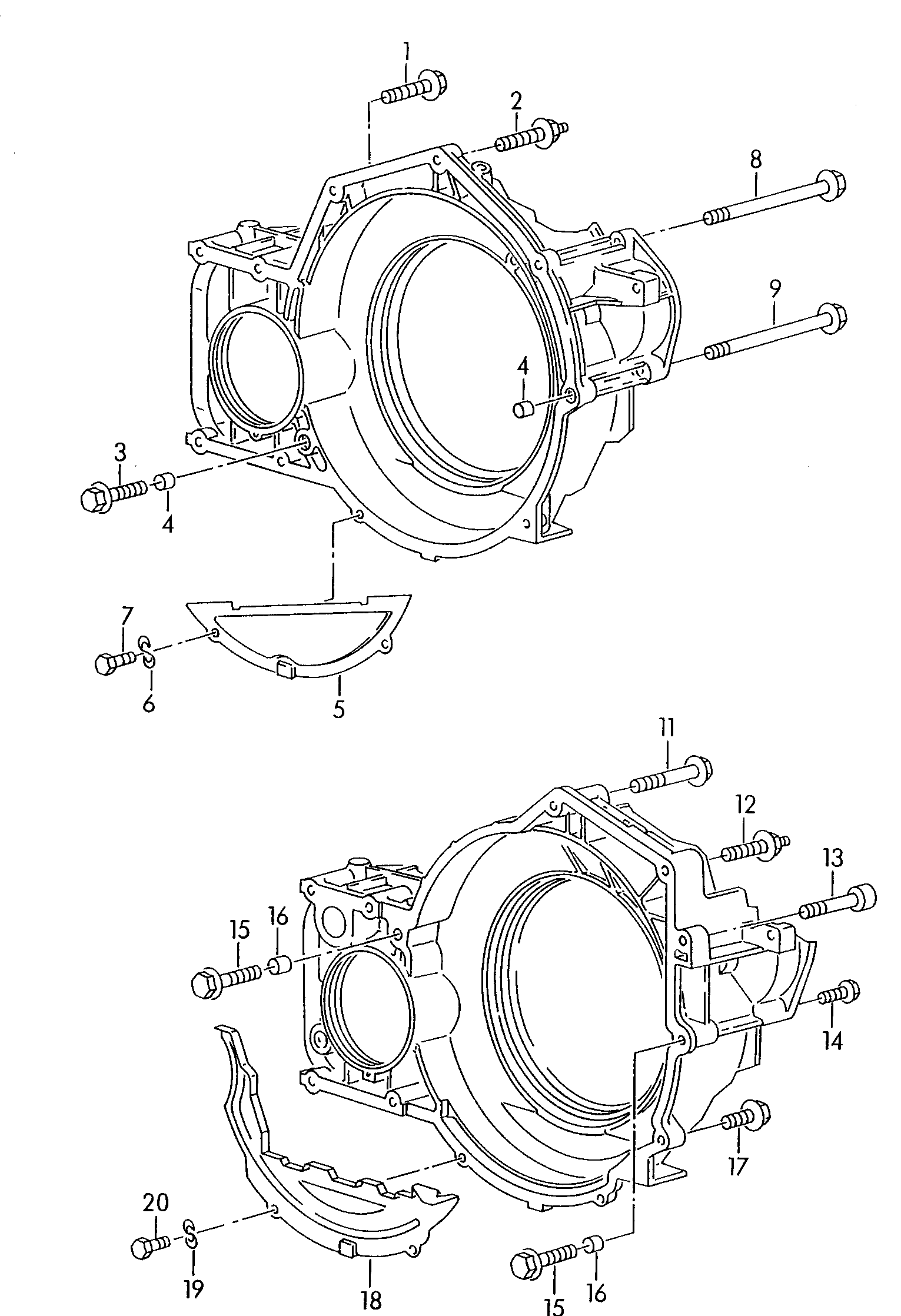

Hexagon Bolt exploded parts diagram — GOLF VAR./VENTO · 1996-1999, position 17
Exploded view
GOLF VAR./VENTO · 1996-1999 · position 17Full diagram ↓
N10163301

N10163301 Hexagon Bolt

£2.61
£2.16 excl. VAT
Supersession roadoldest to newest
  1. NFE600414CNot stocked
    Oct 1999
  2. N10163301This pageNot stocked
    Jun 2009
  3. N10321802Discontinued
    Oct 2024
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

17 vehicles

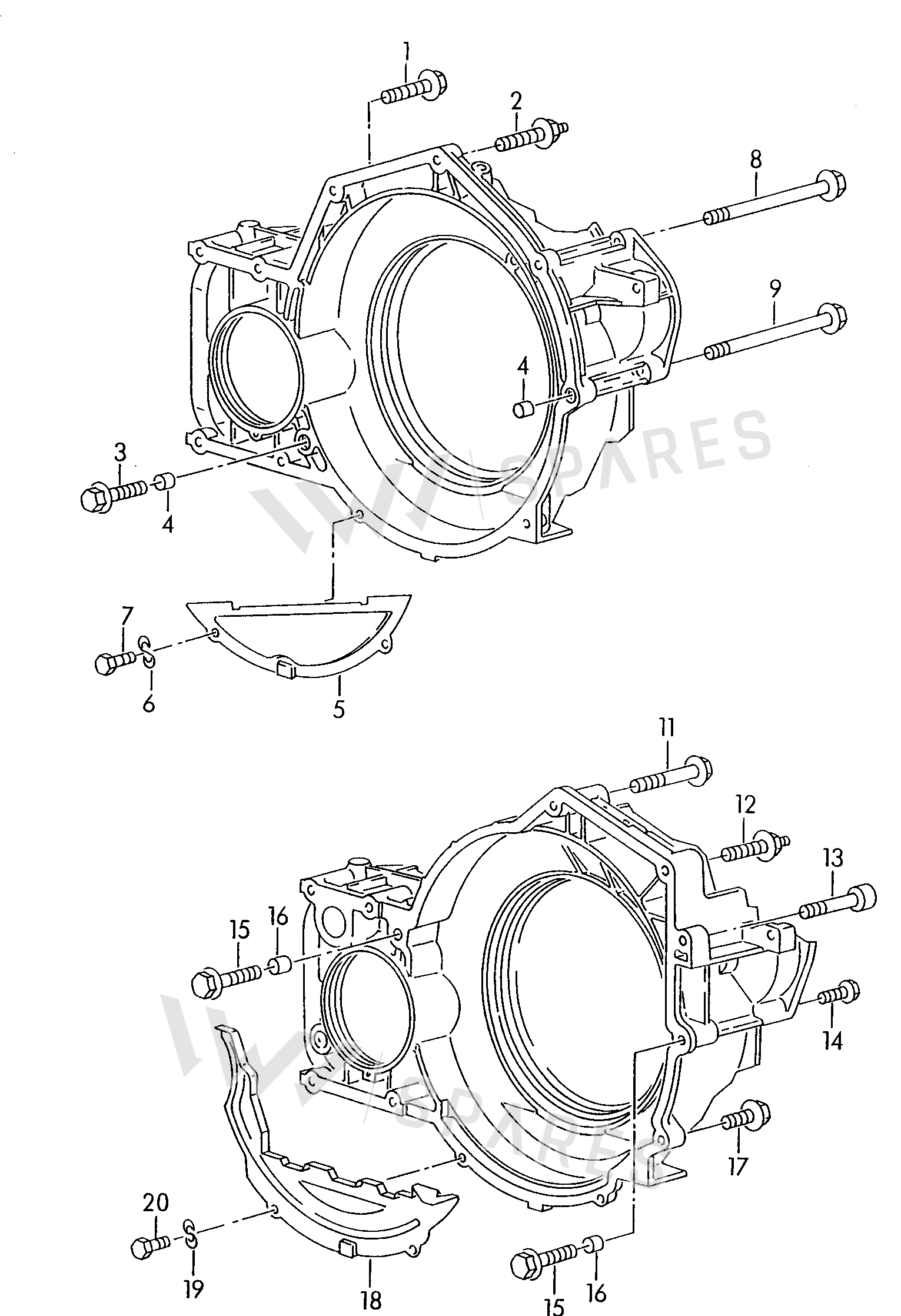

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly9
Vehicle fitment table17

Europe (15)

VehicleYearsPos.Qty
GOLF VAR./VENTO1996-1999171
Golf1996-199714, 171
L801995-1999151
Golf 961995-199614, 171
Golf Var./Vento 961995-199614, 171
Passat1994-1997141
Passat Var.syncro1994-1996141
Golf/Ecomatic 951994-199514, 171
Golf Var./Vento 951994-199514, 171
Golf/Var. syncro1993-1997141
Jetta GLX 941993-1994141
GOLF/Ecomatic1991-199414, 171
Passat1991-1993131
Corrado1989-199517, 141
Passat1989-1991131

Other markets (2)

VehicleYearsPos.Qty
Golf/Jetta "USA","Mex"97>991996-199814, 171
Golf/Jetta "USA","MEX"93>961992-199614, 171

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: GOLF VAR./VENTO 1996-1999; Golf 1996-1997; L80 1995-1999; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Passat Var.syncro 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Corrado 1989-1995; Passat 1989-1991; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
