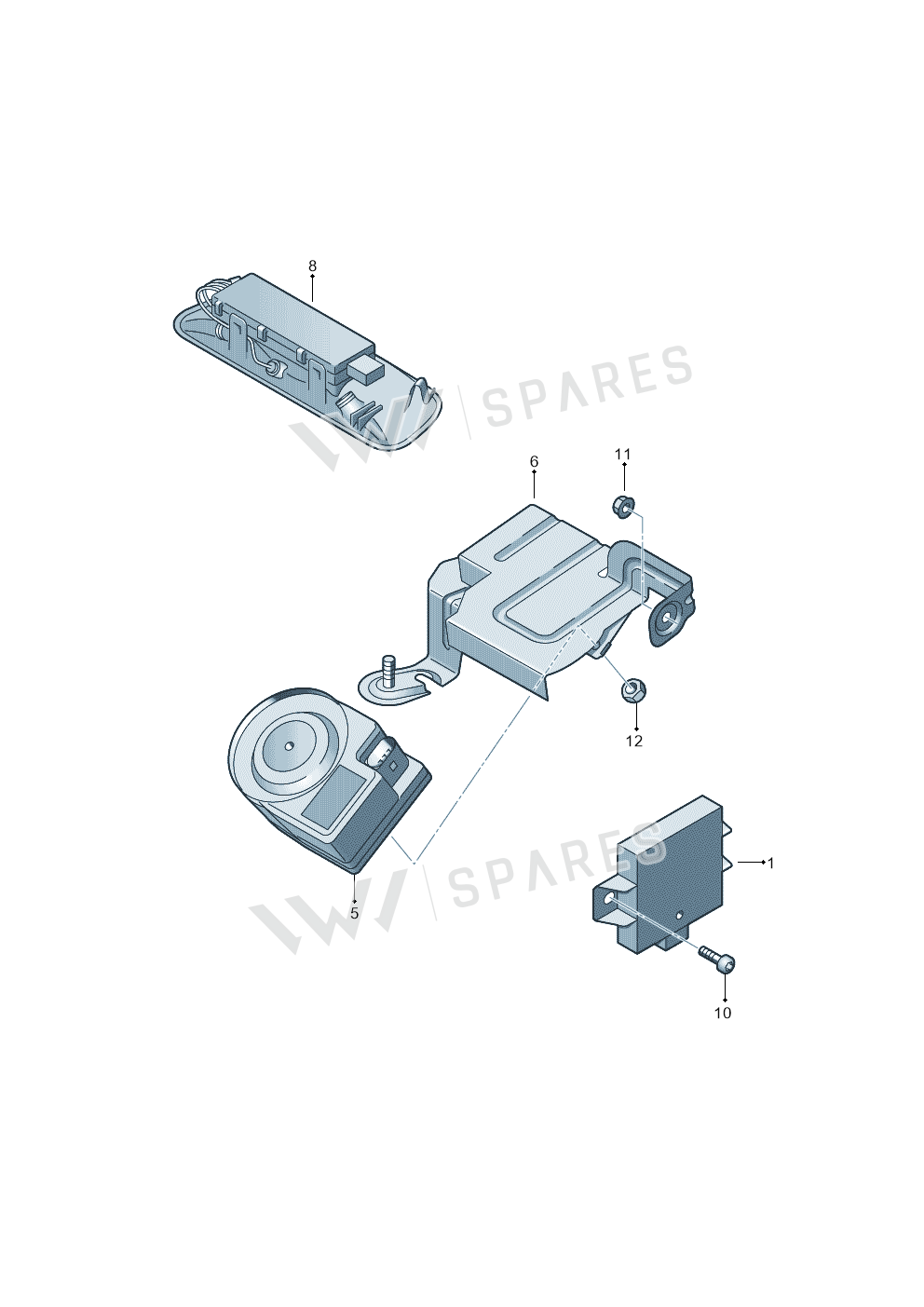

Round Hd Screw exploded parts diagram — caddy panel van · 2008-2010, position 10

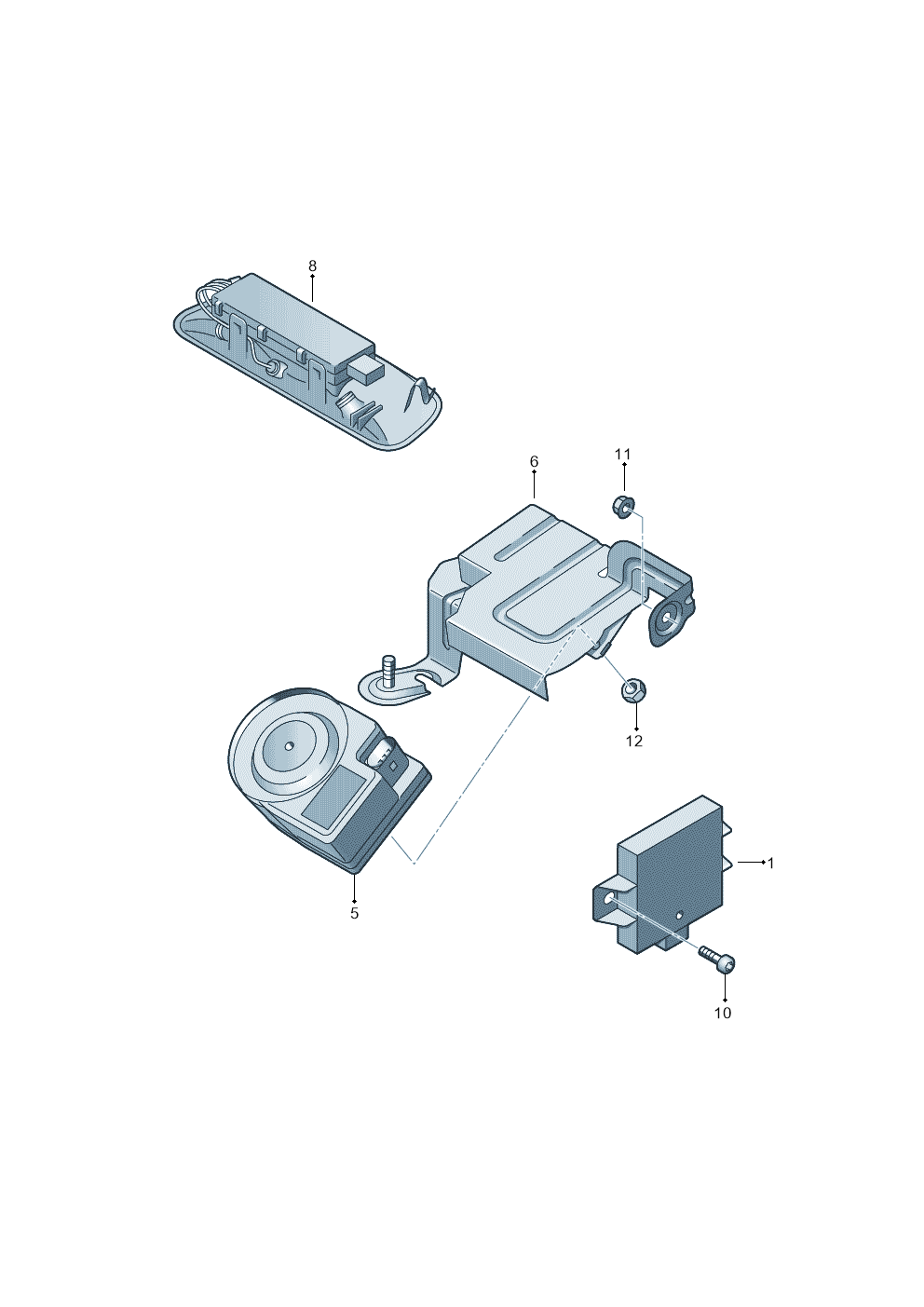

Exploded view
caddy panel van · 2008-2010 · position 10Full diagram ↓
N10170301

N10170301 Round Hd Screw

£0.38
£0.31 excl. VAT
Supersession roadoldest to newest
  1. N10170301This pageNot stocked
    Aug 2012
  2. N10170303Current number
Current part numberN10170303What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

20 vehicles

Round Hd Screw — locate Round Hd Screw in the official exploded view and explore the surrounding assembly.

Parts in this assembly7
Vehicle fitment table20

Europe (19)

VehicleYearsPos.QtyRemarkPR
caddy panel van2008-2010102L0L
Touran 1.92008-2010102
Cayenne2007-2010142
TOURAN2006-102
TRANSPORTER/4MOTION 072006-200742, 76
CAMPMOBIL (T5) 072006-200741, 76
TOURAN2005-200633, 11, 101
Touareg2005-200610, 271
TRANSPORTER/4MOTION 062005-200642, 76
CADDY2004-102L0L
CAMPMOBILE(T5)2004-200641, 76
Audi A8/S8/qu. lang2003-2007492D1E
Phaeton (lang)2003-200617, 181D1T
Touareg2003-200510, 271D1T
TOURAN2003-200533, 11, 101
TRANSPORTER2003-200542, 76
Cayenne2002-2006142
Audi A4/S4/Av./qu.2001-2004224
Audi A6 Allroad qu.2000-200521G0Q

Other markets (1)

VehicleYearsPos.QtyRemarkPR
TOURAN (SVW) "CN"04>2004-11, 131PR:G1A

Diagrams & fitment data powered by oemdiagrams.com

Round Hd Screw is fitted on: caddy panel van 2008-2010; Touran 1.9 2008-2010; Cayenne 2007-2010; TOURAN 2006-; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TOURAN 2005-2006; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; CADDY 2004-; CAMPMOBILE(T5) 2004-2006; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; TOURAN 2003-2005; TRANSPORTER 2003-2005; Cayenne 2002-2006; Audi A4/S4/Av./qu. 2001-2004; Audi A6 Allroad qu. 2000-2005; TOURAN (SVW) "CN"04> 2004-.
