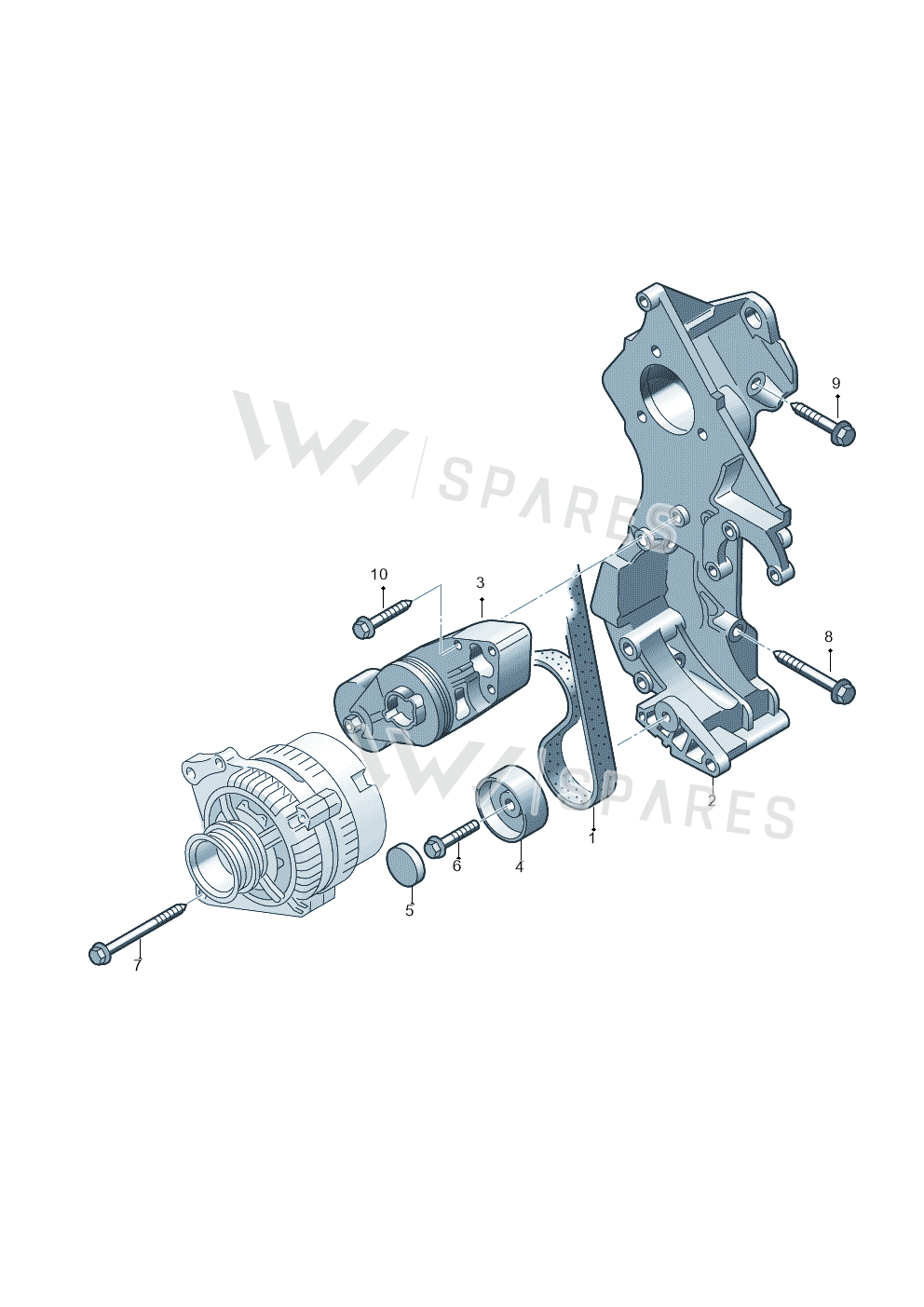

Hex Collared Bolt exploded parts diagram — AUDI A3/S3/QUATTRO · 1996-2000, position 8
Exploded view
AUDI A3/S3/QUATTRO · 1996-2000 · position 8Full diagram ↓
N10197302

N10197302 Hex Collared Bolt

£1.00
£0.83 excl. VAT
Supersession roadoldest to newest
  1. N10197302This pageNot stocked
    Jul 1998
  2. N10197301Current number
Current part numberN10197301What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly19
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
AUDI A3/S3/QUATTRO1996-200084

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: AUDI A3/S3/QUATTRO 1996-2000.
