N10226101 Socket Head Bolt
- N10226101This pageNot stocked
Mar 2009 - N10451405Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

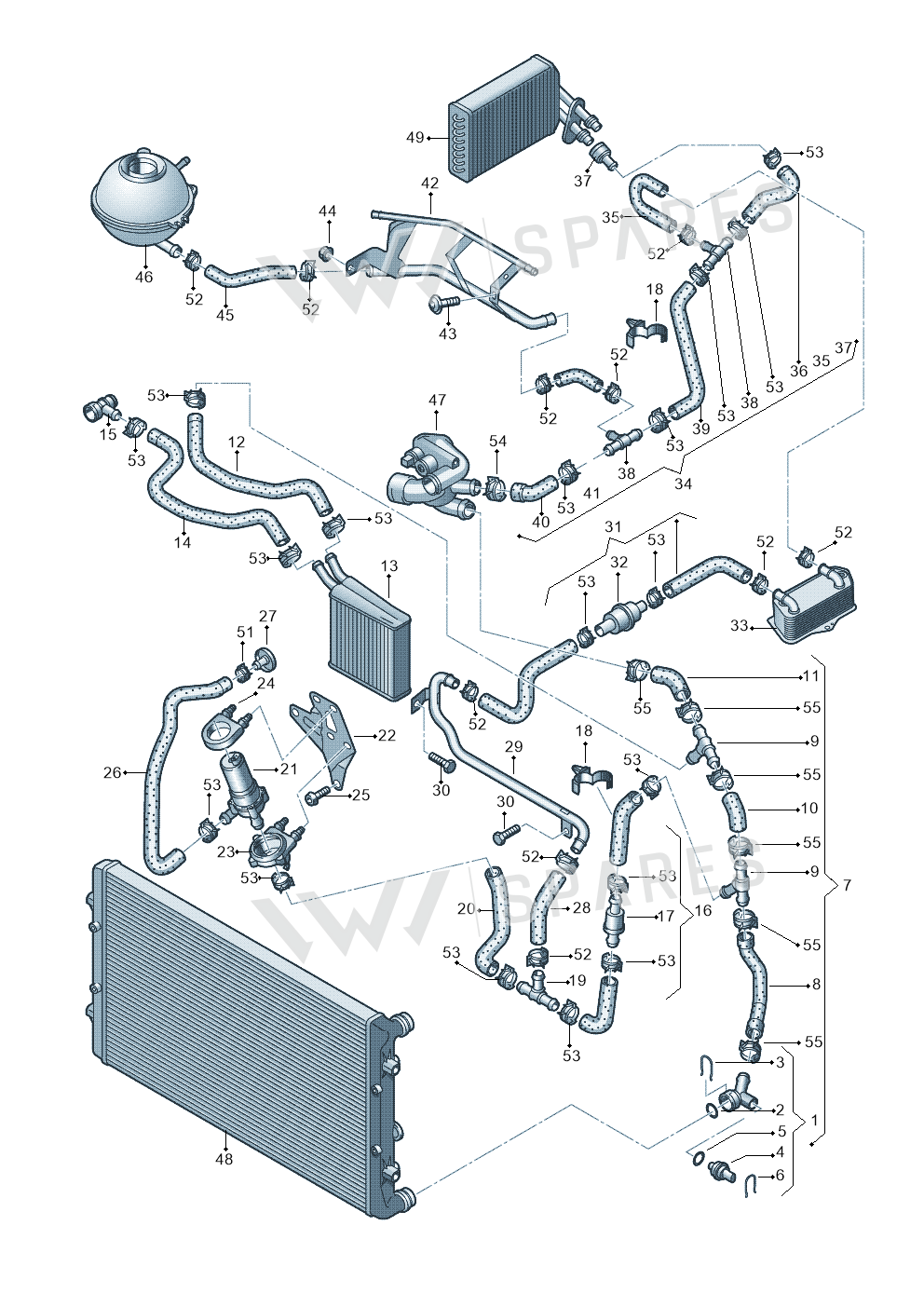

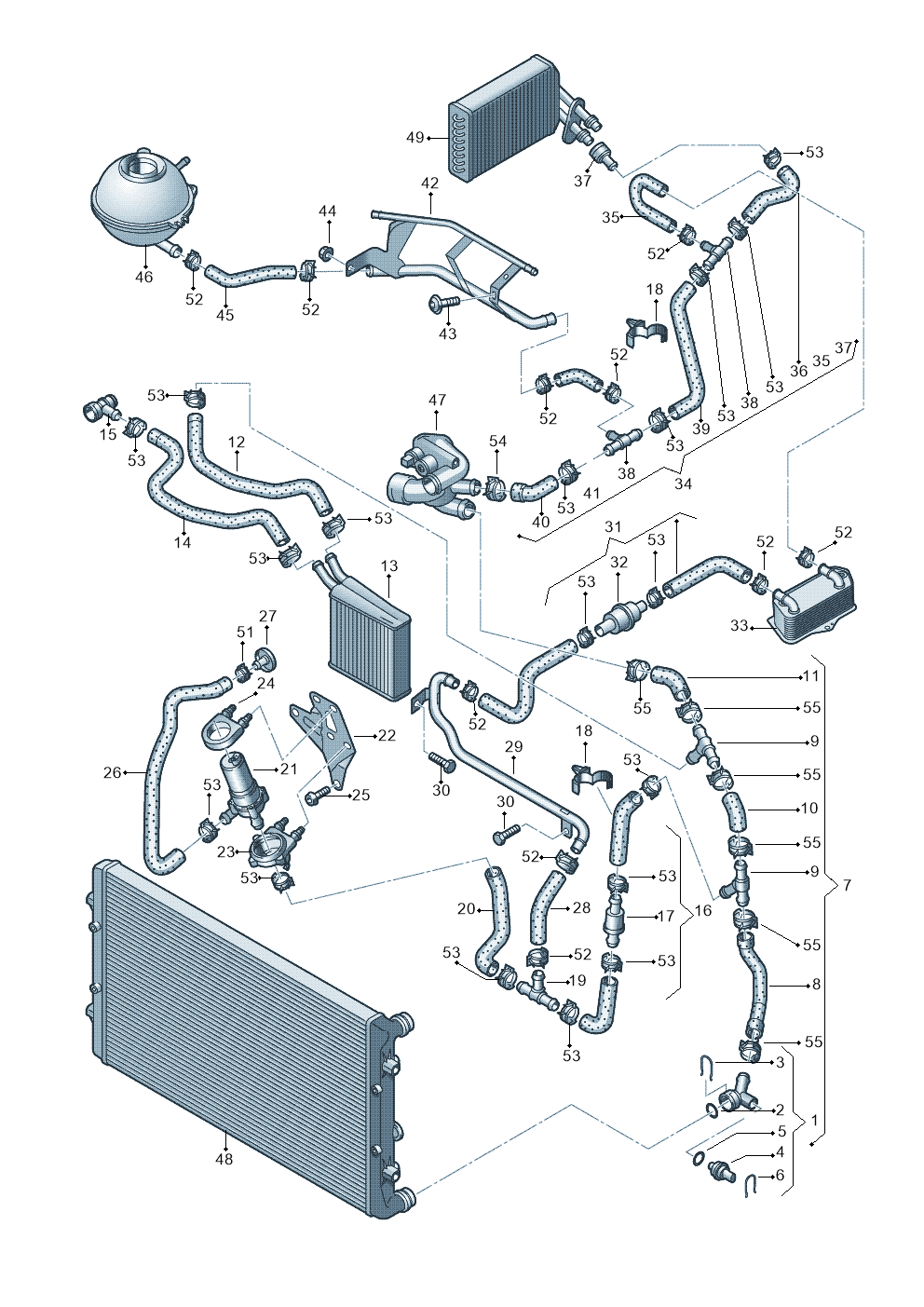

22 vehiclesSocket Head Bolt — locate Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Coupl Piece 1K0122291AE
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Sender 06A919501A
- 5Seal Ring N90316801
- 6Spring 032121142
- 8Hose 1K0121051M
- 9Adapter N90692901
- 10Hose 1K0121051P
- 11Hose 1K0121051Q
- 12Hose 1K0121051R
- 14Hose 1K0121101T
- 16Hose 1K0121086K
- 17Valve 1J0122351
- 18Clip 1J0121093BB
- 19Tpiece N90794401
- 20Hose 1K0121086L
- 21Pump 3D0965561D
- 22Bracket 022121079B
- 23Mounting 022959209
- 24Rubber Bush 035959209F
- 26Hose 1K0121063C
- 28Hose 1K0121096AL
- 29Water Pipe 1K0121070J
- 30Bolt N90667402
- 31Hose 1K0121096A
- 35Hose 1K0121109AA
- 36Hose 1K0121073AE
- 37Coupl Piece 3B0122291B
- 39Hose 1K0121073AK
- 40Hose 1K0121073AL
- 41Hose 1K0121058AL
- 42Water Pipe 1K0121070
- 42Water Pipe 1K0121070T
- 42Water Pipe 1K0121070AG
- 43Bolt N10405604
- 44Collar Nut N90295502
- 45Hose 1K0121109
- 45Hose 1K0121109AH
- 51Clamp N90926401
- 52Clamp N90686901
- 53Clamp N90687001
- 54Clamp N90687101
- 55Clamp N90687201
Vehicle fitment table22
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 25 | 1 | ||
| GOLF VARIANT 07> | 2007- | 10 | 1 | TF0 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 25 | 1 | ||
| TRANSPORTER/4MOTION 07 | 2006-2007 | 23 | 2 | ||
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 23 | 2 | ||
| CAMPMOBIL (T5) 07 | 2006-2007 | 23 | 2 | ||
| Audi A3/S3/quattro | 2005-2007 | 25, 18 | 5 | T72 | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 9, 15, 23 | 2 | AXD,AXE,BLJ | T85 |
| TRANSPORTER 06 | 2005-2006 | 9, 15, 23 | 2 | AXD,AXE | T85 |
| CAMPMOBILE(T5) | 2004-2006 | 9, 15, 23 | 2 | AXD,AXE | T85 |
| Touareg | 2003-2005 | 41, 7, 9, 15, 16 | X | ||
| TRANSPORTER | 2003-2005 | 9, 15, 23 | 2 | ||
| PASSAT/4MOTION/W8 | 2002-2005 | 15 | 5 | M3E | |
| POLO | 2001-2005 | 31 | 1 | ||
| Audi A4/S4/Av./qu. | 2001-2004 | 11 | 2 | T17 | |
| Passat/4Motion/W8 | 2000-2002 | 15 | 5 | M3E | |
| Audi A8 quattro | 1999-2002 | 20 | 4 | ||
| LT, LT 4X4 | 1996-2003 | 23 | 2 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 2 | 2 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 49 | 2 | D4G | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 20 | 1 | BKB |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 7L6 platform | 41 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Socket Head Bolt is fitted on: Audi A3 Sportback 2008-2013; GOLF VARIANT 07> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Audi A3/S3/quattro 2005-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; Touareg 2003-2005; TRANSPORTER 2003-2005; PASSAT/4MOTION/W8 2002-2005; POLO 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; LT, LT 4X4 1996-2003; AUDI A6L "CN"05> 2005-; Golf 'R32' n. "USA" 2004-2004; AUDI A4/AV./QU. "CN"03>05 2003-2005; 7L6 platform.
