N10237101 Hex Collared Bolt
- N10237101This pageNot stocked
Apr 2007 - N10237103Discontinued
May 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

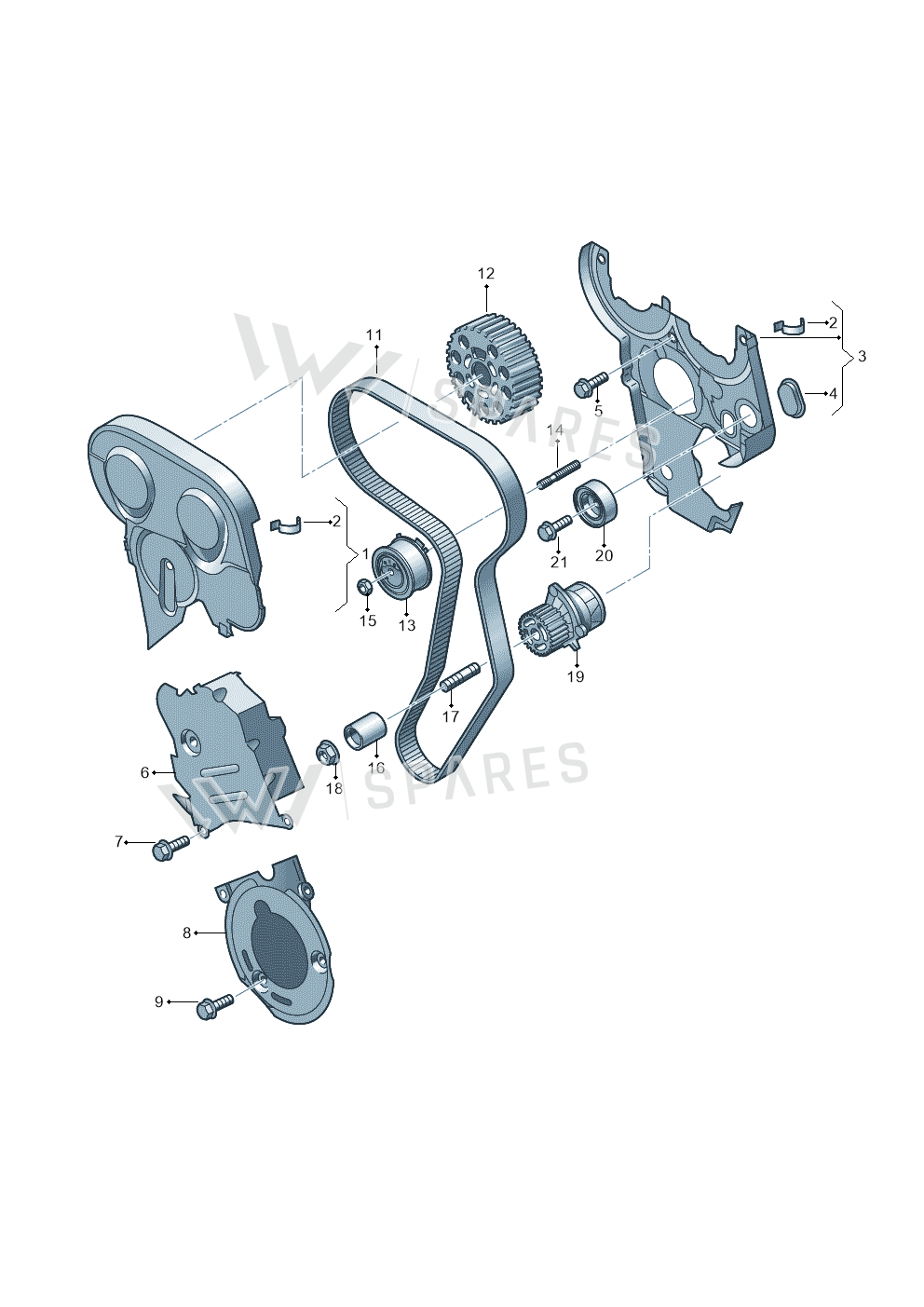

12 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Protection 03G109107A
- 1Protection 03G109107C
- 1Protection 045109107F
- 2Clip 026109150A
- 3Cover 03G109145A
- 3Cover 045109145H
- 4Bungs 038971904
- 5Bolt N10082912
- 6Protection 038109147D
- 6Protection 045109147A
- 8Protection 038109175
- 11Tooth Belt 038109119P
- 11Tooth Belt 03G109119
- 13Tens Roll 038109243M
- 13Tens Roll 03G109243
- 14Bolt N90905502
- 14Bolt 03G109459
- 15Collar Nut 038109454A
- 16Roller 038109244J
- 17Bolt N10444702
- 18Collar Nut N01508315
- 20Roller 03G109244A
- 20Roller 03G109244
- 21Bolt WHT000918
- 21Bolt N10237103
Vehicle fitment table12
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4/Av./qu. 05> | 2005- | 21 | 1 | DA6,DA7,D3X,MS9,D0M,D1A | |
| Audi A3/S3/quattro | 2005-2007 | 21 | 1 | BKD,AZV | D3X,MS9 |
| ALHAMBRA/4MOTION | 2002-2005 | 11 | |||
| ALHAMBRA/4MOTION | 2000-2002 | 11 | 2 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOL 2P/4P M.06> | 2005- | 13 | 2 | ||
| AUDI A3 "BR."M.06> | 2005-2006 | 22 | 1 | GOF,MQ7 | |
| GOL 2P/4P | 2002-2006 | 13 | |||
| PARATI 4P | 2002-2006 | 13 | |||
| GOL SPECIAL 2P | 2002-2005 | 13 | |||
| NOVA PARATI | 1995-2002 | 13 | |||
| NOVO GOL/SAVEIRO | 1994-2002 | 13 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 377 platform | 31 | 2 | 510 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Audi A4/S4/Av./qu. 05> 2005-; Audi A3/S3/quattro 2005-2007; ALHAMBRA/4MOTION 2002-2005; ALHAMBRA/4MOTION 2000-2002; GOL 2P/4P M.06> 2005-; AUDI A3 "BR."M.06> 2005-2006; GOL 2P/4P 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 377 platform.
