N10239002 Screw
- N10239002This pageNot stocked
Jun 2011 - N91052201Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

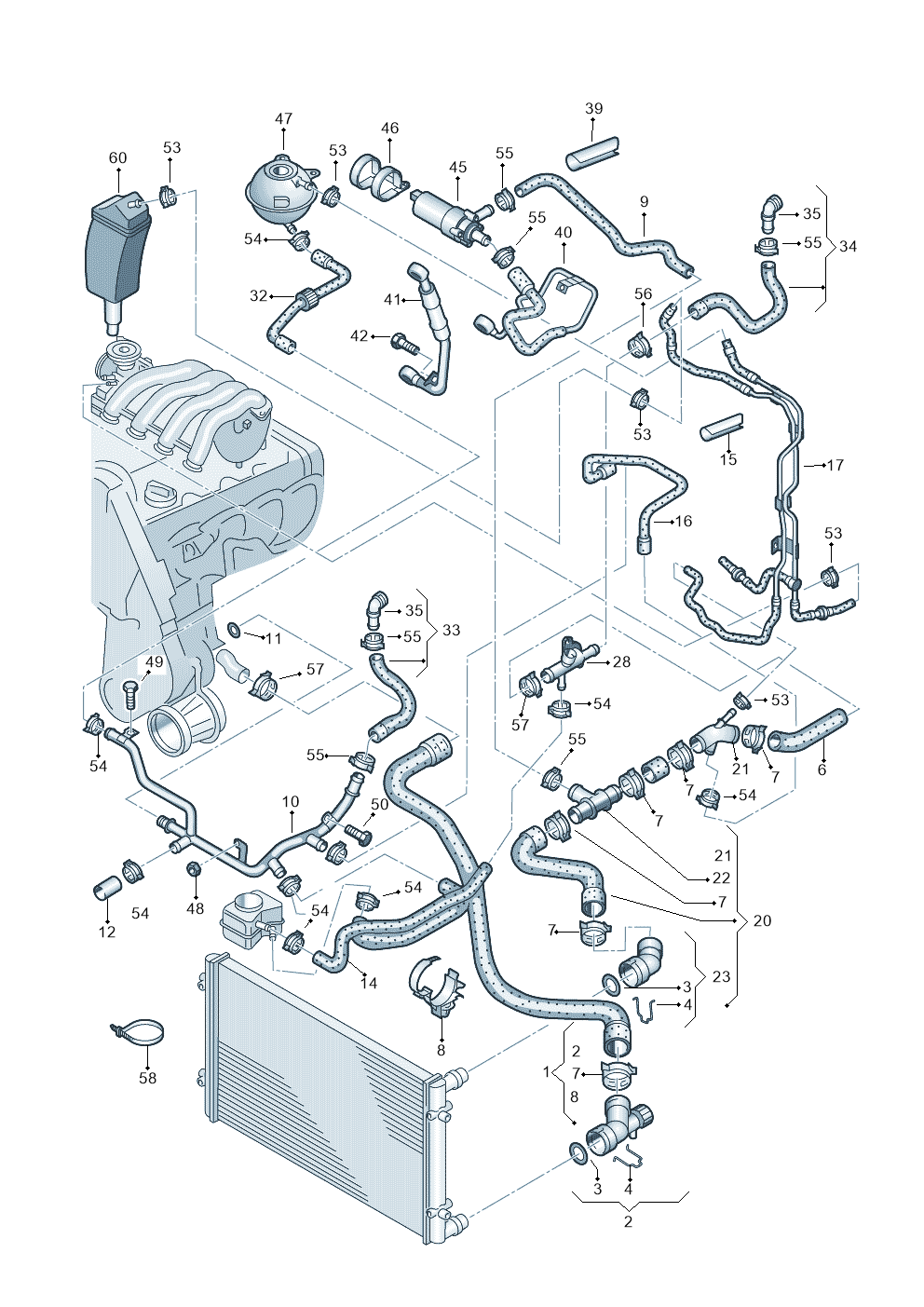

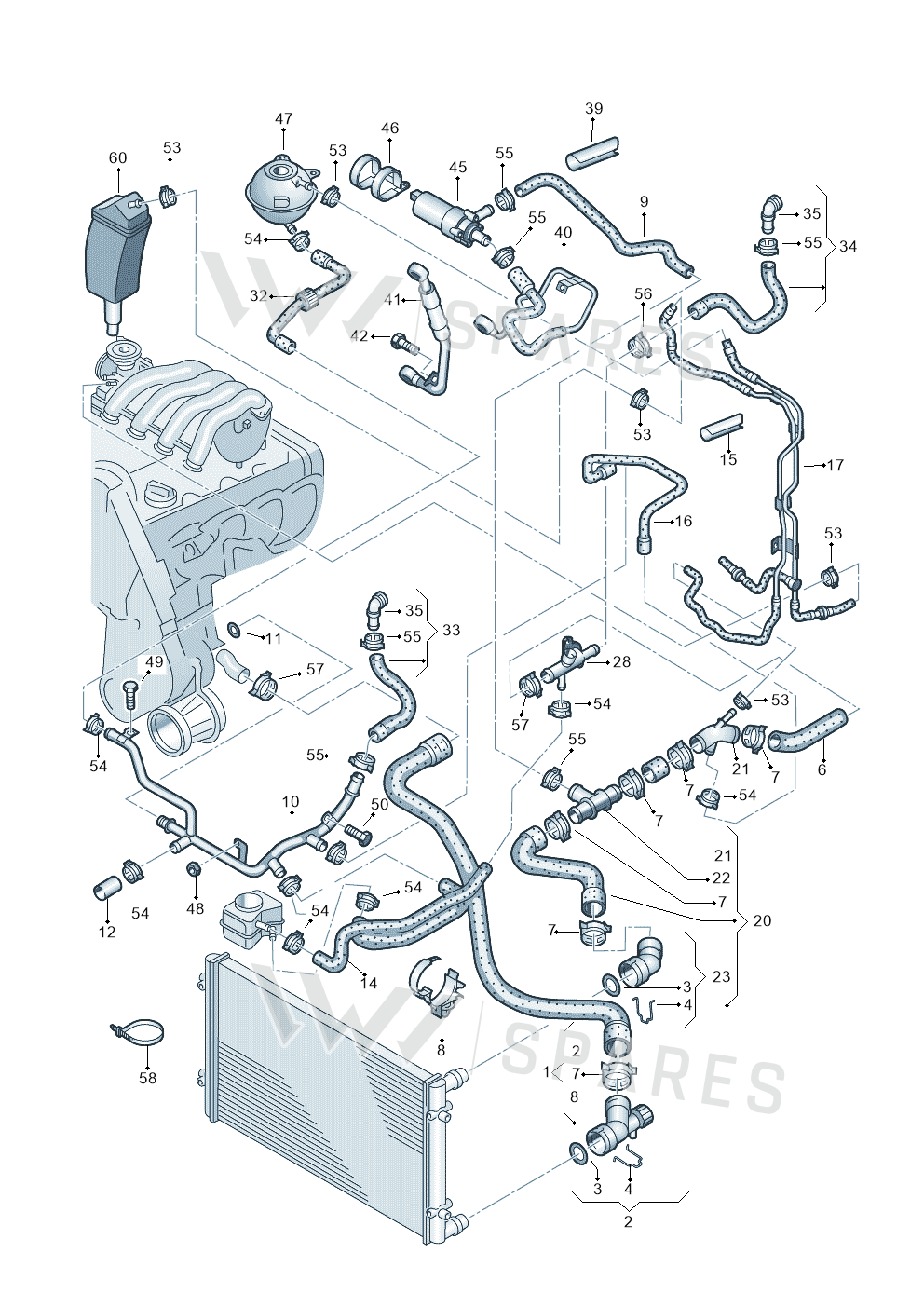

19 vehiclesScrew — locate Screw in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly36
- 1Hose 8N0121051E
- 2Coupl Piece 6Q0122291F
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 7Clamp N90687201
- 8Bracket 1J0121093C
- 9Hose 8L9121053A
- 10Water Pipe 06A121065BQ
- 11Seal Ring N90365302
- 12Part 078133335A
- 14Hose 8N0121088
- 15Heat Insul 8L9121653
- 16Hose 8L9121096C
- 17Part 1ML121086A
- 20Hose 8L9121101A
- 21Junction 1J0121087C
- 22Adapter N90692901
- 23Coupl Piece 1J0122291
- 33Part 8L9121073C
- 33Part 8L9121073D
- 34Part 8L9121157C
- 34Part 8L9121157D
- 35Coupl Piece 3B0122291B
- 39Heat Insul 8L9121655A
- 40Hose 06A121081F
- 41Part 06A121497P
- 42Screw N01470213
- 45Pump 078965561
- 46Bracket 8L9965551A
- 48Collar Nut N90175205
- 50Screw N0447273
- 53Clamp N90686701
- 54Clamp N90686902
- 55Clamp N90687001
- 56Clamp N90687101
- 58Cable Tie N0209022
Vehicle fitment table22
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| IBIZA 06> | 2005- | 49 | 1 | T16 |
| Jetta/Wagon | 2002-2006 | 44 | 1 | D6B |
| Audi TT Coupe/Roadster | 2002-2006 | 49, 19 | 1 | |
| SHARAN/4MOTION | 2002-2005 | 42 | 1 | |
| ALHAMBRA/4MOTION | 2002-2005 | 42 | 1 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 49, 44 | 1 | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 44 | 1 | D6B |
| Jetta Wagon 02 | 2001-2002 | 44 | 1 | D6B |
| AUDI A3/S3/QUATTRO | 2000-2003 | 49 | 1 | |
| SHARAN/4MOTION | 2000-2002 | 42 | 1 | |
| ALHAMBRA/4MOTION | 2000-2002 | 42 | 1 | |
| Audi TT Coupe/Roadster | 1999-2002 | 49 | 1 | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 49 | 1 | |
| OTTO-IND.-MOT. 77> | 1977- | 5 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 44, 49 | 1 | |
| Golf "BR.","USA"03>07 | 2002-2007 | 44 | 1 | MR0 |
| Jetta USA | 2001-2005 | 44 | 1 | |
| Golf BR/US | 2001-2002 | 44 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 1J0 platform | 49 |
Listed without a diagram position (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta Wagon | 2001-2001 | 1 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 1 | ||
| Golf | 1998-2000 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Screw is fitted on: IBIZA 06> 2005-; Jetta/Wagon 2002-2006; Audi TT Coupe/Roadster 2002-2006; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; AUDI A3/S3/QUATTRO 2000-2003; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; Audi TT Coupe/Roadster 1999-2002; AUDI A3/S3/QUATTRO 1996-2000; OTTO-IND.-MOT. 77> 1977-; Golf 'R32' n. "USA" 2004-2004; Golf "BR.","USA"03>07 2002-2007; Jetta USA 2001-2005; Golf BR/US 2001-2002; 1J0 platform.
