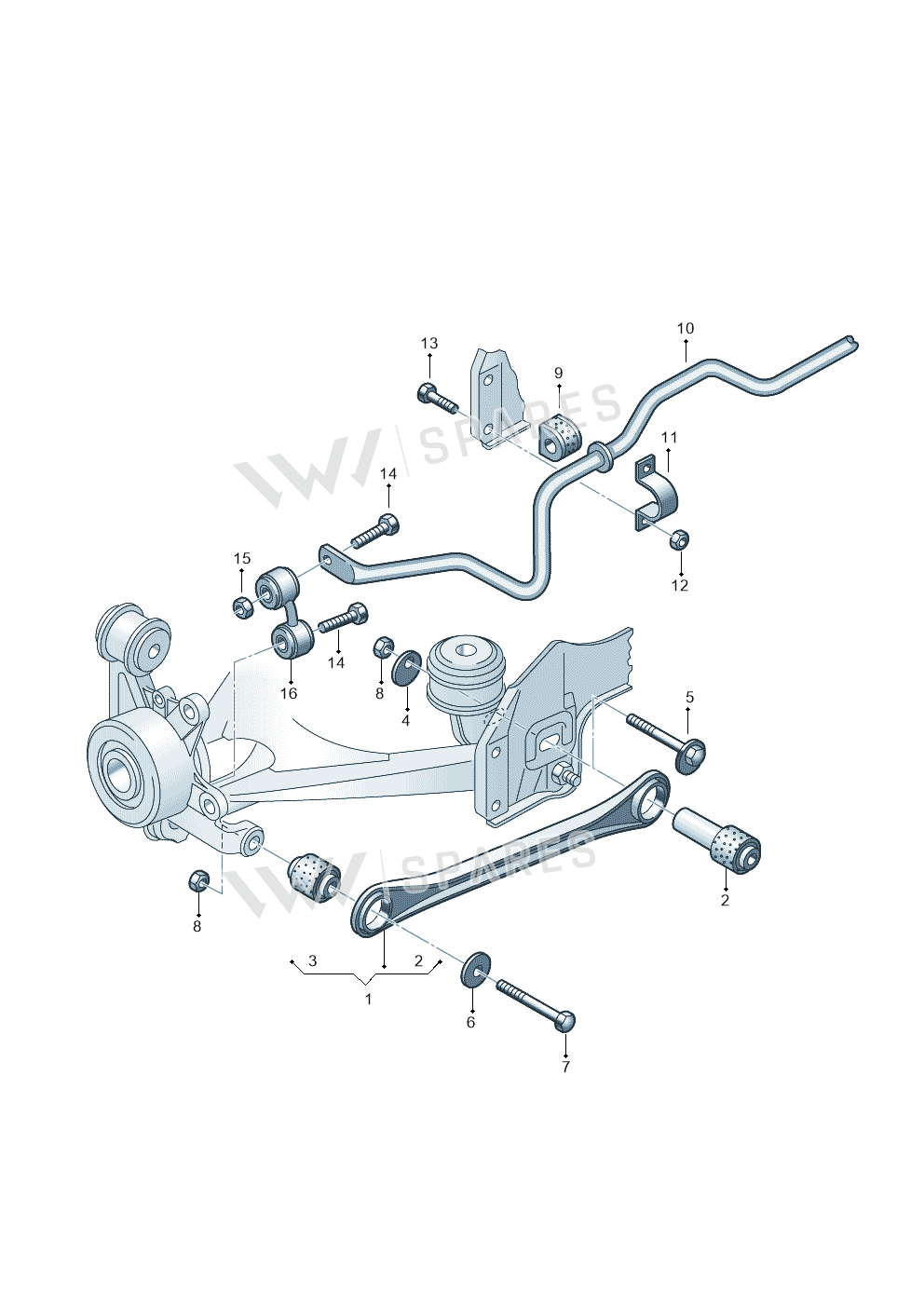

Hexagon Bolt exploded parts diagram — Audi A6/Wagon/quattro · 2001-2004, position 7
Exploded view
Audi A6/Wagon/quattro · 2001-2004 · position 7Full diagram ↓
N10241201

N10241201 Hexagon Bolt

£2.08
£1.72 excl. VAT
Supersession roadoldest to newest
  1. 4D0098020ABNot stocked
    Sep 1997
  2. N10241201This pageNot stocked
    Nov 2007
  3. N10241202Current number
Current part numberN10241202What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

17 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly12
Vehicle fitment table17

Europe (13)

VehicleYearsPos.QtyPR
Audi A6/Wagon/quattro2001-2004721X1
PASSAT 00>2000-432
Passat/4Motion/W82000-200215, 72D3
AUDI RS4 AV. QU.2000-200152
Audi A4/Av.qu.1999-2001202
Passat syncro/4Motion1998-200043, 72
Audi A6/Av.qu.F4B-W->1997-200172
Passat1997-2000432
Audi A4/Av.qu.F8D-W->1997-1998202
Audi A4 qu. F>8D-W-..1995-1997202
AUDI 80 Av.Rs2 qu.1994-1995202
Audi 90 qu. 951994-1995202
Audi 90 qu.1992-1994202

Other markets (3)

VehicleYearsPos.QtyPR
PASSAT LINGYU "CN."06>2005-432
AUDI A6L "CN"05>2005-721BK
AUDI A6L CHINA1999-2005432

Platform / generic diagrams (1)

VehicleYearsPos.QtyPR
3B0 platform15

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: Audi A6/Wagon/quattro 2001-2004; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; AUDI RS4 AV. QU. 2000-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4 qu. F>8D-W-.. 1995-1997; AUDI 80 Av.Rs2 qu. 1994-1995; Audi 90 qu. 95 1994-1995; Audi 90 qu. 1992-1994; PASSAT LINGYU "CN."06> 2005-; AUDI A6L "CN"05> 2005-; AUDI A6L CHINA 1999-2005; 3B0 platform.
