N10247503 Screw
- N10247503This pageNot stocked
May 2006 - N10247504Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

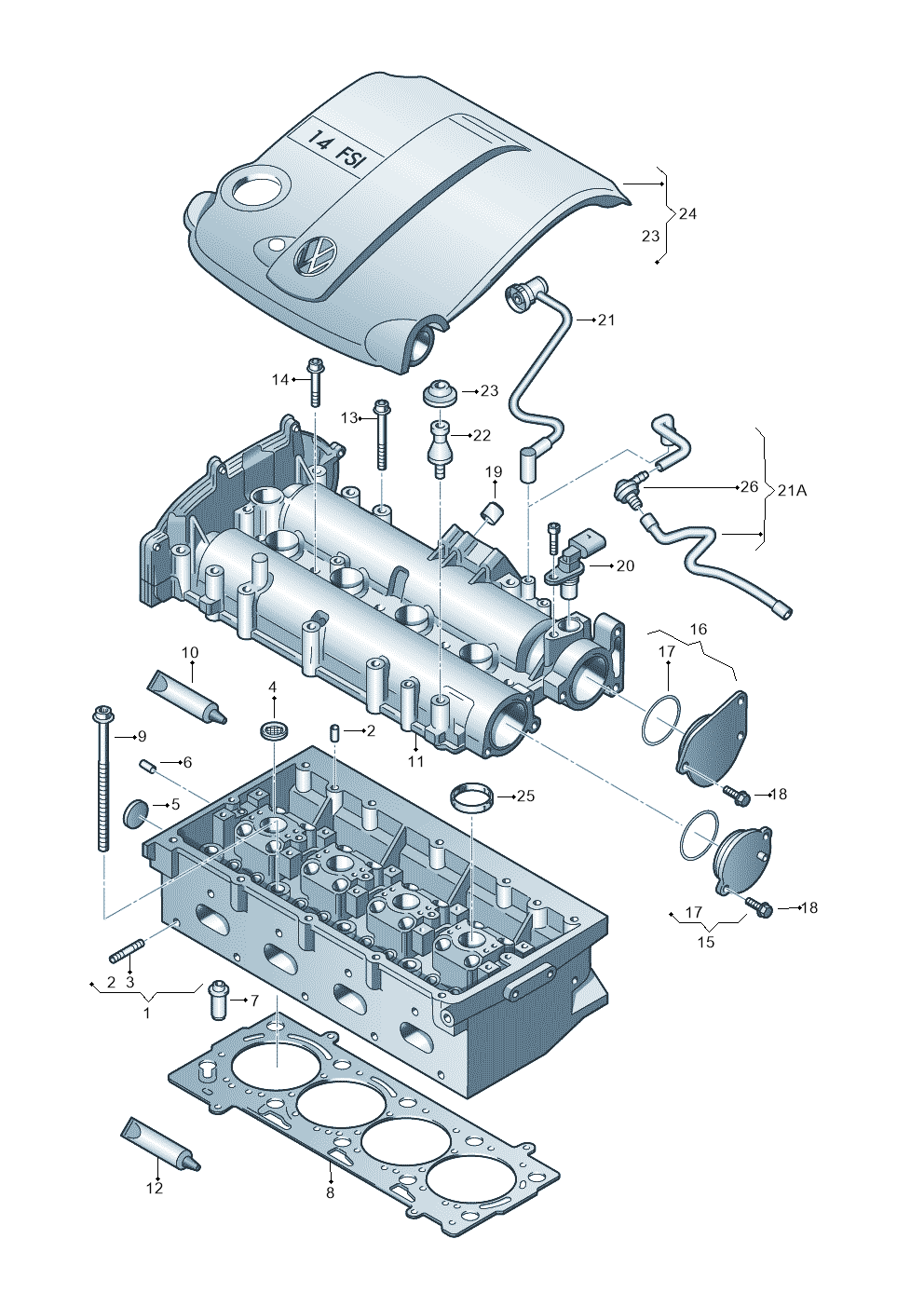

11 vehiclesScrew — locate Screw in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Cylinder Head 03C103063BA
- 1Cylinder Head 03C103063T
- 1Cylinder Head 03C103264X
- 2Part N0132102
- 3Bolt N10087802
- 4Strainer 036115175B
- 5Cover N01191410
- 6Bungs 056103379A
- 6Bungs 056103379
- 8Seal 03C103383D
- 9Screw 036103384B
- 10Sealant D188003A1
- 11Cover 03C103475AK
- 11Cover 03C103475J
- 12Sealant D154102A1
- 13Screw N10247504
- 14Screw N10300805
- 15Cover 036103111
- 16Cover 03C103111C
- 17Seal Ring N90344502
- 18Bolt N10082912
- 19Tappets 03C109309E
- 19Tappets 03C109309C
- 21Hose 03C103558
- 22Stud 036129846
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3/S3/quattro | 2005-2007 | 13 | 10 | T72 |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 15 | 11 | T1Q |
| Jetta Wagon 02 | 2001-2002 | 15 | 11 | T1Q |
| Jetta Wagon | 2001-2001 | 15 | 11 | |
| AUDI A2 | 2000-2005 | 15 | 11 | T1Q |
| POLO | 1999-2001 | 15 | 11 | |
| LUPO/3L TDI | 1998-2003 | 15 | 11 | |
| Golf | 1998-2000 | 15 | 11 | |
| POLO | 1994-1999 | 15 | 11 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| POLO CLASSIC "CN"03>06 | 2003-2006 | 15 | 11 | |
| POLO "CN"02>06 | 2002-2006 | 15 | 11 |
Diagrams & fitment data powered by oemdiagrams.com
Screw is fitted on: Audi A3/S3/quattro 2005-2007; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A2 2000-2005; POLO 1999-2001; LUPO/3L TDI 1998-2003; Golf 1998-2000; POLO 1994-1999; POLO CLASSIC "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006.
