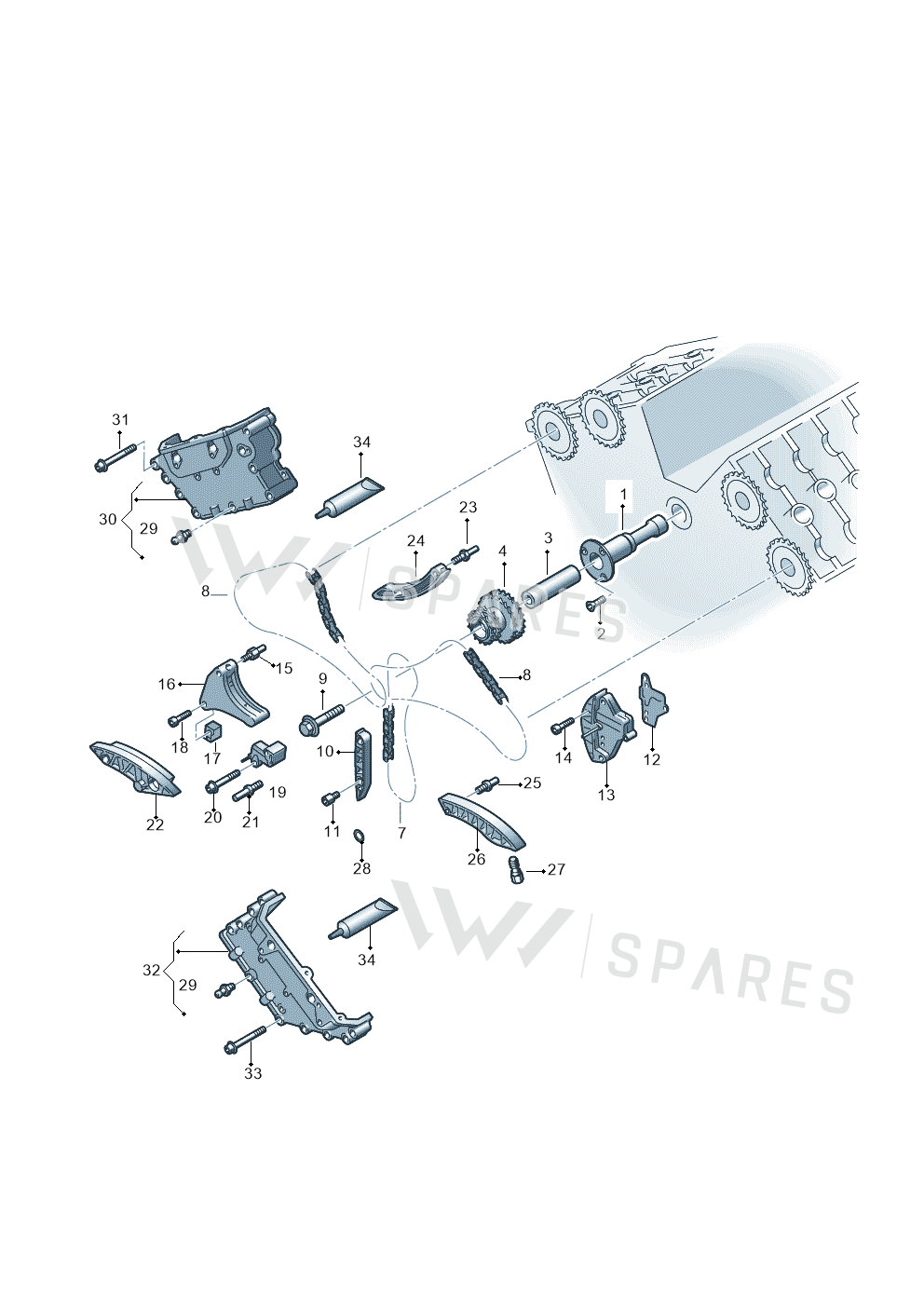

Socket Head Bolt exploded parts diagram — Touareg · 2003-2005, position 14 — Touareg · 2003-2005 · position 14Full diagram ↓

N10248802

N10248802 Socket Head Bolt

Name: N10248802 Socket Head Bolt
Brand: Volkswagen
SKU: N10248802
Price: 0.65 GBP
Availability: Discontinued

£0.65

£0.54 excl. VAT

Supersession roadoldest to newest

N10248802
Not stocked Oct 2007
You are here
N10248805
Current number

N10248802This pageNot stocked
Oct 2007
N10248805Current number

Current part numberN10248805What the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Socket Head Bolt — locate Socket Head Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly30

Vehicle fitment table3

Europe (3)

Vehicle	Years	Pos.	Qty	PR
Touareg	2003-2005	14	3	D0T
Passat/4Motion/W8	2000-2002	14	3	M3E
Audi A8 quattro	1999-2002	34	3
