N10323601 Threaded Pin
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

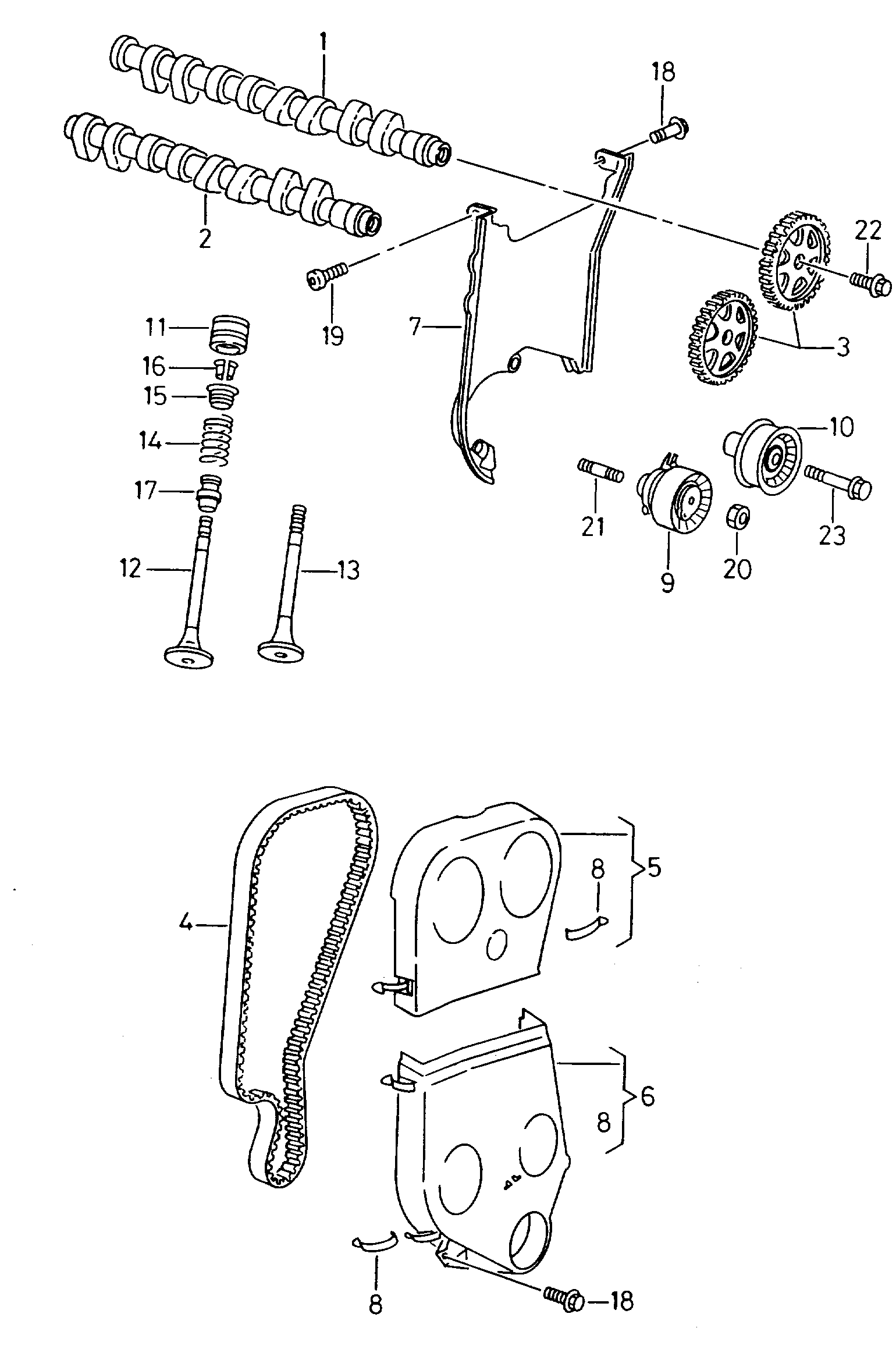

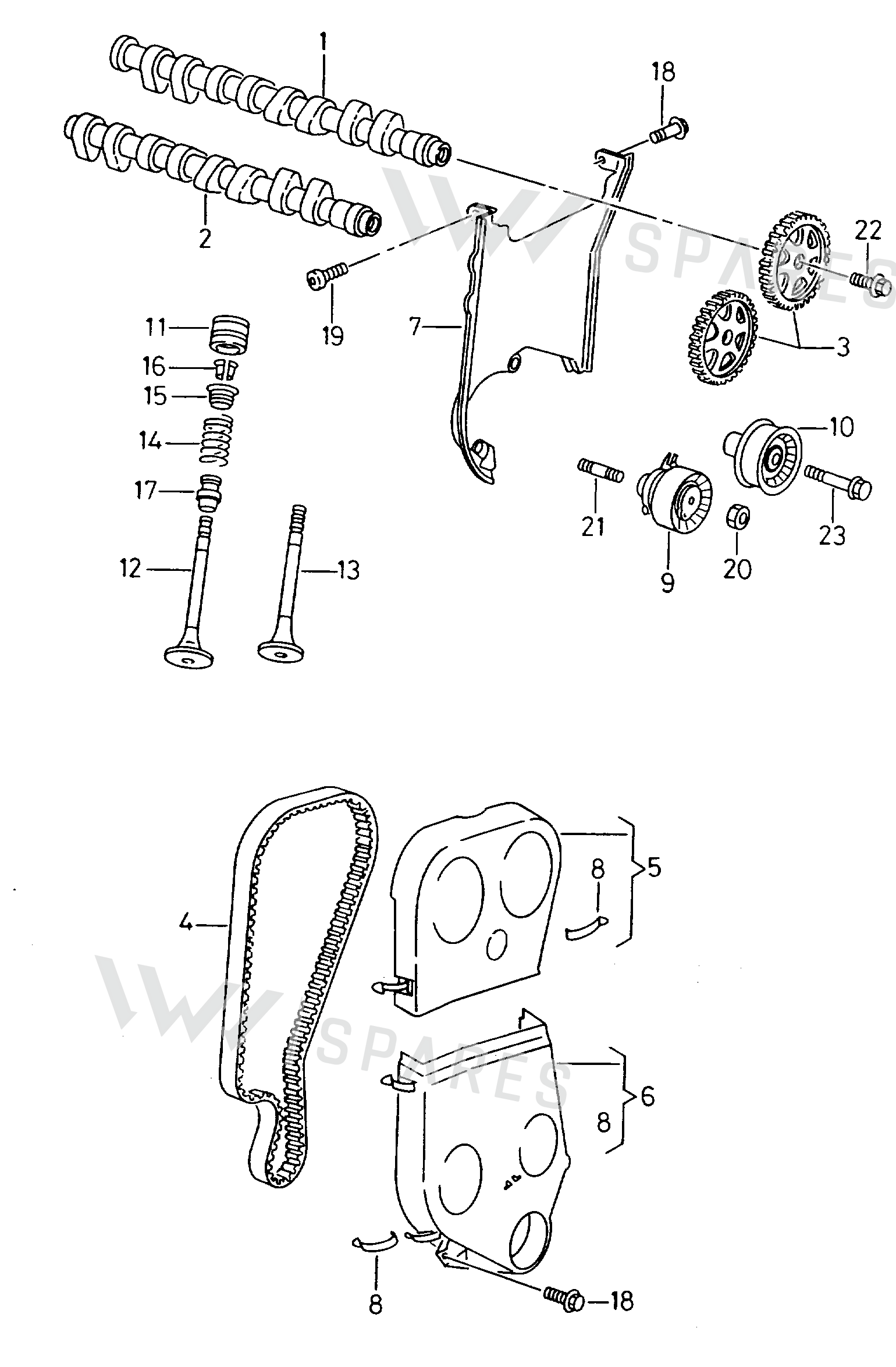

21 vehiclesThreaded Pin — locate Threaded Pin in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Camshaft 036109101BH
- 2Camshaft 036109101R
- 3Pulley 036109111
- 4Tooth Belt 036109119H
- 5Protection 036109121M
- 6Protection 036109127K
- 7Protection 036109143B
- 8Clip 026109150A
- 9Tens Roll 036109243J
- 10Roller 036109244
- 11Tappets 036109309F
- 12Valve 036109601AF
- 13Valve 036109611AA
- 14Spring 036109623G
- 15Springseat 036109641B
- 16Cotter Pin 036109651A
- 17Seal 036109675A
- 18Bolt N0102187
- 19Screw N0903151
- 20Ut Hexagon Nut Self-locking Hexagon Nut N90074404
- 22Bolt N90256202
Vehicle fitment table21
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| CORDOBA/VARIO | 1999-2002 | 21 | 1 | |
| IBIZA | 1999-2002 | 21 | 1 | |
| AROSA | 1997-2003 | 8 | 1 | AEX |
| CADDY PICKUP | 1996-2000 | 16 | 1 | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 8 | 1 | |
| GOLF VAR./VENTO | 1996-1999 | 8 | 1 | AEX,AEE |
| POLO CLASSIC/VARIANT | 1996-1999 | 8 | 1 | AEX,AKV,APQ, |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 8 | 1 | AEX,AKV,APQ, |
| Golf | 1996-1997 | 8 | 1 | |
| CADDY-KOMBI/KASTEN | 1995-2003 | 8 | 1 | |
| INCA (SEAT-VAN) | 1995-2003 | 8 | 1 | |
| PICK UP | 1995-2001 | 16 | 1 | |
| Polo Classic 96 | 1995-1996 | 8 | 1 | |
| Golf 96 | 1995-1996 | 8 | 1 | |
| Golf Var./Vento 96 | 1995-1996 | 8 | 1 | |
| FELICIA | 1994-2001 | 16 | 1 | |
| POLO | 1994-1999 | 8 | 1 | AEV,ADX,AEX, |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 8 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| NOVA PARATI | 1995-2002 | 21 | 1 | |
| NOVO GOL/SAVEIRO | 1994-2002 | 19, 21 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 377 platform | 19 | 1 | 510 |
Diagrams & fitment data powered by oemdiagrams.com
Threaded Pin is fitted on: CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; AROSA 1997-2003; CADDY PICKUP 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; PICK UP 1995-2001; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; FELICIA 1994-2001; POLO 1994-1999; Ibiza/Cordoba (SEAT) 1992-1996; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 377 platform.
