Product overview
Genuine OEM Volkswagen Hex Collared Bolt, part number N10404306. This bolt is designed with a hexagonal head and a collar to provide secure and stable mounting for various automotive parts. Its specific dimensions ensure proper fitment within the assembly. Genuine OEM bolts offer precise manufacturing tolerances and material strength, crucial for load-bearing applications and preventing component damage.
Catalogue entry: BOLT M10X30 ×2.
Technical details
- Category
- Suspension
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4 × 2.2 × 2.2 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M10x30 mm
Equipment codes
- 1Y4
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

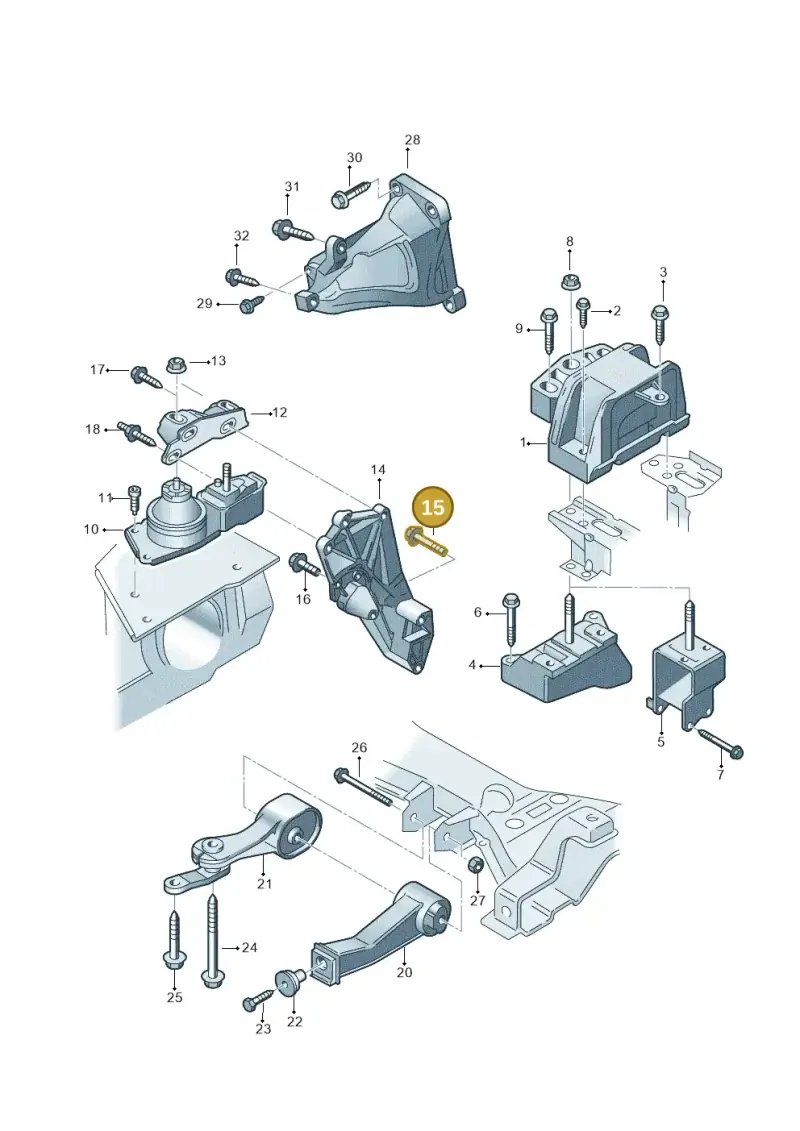

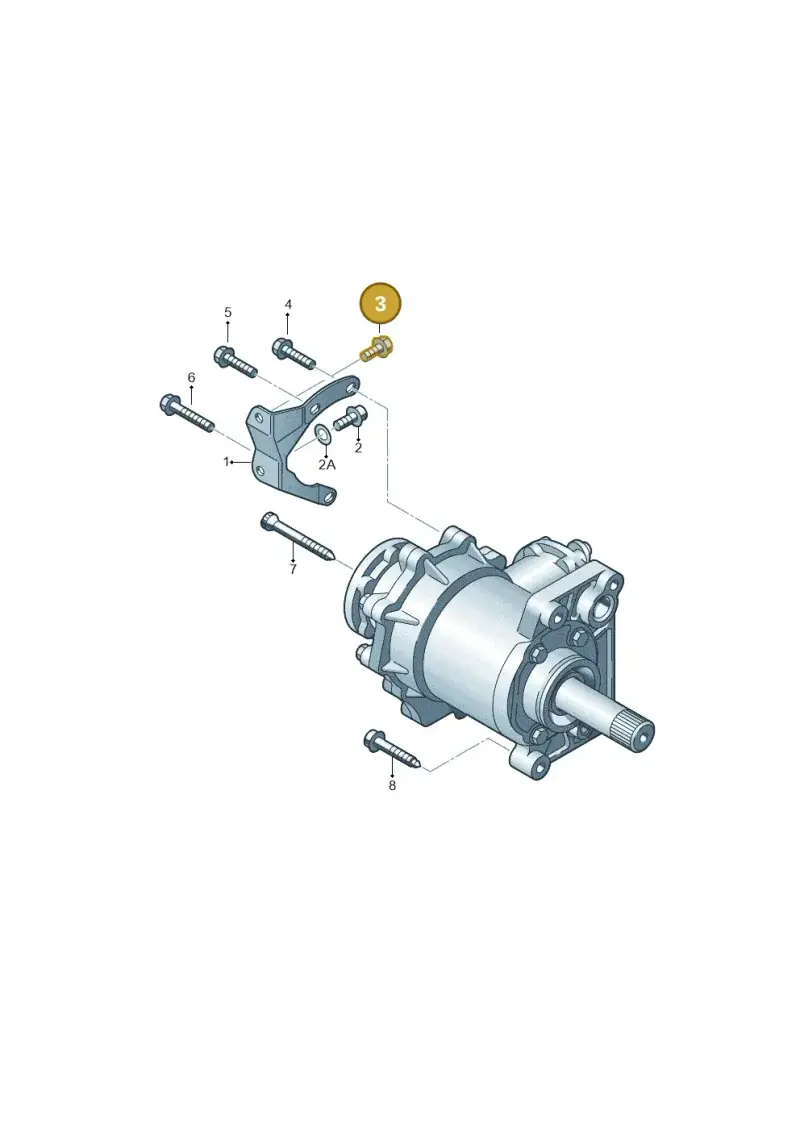

42 vehiclesHex Collared Bolt — locate N10404306 Volkswagen Hex Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly22
- 3Flanshaft 02W525355
- 3Flanshaft 02W525355A
- 4Flanshaft 02W525356B
- 4Flanshaft 02W525356C
- 5Seal 02D525596F
- 6Seal 02D525275L
- 7Circlip 012409413
- 8Screw 087409360
- 9Bolt N10404402
- 10Bolt N90281802
- 10APart N91082701
- 13Bracket 09N525733A
- 19Element 02W525641A
- 20Bolt N10430103
- 21Plate 02W525653A
- 23ClevisRightN0205402
- 24Washer N0115125
- 25Part N01100412
- 26Bellows 02D525279
- 27Part WHT006091
- 28Ret Washer N0123243
- 30Seal Greas G052128A1
Vehicle fitment table42
Europe (41)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|

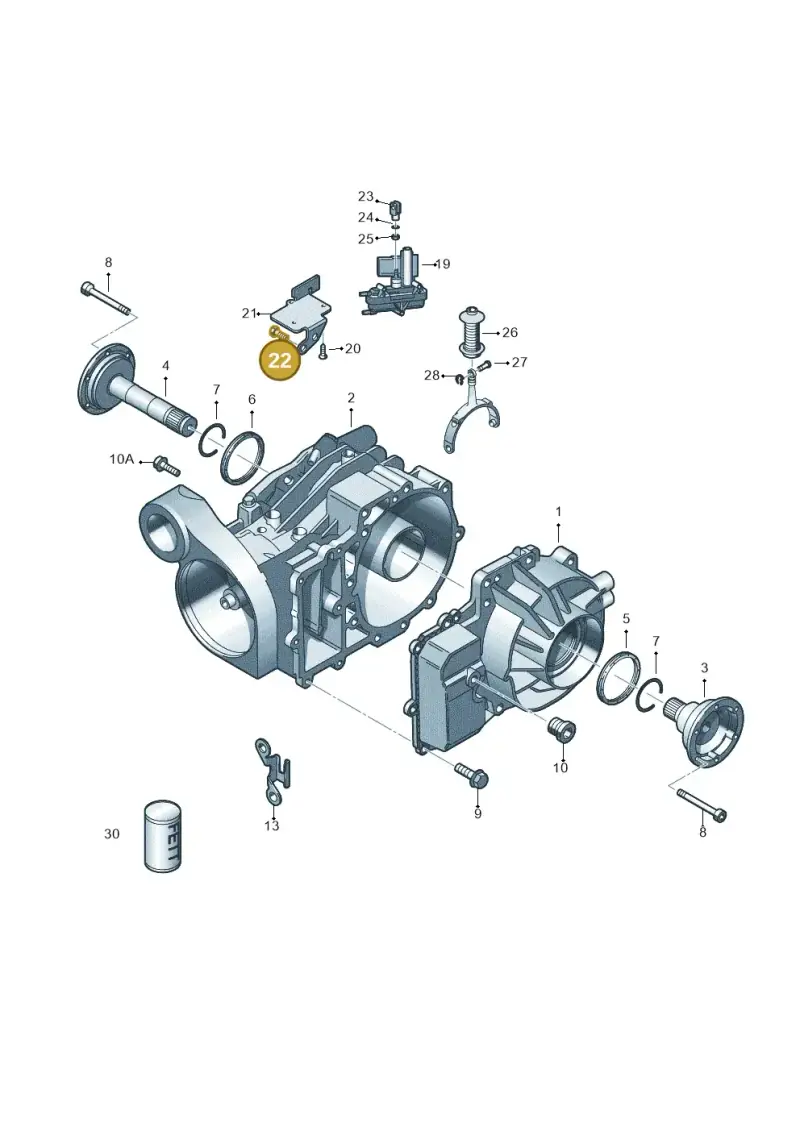

| transport. multivan | 2019-2024 | 22 | 2 | 1Y4 | |
| caravelle | 2019-2024 | 22 | 2 | 1Y4 | |
| Single-cab transp. | 2019-2024 | 22 | 2 | 1Y4 | |
| caravelle | 2015-2019 | 22 | 2 | 1Y4 | |
| Single-cab transp. | 2015-2019 | 22 | 2 | 1Y4 | |
| California Camper | 2015-2019 | 22 | 2 | 1Y4 | |

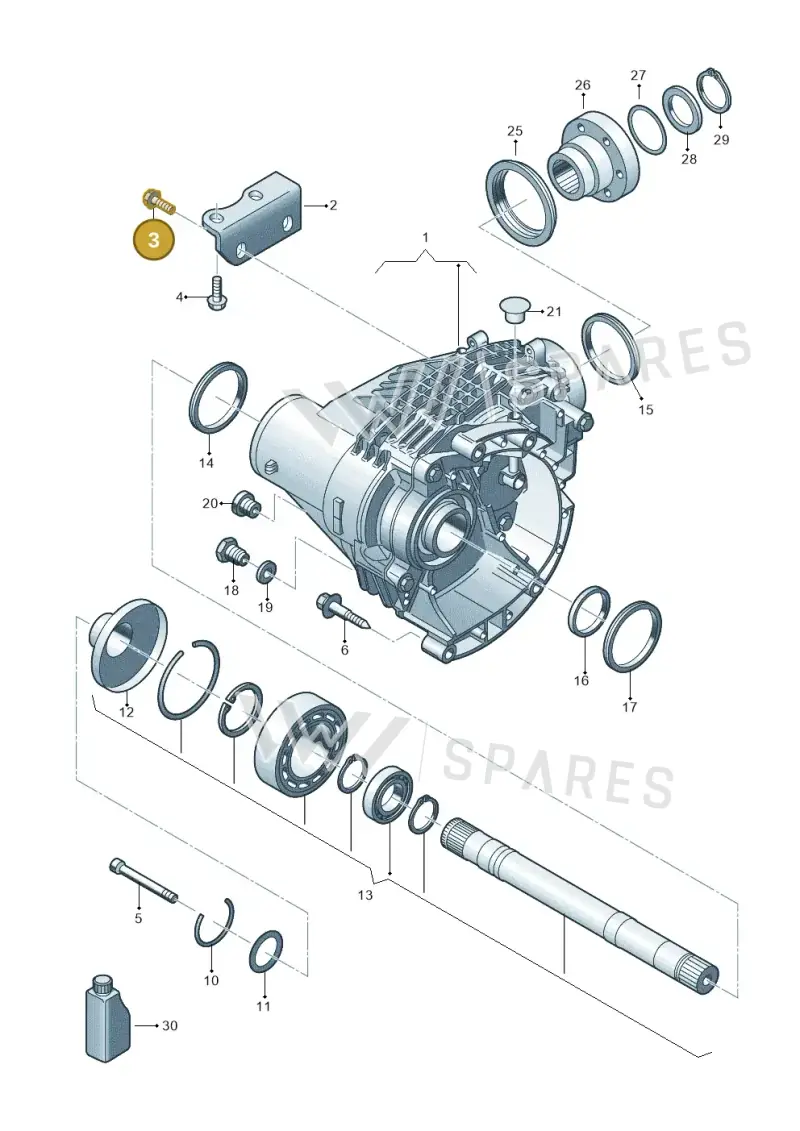

| transp. caravelle | 2011-2015 | 3, 22 | 2 | ||
| transp. dropside | 2011-2015 | 3, 22 | 2 | ||
| California Camper | 2011-2015 | 3, 22 | 2 | ||

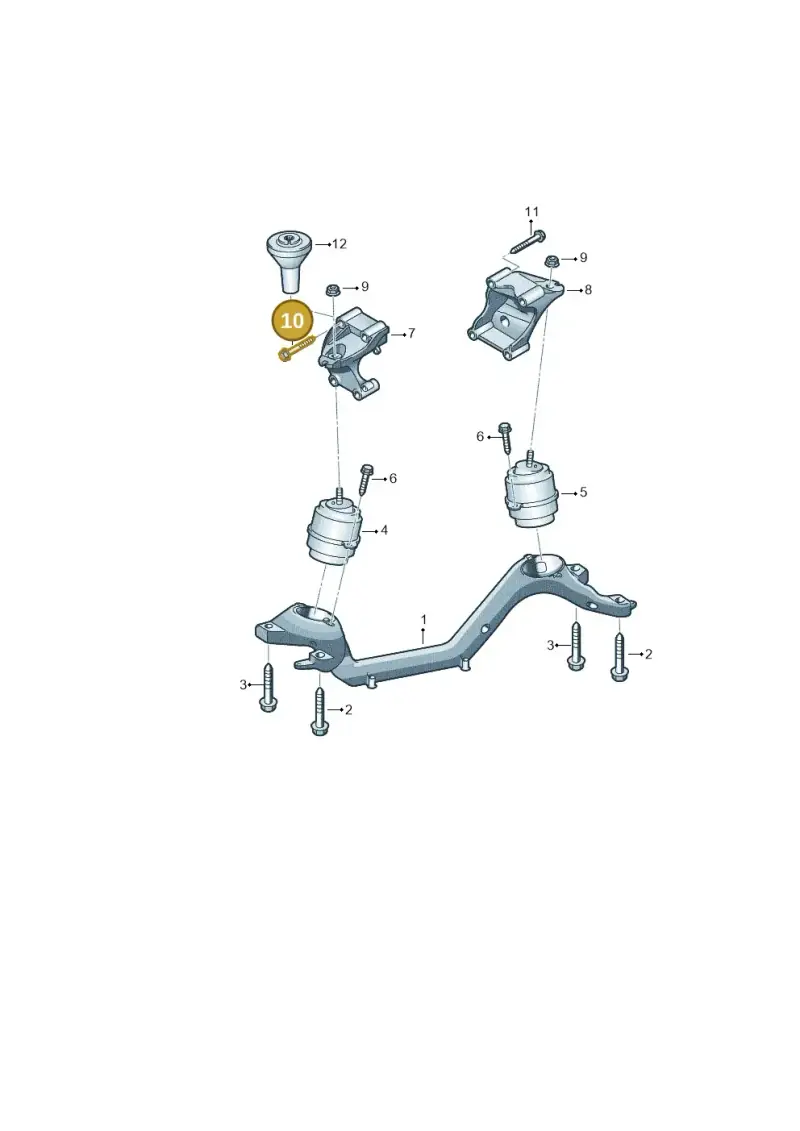

| Audi Q7 qu. 3.0 TDI | 2009-2015 | 10 | 3 | TE1 | |
| transp. caravelle | 2009-2011 | 3, 22 | 2 | G0L | |
| transp. dropside | 2009-2011 | 3, 22 | 2 | G0L | |
| California Camper | 2009-2011 | 3, 22 | 2 | ||

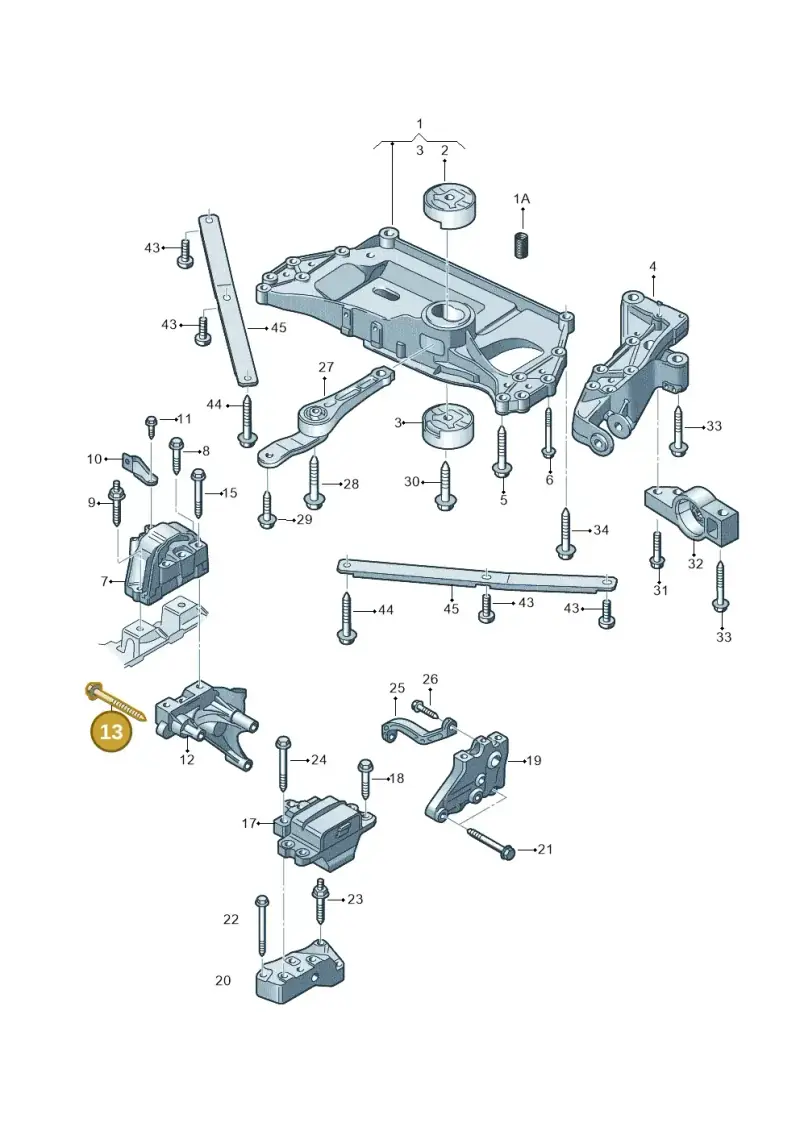

| Audi A3 Sportback | 2008-2013 | 13 | 3 | G0R | |
| passat estate | 2008-2011 | 3 | 1 | G0L | |
| Sharan | 2008-2010 | 15 | 3 | AYL | |

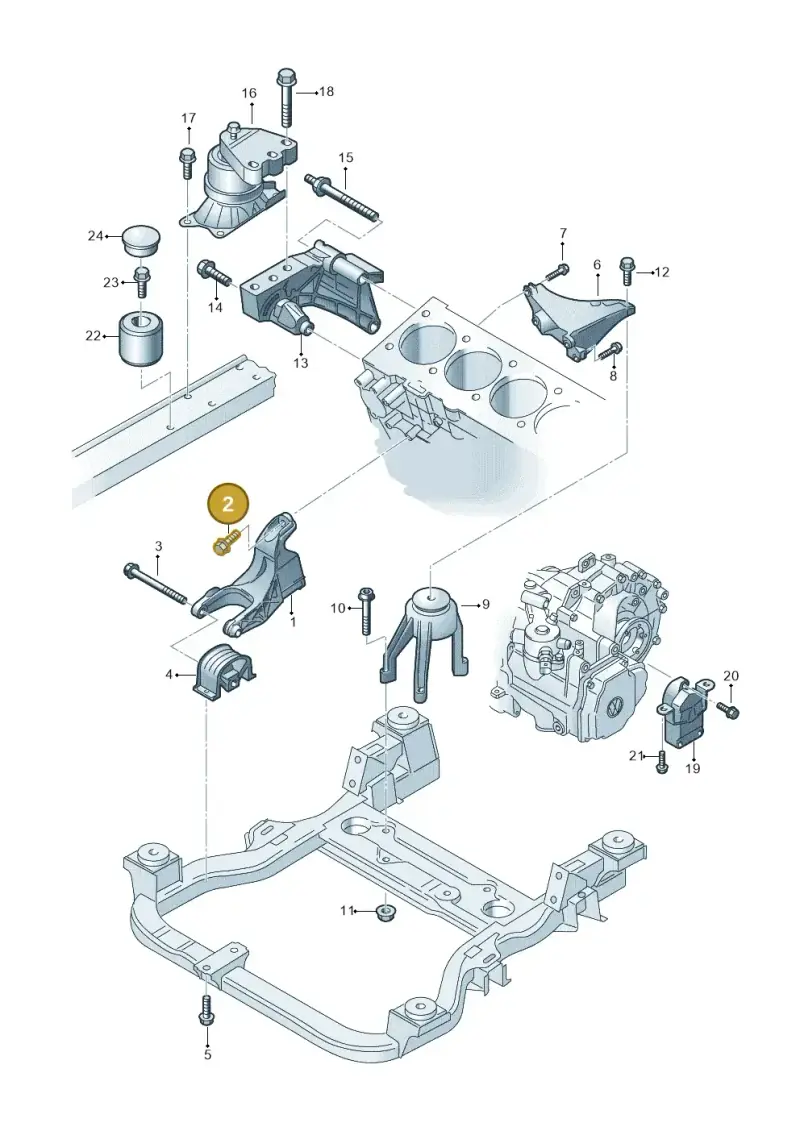

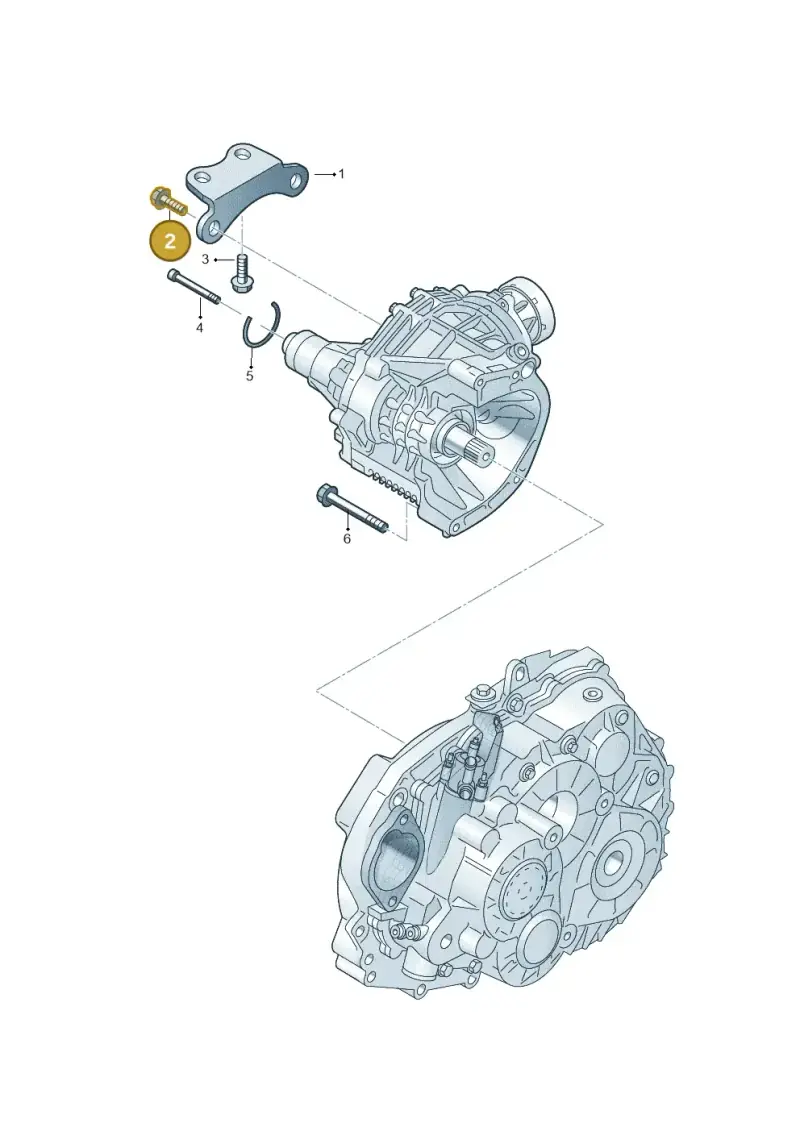

| transp. caravelle | 2008-2009 | 2 | 3 | BKK,CFLA | |
| transp. dropside | 2008-2009 | 2 | 3 | BDL | |
| California Camper | 2008-2009 | 2 | 3 | T21 | |
| Touareg 08> | 2007- | 10 | 3 | S,B | |

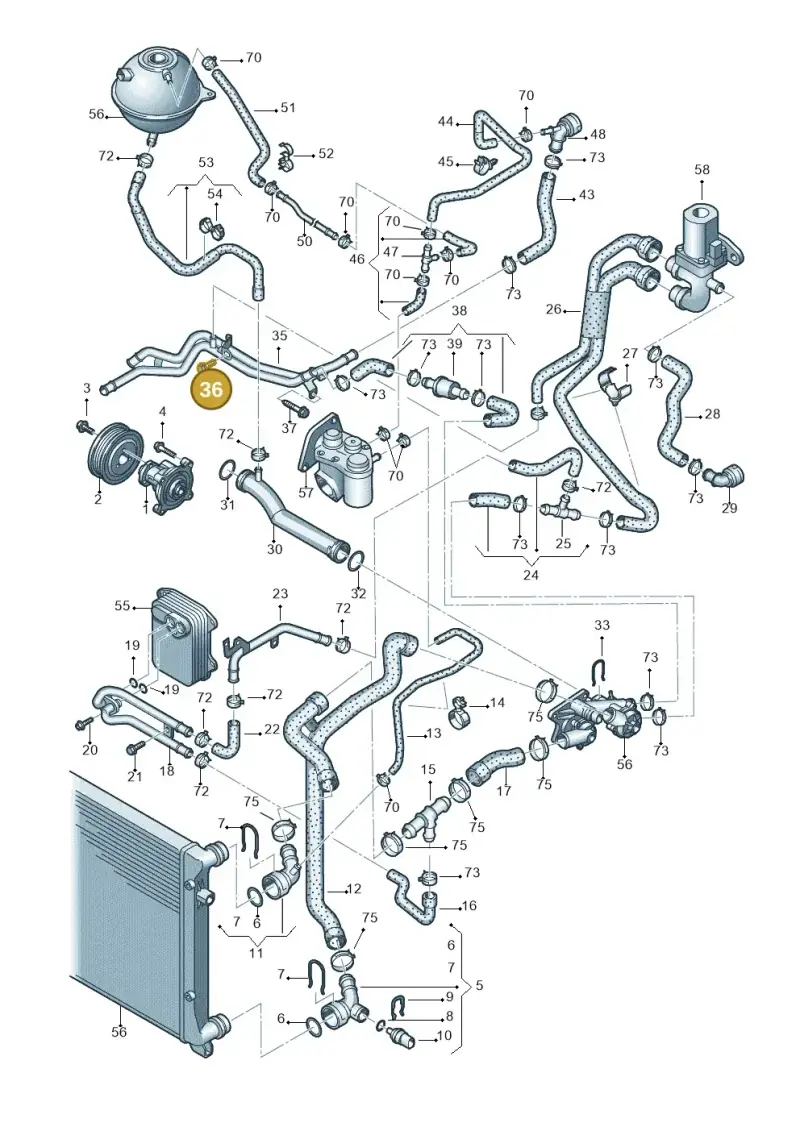

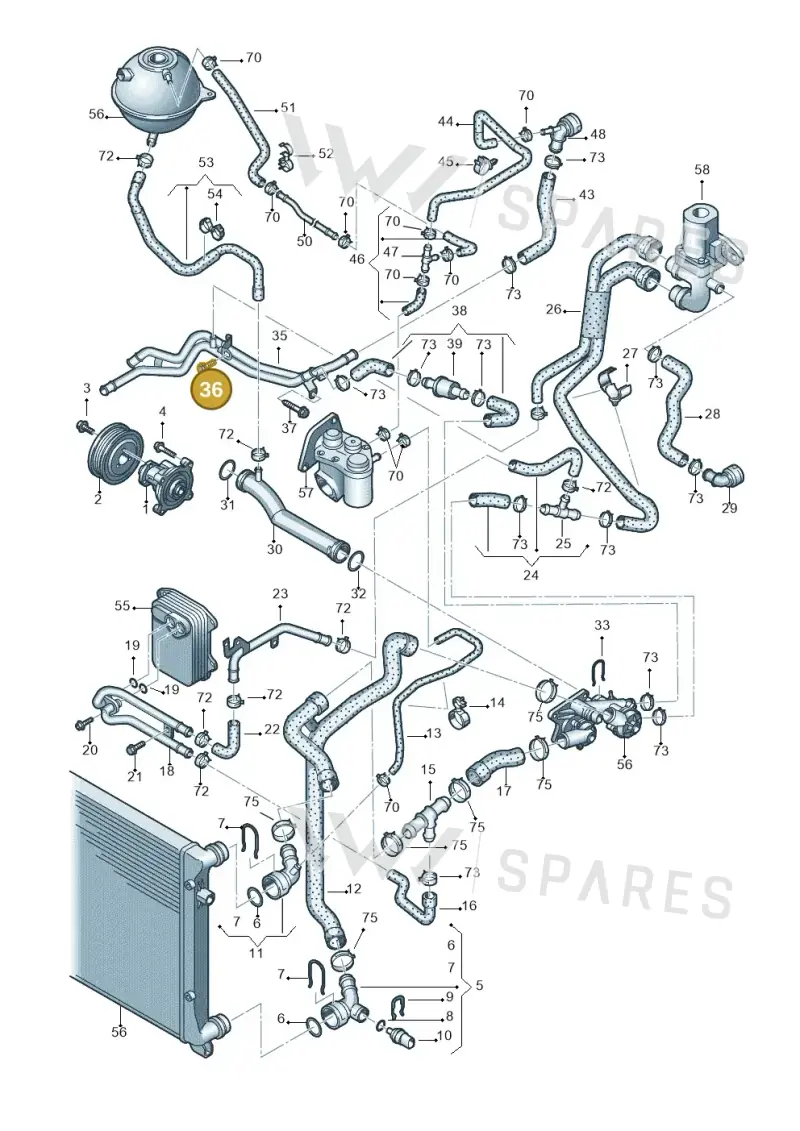

| GOLF PLUS 08> | 2007- | 36 | 1 | T72 | |
| Passat/4Motion 08 | 2007- | 3 | 1 | ||
| TRANSPORTER GESCHL. 08 | 2007- | 14, 2, 32 | 3 | BKK | |
| TRANSPORTER OFFEN 08 | 2007- | 14, 2 | 3 | BDL | |
| CAMPMOBIL-T5 08 | 2007- | 2, 32 | 2 | ||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 13 | 3 | ||
| Cayenne | 2007-2010 | 6 | 6 | ||
| EOS-Cabriolet-Coupe | 2006- | 36, 13 | 1 | D4K | |
| TOURAN | 2006- | 36 | 1 | D4K | |
| Audi Q7 07> | 2006- | 10 | 3 | ||
| Alhambra | 2006-2010 | 15 | 3 | AYL | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 14, 2, 32 | 3 | BKK | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 14, 32 | 3 | BDL | |
| CAMPMOBIL (T5) 07 | 2006-2007 | 32 | 2 | G0L,1Y4 | |
| GOLF PLUS 05> | 2005- | 36 | 1 | 9M9 | |
| SHARAN/4MOTION | 2005- | 15 | 3 | AYL | MC0 |
| JETTA 06> | 2005- | 36 | 1 | D4K,T72 | |
| ALHAMBRA/4MOTION | 2005- | 15 | 3 | AYL | |
| Passat/4Motion | 2005-2007 | 13 | 3 | AXZ | T35 |
| Touareg | 2005-2006 | 11 | 3 | BKS,BUN | T41 |
| OCTAVIA/COMBI/4X4 04> | 2004- | 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 36, 3 | 1 | D4K |
