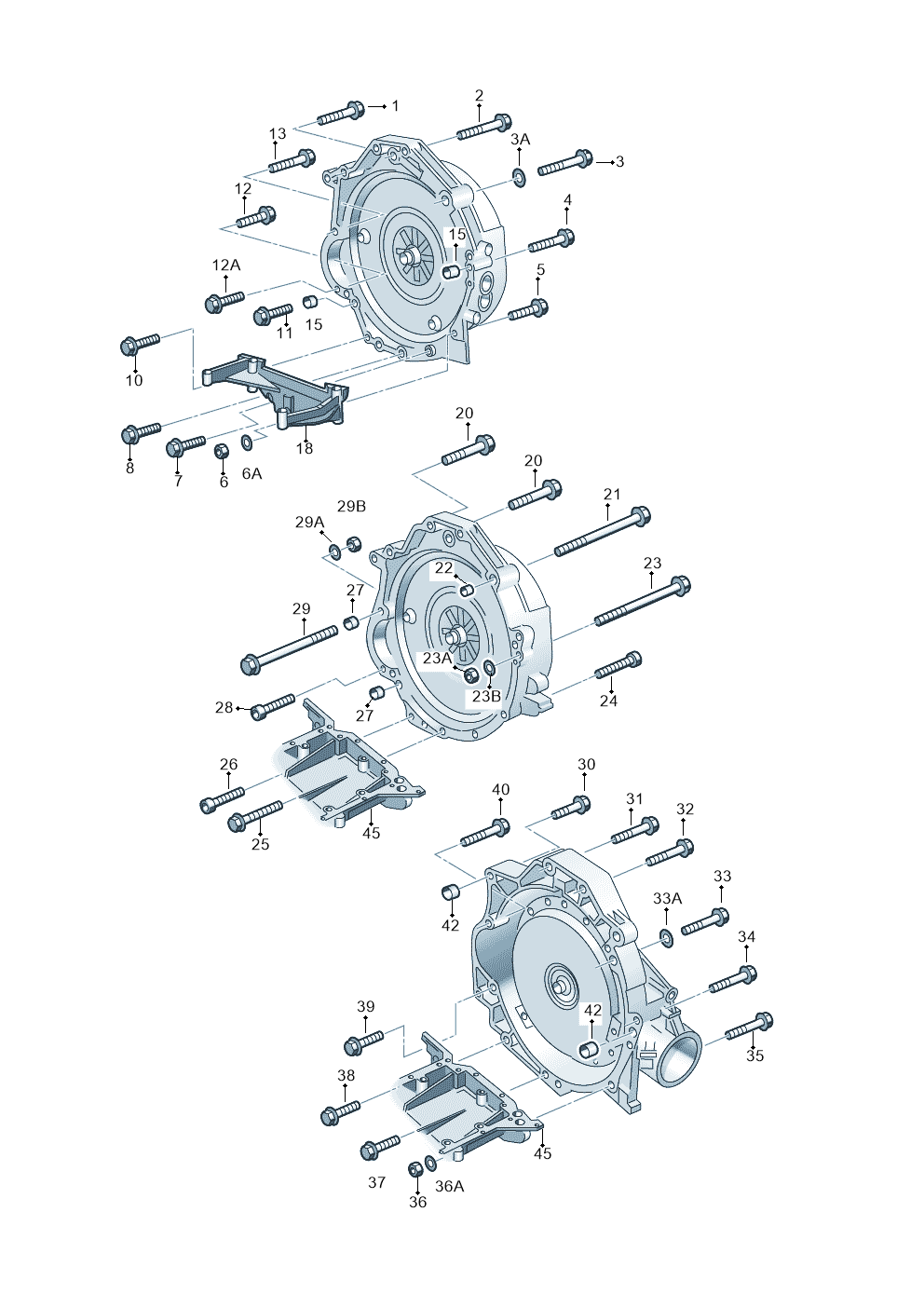

Hex Collared Bolt exploded parts diagram — SUPERB 02> · 2001-, position 39
Exploded view
SUPERB 02> · 2001- · position 39Full diagram ↓
N10406201

N10406201 Hex Collared Bolt

£4.51
£3.73 excl. VAT
Supersession roadoldest to newest
  1. N10185902Not stocked
    Jul 1998
  2. N10406201This pageNot stocked
    Oct 2005
  3. N10406203Current number
Current part numberN10406203What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

17 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly7
Vehicle fitment table17

Europe (15)

VehicleYearsPos.QtyRemarkPR
SUPERB 02>2001-391
PASSAT 00>2000-39, 111G0F
Passat/4Motion/W82000-2002541G0C
Audi A8 quattro1999-200213, 22, 241
AUDI A81998-200213, 22, 241
Audi A4/Avant F8D-W->1997-199839, 29, 111
Audi A4/Av.qu.F8D-W->1997-199839, 11, 221
LT, LT 4X41996-200325, 374
Audi A81996-19989, 13, 111
Audi A8 qu.1996-19989, 13, 111
Audi A4 F>8D-W-..1995-199739, 111
Audi A4 qu. F>8D-W-..1995-199739, 111
Audi Coupe/31994-1995161CLN,CLP,DFL,
Audi Cabrio.1993-199816, 321CLN,CLP,DFL,
Audi 901993-1995161CLN,CLP,DFL,

Other markets (2)

VehicleYearsPos.QtyRemarkPR
PASSAT LINGYU "CN."06>2005-39, 111G0F
AUDI A6L CHINA1999-2005221

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: SUPERB 02> 2001-; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; LT, LT 4X4 1996-2003; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi Coupe/3 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; PASSAT LINGYU "CN."06> 2005-; AUDI A6L CHINA 1999-2005.
