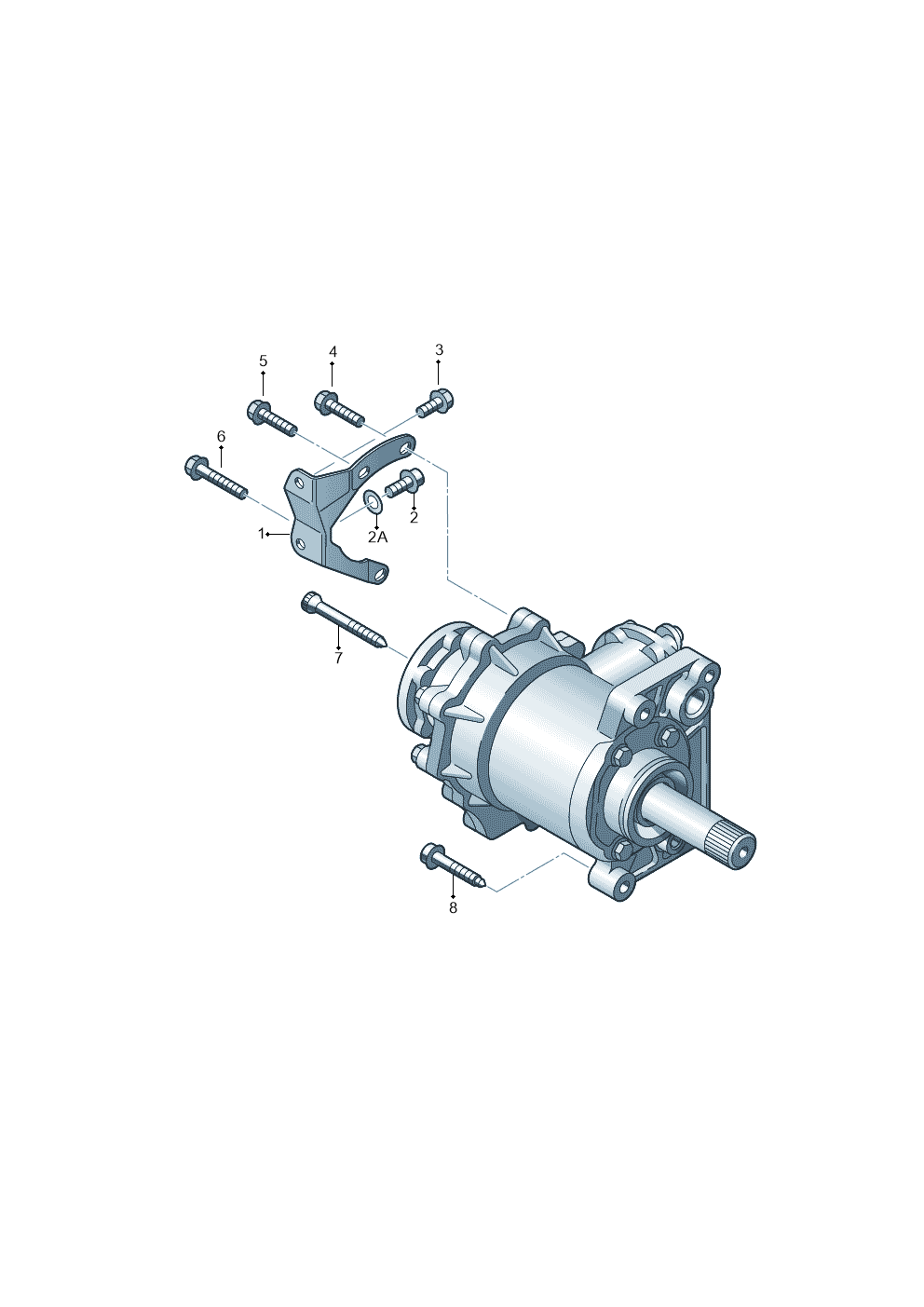

Hex Collared Bolt exploded parts diagram — ALTEA 07> · 2006-, position 6
Exploded view
ALTEA 07> · 2006- · position 6Full diagram ↓
N10425301

N10425301 Hex Collared Bolt

£1.52
£1.26 excl. VAT
Supersession road5 numbers since 1995
  1. 4D0411317DNot stocked
    Jul 1995
  2. 4D0411317GNot stocked
    Jun 1995
  3. 4D0411317JNot stocked
    Jan 1999
  4. N10425301This pageNot stocked
    Nov 2008
  5. N10425302Current number
Current part numberN10425302What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

14 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly7
Vehicle fitment table14

Europe (8)

VehicleYearsPos.QtyPR
ALTEA 07>2006-61
Touareg2003-200512, 7A40AG
Cayenne2002-20064
PASSAT/4MOTION/W82002-20051681X0
PASSAT 00>2000-164
Passat/4Motion/W82000-2002168
Passat syncro/4Motion1998-2000514
Passat1997-2000514

Other markets (4)

VehicleYearsPos.QtyPR
PASSAT LINGYU "CN."06>2005-164
AUDI A4 "CN."06>2005-16A4
AUDI A4/AV./QU. "CN"03>052003-200516A4
AUDI A6L CHINA1999-2005164

Platform / generic diagrams (2)

VehicleYearsPos.QtyPR
3B0 platform16
7L6 platform3A4

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: ALTEA 07> 2006-; Touareg 2003-2005; Cayenne 2002-2006; PASSAT/4MOTION/W8 2002-2005; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; PASSAT LINGYU "CN."06> 2005-; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; AUDI A6L CHINA 1999-2005; 3B0 platform; 7L6 platform.
