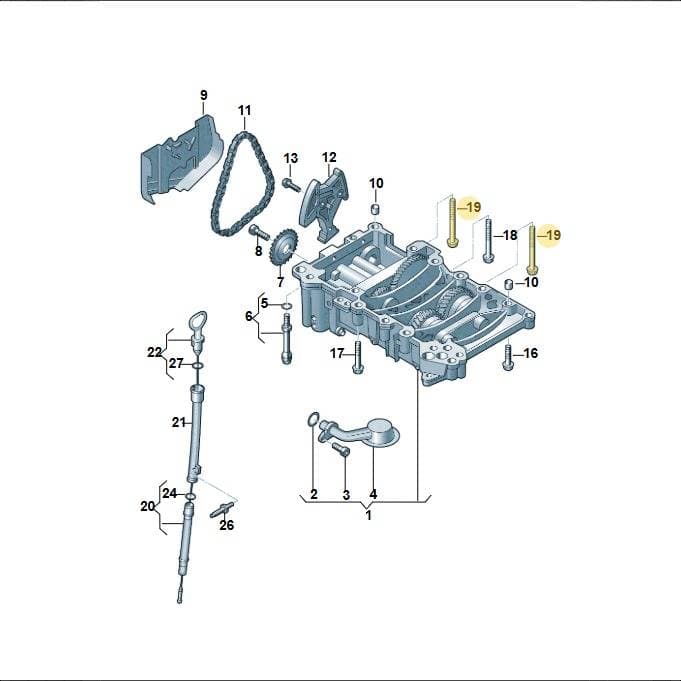

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Bolt, part number N10430502. This bolt features a hexagonal head, used for fastening in automotive applications. The diagram indicates this part is at position 19. Genuine OEM bolts provide the correct thread pitch and material strength for secure and reliable fastening.
Technical details
- Category
- Body Interior
- Country of origin
- Germany
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.8 × 1.6 × 1.6 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
34 vehiclesHexagon Bolt — locate N10430502 Volkswagen Hexagon Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Module 06F103295P
- 1AModule 06D103295S
- 2Seal Ring N0282222
- 3Screw N10653601
- 4Pipe 06F115251A
- 5Seal Ring N90777301
- 6Bolt WHT000360A
- 7Chn Sprckt 06B115121
- 8Bolt N90365901
- 9Prot Plate 06D103340
- 9Prot Plate 06A103340
- 10Sleeve N90820801
- 11Chain 06F115230
- 12Tensioner 06B115130C
- 13Bolt N90735604
- 14Adapter 06A103206D
- 16Bolt N91149401
- 17Bolt N91149501
- 18Bolt WHT000006
- 18Bolt N91149601
- 19Bolt N91149701
- 20Tube 06D103634E
- 21Funnel 06F103663J
- 22Oil Dipsti 06F115611F
- 22Oil Dipsti 06F115611E
- 23Guide 06F103685
- 24Seal Ring N90421101
- 25Funnel 06F103663H
- 26Bolt N91013001
- 27Seal Ring N90813802
Diagrams & fitment data powered by oemdiagrams.com
N10430502 Volkswagen Hexagon Bolt | Genuine OEM is fitted on: GOLF 2003-2005; Jetta "USA"05> 2005-; Passat/4Motion 2005-2007; JETTA 06> 2005-; Golf/Rabbit 2005-2007; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; Golf/Rabbit 08> 2007-; Passat/4Motion 08 2007-; golf 2.0 2008-2011; Scirocco 2.0 2008-2014; EOS 2.0 2008-2010; jetta 2008-2011; Golf Cabriolet 2011-2016; Golf 2011-2013; Polo 2012-2014; Scirocco 2.0 2014-2017; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Sportback 2008-2013; Audi A6 2.7 TDI 2008-2011; Audi TTS Coupe 2.0 2010-2014; Audi A1 Sportback 2010-2015; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Exeo ST Reference 2008-2011; Leon Stylance 2010-2012; OCTAVIA/COMBI/4X4 04> 2004-.
