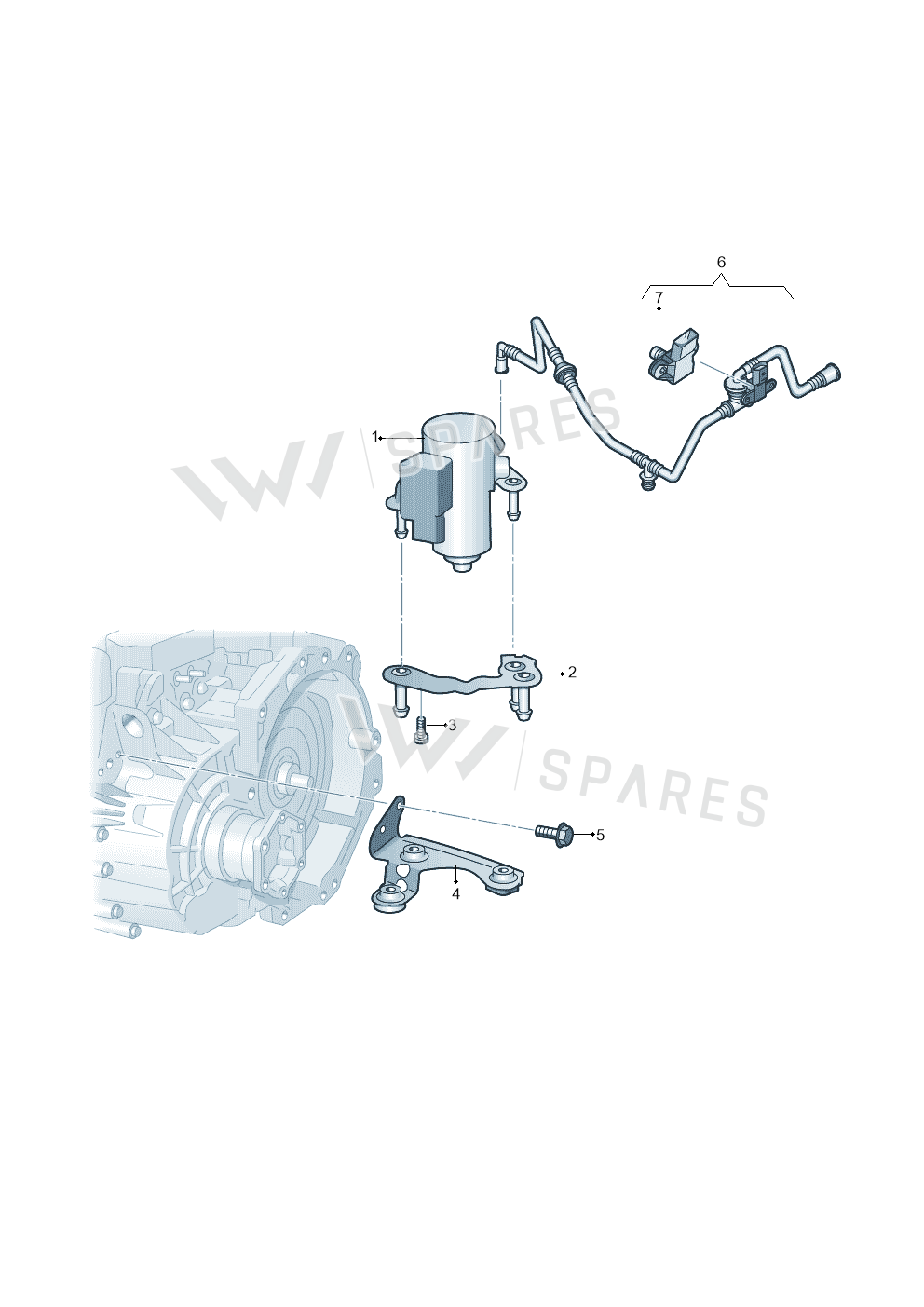

Locating Bolt exploded parts diagram — ALTEA 07> · 2006-, position 5
Exploded view
ALTEA 07> · 2006- · position 5Full diagram ↓
N10465701

N10465701 Locating Bolt

£0.18
£0.15 excl. VAT
Supersession roadoldest to newest
  1. N10465701This pageNot stocked
    Apr 2007
  2. N10465702Not stocked
    Apr 2007
  3. N91073301Current number
Current part numberN91073301What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

35 vehicles

Locating Bolt — locate Locating Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly8
Vehicle fitment table35

Europe (20)

VehicleYearsPos.QtyRemarkPR
ALTEA 07>2006-5, 82
LEON 06>2005-20, 82
CORDOBA 06>2005-7X
TOLEDO 05>2004-20, 82
OCTAVIA/COMBI/4X4 04>2004-20, 5, 82
FABIA/COMBI 05>2004-72
ALTEA2004-200620, 82
FOX 04>2003-72
CORDOBA/SE2412002-20057X
TOLEDO/LEON/LEON-42001-2006162MK.60
IBIZA2001-20057X
GOLF/VAR./4MOT. A4 022001-2002162PR:1AC,1AJ,
Jetta Wagon 022001-2002162PR:1AC/1AJ/
Jetta Wagon2001-2001162MK.60PR
OCTAVIA/COMBI/4X4 01>2000-162MK.60
AUDI A3/S3/QUATTRO2000-2003162MK.60PR
FABIA/COMBI1999-200472
Audi TT Coupe/Roadster1999-2002162
TOLEDO/LEON/LEON-41998-2001162MK.60
Golf1998-2000162MK.60PR

Other markets (13)

VehicleYearsPos.QtyRemarkPR
OCTAVIA "CN."07>2007-20, 82
POLO JIN QIN "CN"06>2006-20XG1A
POLO JIN QV "CN"06>2006-20XG1A
BORA-GP-FAW 07>2006-62
CADDY-FAW "CN" 05>2005-82
BORA-FAW "CN" 06>2005-20, 82
TOURAN (SVW) "CN"04>2004-20, 5X
POLO CLASSIC "CN"03>062003-200620XG1A
POLO CLASSIC (AUS) "CN"03>062003-200620XG1A
POLO CLASSIC "ZA"03>052003-20057X
POLO "CN"02>062002-200620X
BORA (FAW)2001-200662
AUDI A3-BRASIL.2000-2005162

Platform / generic diagrams (2)

VehicleYearsPos.QtyRemarkPR
1J0 platform162
1C0 platform162

Diagrams & fitment data powered by oemdiagrams.com

Locating Bolt is fitted on: ALTEA 07> 2006-; LEON 06> 2005-; CORDOBA 06> 2005-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; ALTEA 2004-2006; FOX 04> 2003-; CORDOBA/SE241 2002-2005; TOLEDO/LEON/LEON-4 2001-2006; IBIZA 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A3/S3/QUATTRO 2000-2003; FABIA/COMBI 1999-2004; Audi TT Coupe/Roadster 1999-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; OCTAVIA "CN."07> 2007-; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; BORA-GP-FAW 07> 2006-; CADDY-FAW "CN" 05> 2005-; BORA-FAW "CN" 06> 2005-; TOURAN (SVW) "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO CLASSIC "ZA"03>05 2003-2005; POLO "CN"02>06 2002-2006; BORA (FAW) 2001-2006; AUDI A3-BRASIL. 2000-2005; 1J0 platform; 1C0 platform.
