N10469401 Hex Collared Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

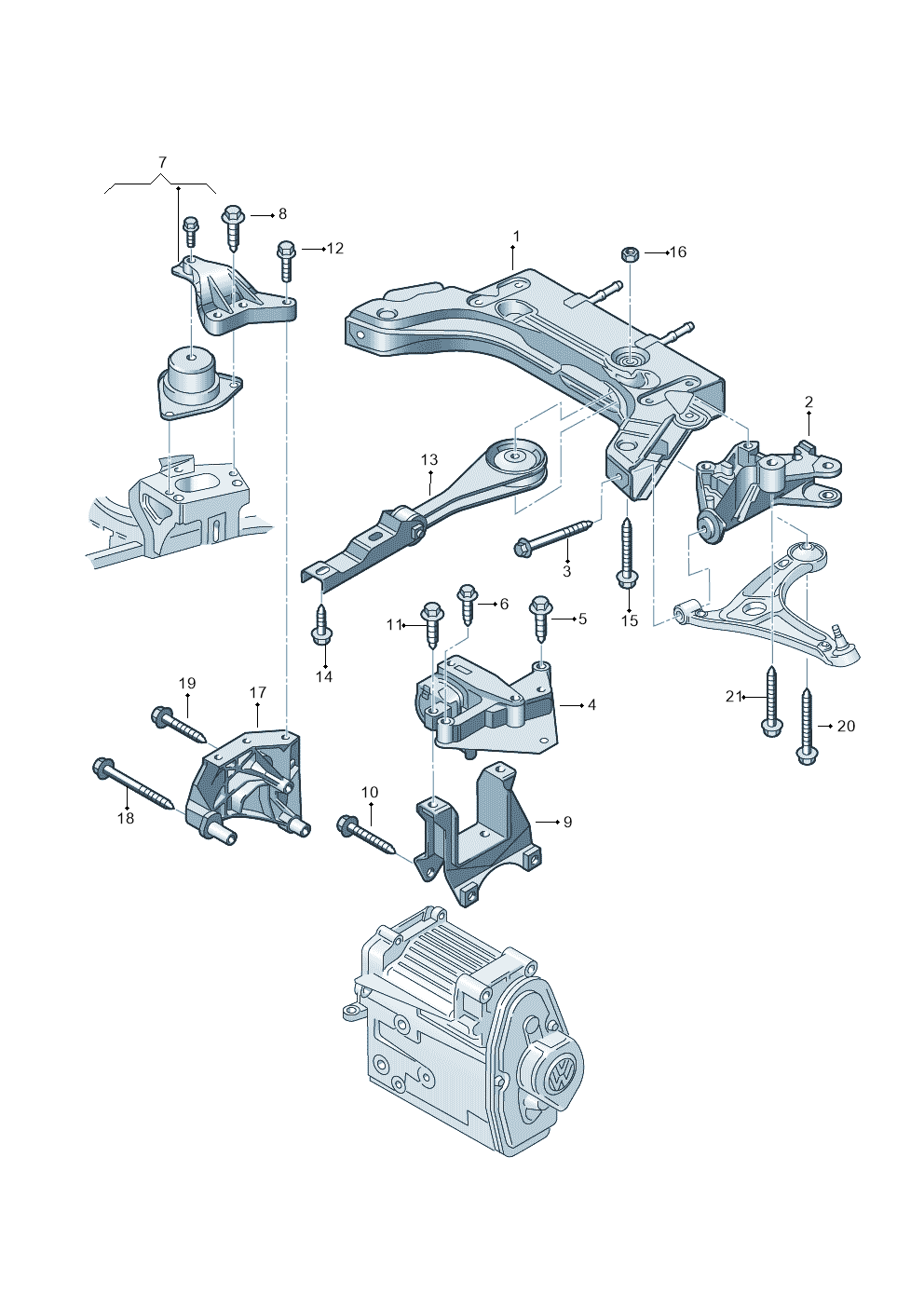

3 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Carrier 6E0199287E
- 2ConsoleRight6E0199294A
- 2ConsoleRight6E0199294C
- 2ConsoleLeft6E0199293C
- 4Gear Mount 6E0199555D
- 5Bolt N0195313
- 6Bolt N10155906
- 8Bolt N10155901
- 9ConsoleLeft6E0199111D
- 11Bolt N10241605
- 12Bolt N90596906
- 13Support 6E0199851
- 14Bolt N10246610
- 15Bolt N90597001
- 16Collar Nut N10261302
- 18Bolt N10691501
- 19Bolt N10197301
- 20Bolt N91039802
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 21, 11, 13, 18, 16 | 2 | T4A |
| AUDI A2 | 2000-2005 | 17, 10 | X | T4A |
| LUPO/3L TDI | 1998-2003 | 21, 18, 13 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: LUPO/3L TDI 2003-2005; AUDI A2 2000-2005; LUPO/3L TDI 1998-2003.
