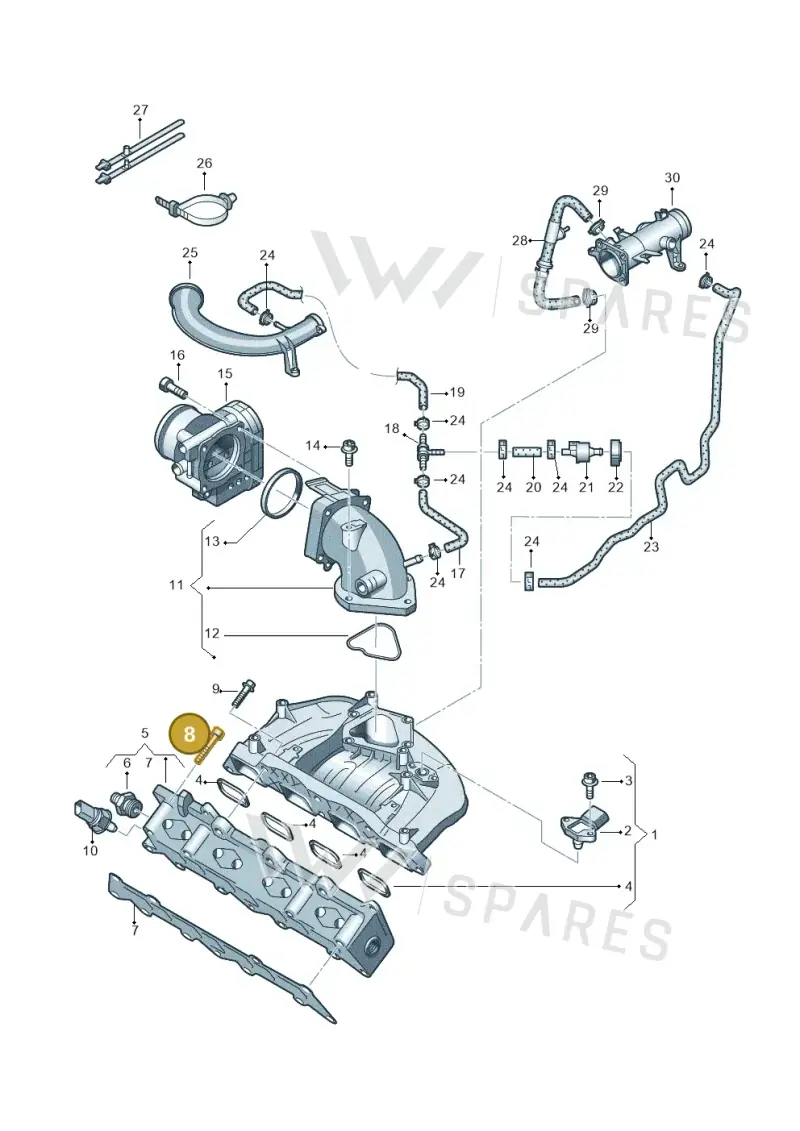

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bolt, part number N10476002. This bolt secures components using a socket head with an inner multipoint drive, offering high torque capabilities. It is a critical fastener for maintaining assembly integrity. The bolt is highlighted as item 8 in the diagram. Genuine OEM bolts ensure precise fitment and material strength for reliable component attachment.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6.6 × 1.5 × 1.5 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
52 vehiclesScrew — locate N10476002 Volkswagen Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Manifold 03C129711B
- 2Part 03C133204AH
- 4Thr Flap 036133062Q
- 5Seal 03C133073B
- 6Sensor 03C906051
- 8Bolt N10442002
- 9Screw N0147135
- 10Valve 037906283C
- 11Hose 03C133784J
- 12Hose 03C133784B
- 13Screw N10551401
- 14Vacuum Uni 03C129061B
- 15Screw N10053404
- 16Potentiome 03C907386B
- 17Seal Ring 036133696C
- 18Seal 03C129717C
- 19Screw N10666401
- 20Sensor 06D906051A
- 23Valve 03C103363B
- 28Bolt N90413006
- 29Bolt N10451405
- 30Seal 03C131550A
- 31Valve 03C131503B
- 32Seal 03C131550
- 33Pipe 03C131521S
- 34Screw N90500605
- 35Seal 03C131550B
- 36Screw N10225402
- 37Hose 03C133518G
- 38Clamp N90686701
- 39Valve 058133517B
- 40Thrustring 058133459
- 41Hose 03C133518M
- 42Container 6Q0133563
- 43Retainer 6Q0133519A
- 44Hose 6Q0133366B
- 45Binder 4A0820199
- 46Cable Tie 3D0971838N
