N10489902 Hex Collared Bolt
- N10489902This pageNot stocked
Apr 2007 - N10489903Discontinued
May 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

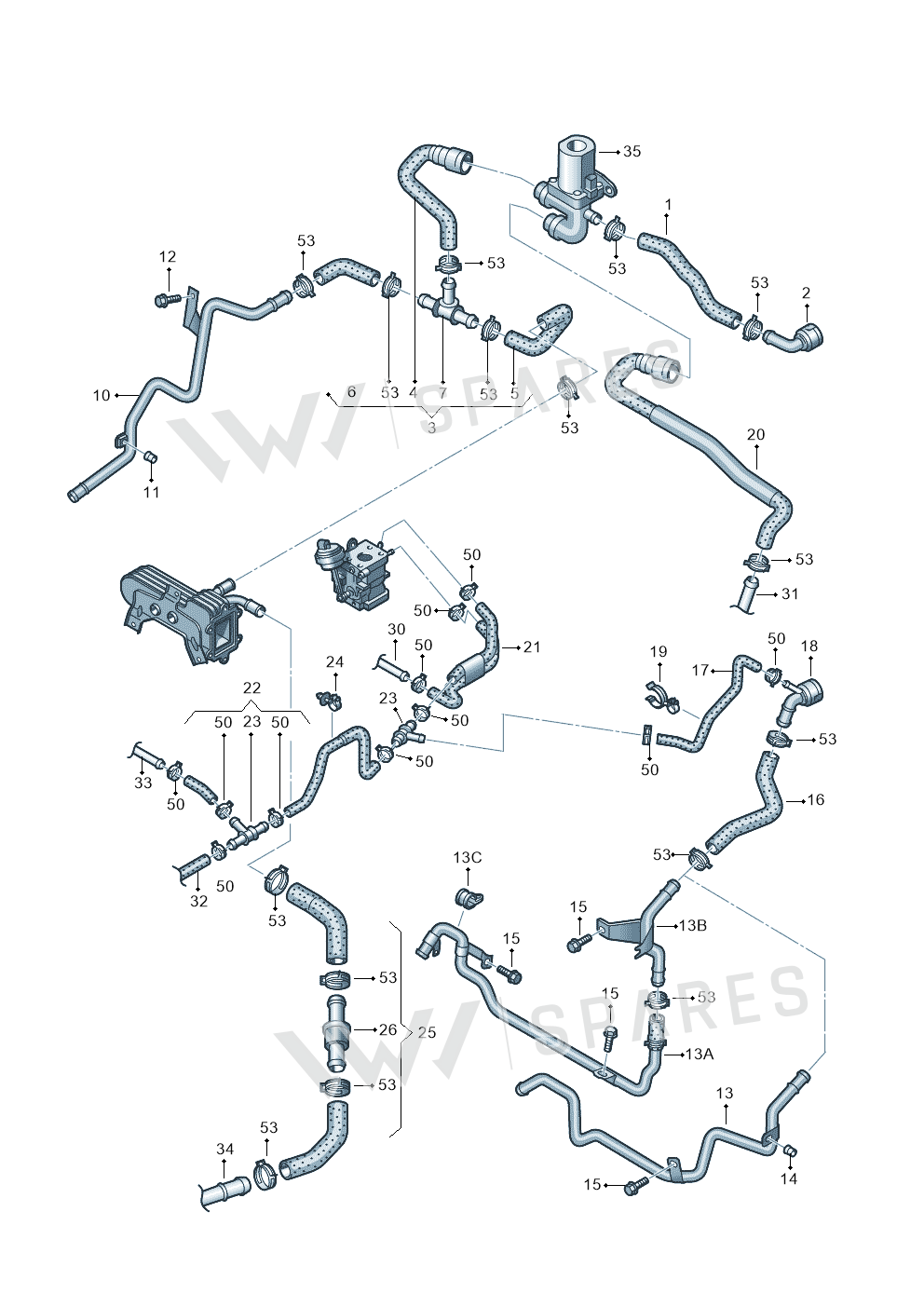

5 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Hose 1K0121073AQ
- 1Hose 1K0121073R
- 2Coupl Piece 1K0122291H
- 2Coupl Piece 1J0122291C
- 4Part 1K0122449E
- 4Hose 1K0122449H
- 5Hose 1K0122449F
- 5Hose 1K0122449J
- 7Tpiece N90760601
- 7Tpiece 701819876
- 10Water Pipe 038121151C
- 10Water Pipe 038121151B
- 11Ut Hexagon Flange Nut Self-locking Hexagon N90887701
- 12Bolt N10009110
- 13Water Pipe 03G121151AB
- 13Water Pipe 03G121151L
- 13Water Pipe 03G121151
- 13AWater Pipe 03G121151G
- 13BWater Pipe 03G121151H
- 13CClamp N0206254
- 14Collar Nut N90761101
- 15Bolt N10489903
- 16Hose 1K0121157DF
- 17Hose 1K0121447BP
- 18Coupl Piece 1K0122291R
- 18Coupl Piece 1K0122291AL
- 19Retainer 701971787T
- 20Hose 1K0122073DN
- 21Hose 1K0122447CN
- 22Hose 1K0122447CK
- 23Tpiece N90693001
- 24Clip N10436201
- 25Hose 1K0122157EF
- 26Valve 1J0122351
- 50Clamp N90686701
- 52Clamp N90686902
- 53Clamp N90687001
- 54Clamp N90687101
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| superb comfort | 2008-2013 | 15 | X | D3W |
| octavia ambiente | 2008-2013 | 12 | X | D3X |
| Audi A3/S3/quattro | 2005-2007 | 15, 12 | X | D3W |
| OCTAVIA/COMBI/4X4 04> | 2004- | 15, 12, 8 | X | D3W |
| TOURAN | 2003-2005 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3/S3/quattro 2005-2007; OCTAVIA/COMBI/4X4 04> 2004-; TOURAN 2003-2005.
