N10491801 Hex Collared Bolt
- N10491801This pageNot stocked
Aug 2009 - N10491802Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

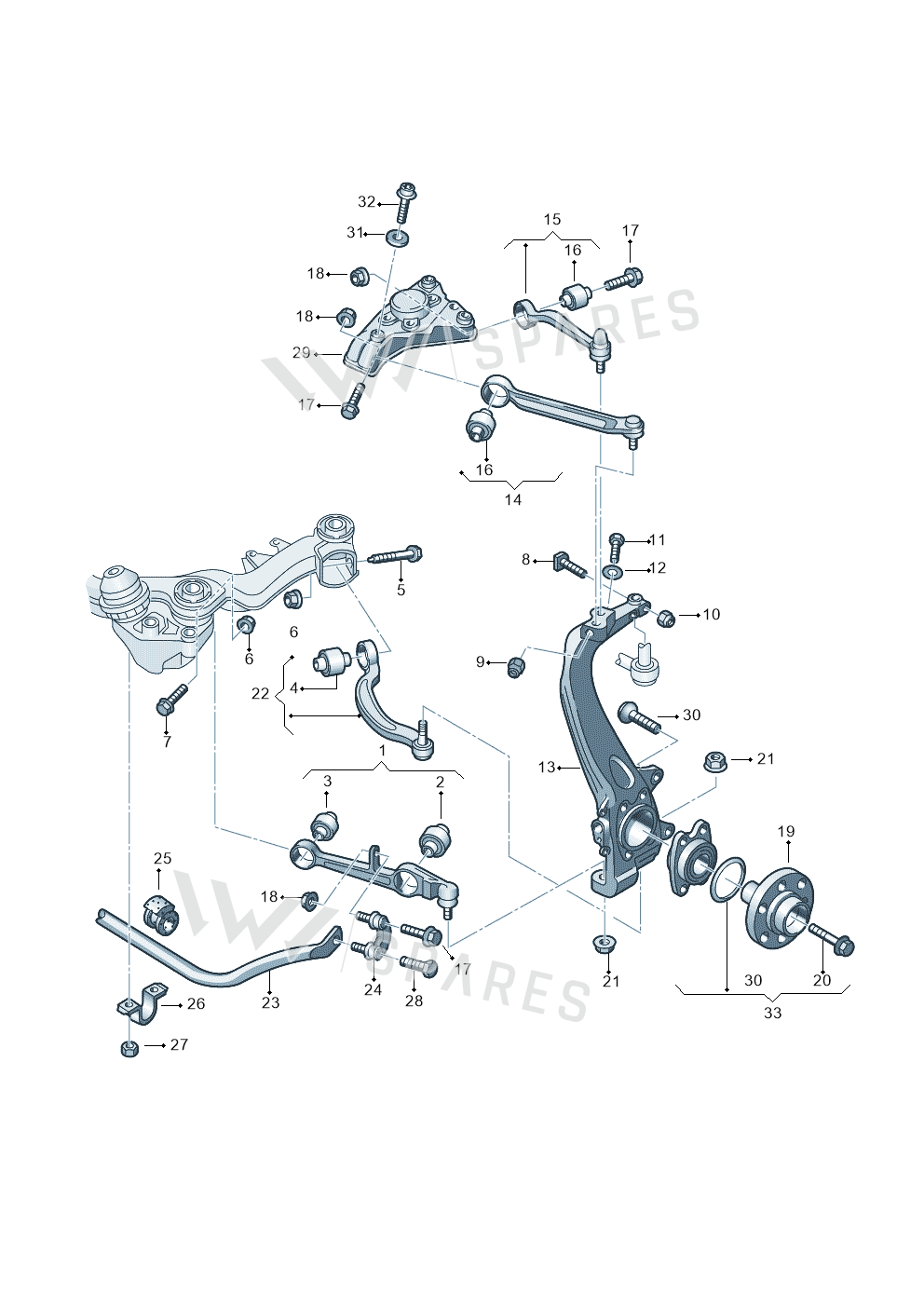

1 vehicleHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Wishbone 4F0407151A
- 2Rubber Bush 4E0407181B
- 3Rubber Bush 4E0407182C
- 4Rubber Bush 4F0407183E
- 5Bolt N90625902
- 6Collar Nut N90323706
- 7Bolt N91016601
- 8Screw WHT001480
- 9Collar Nut N10272302
- 10Ut Hexagon Nut Self-locking Hexagon Nut N90892301
- 12Washer N10406103
- 13Housing 4FD407253F
- 13HousingLeft4FD407253G
- 13Housing 4FD407254F
- 13HousingRight4FD407254G
- 14GuideLeft4E0407505E
- 14GuideRight4E0407506E
- 14Guide 4FD407505
- 14Guide 4FD407506
- 14Guide 4E0407505B
- 14Guide 4E0407506B
- 15GuideLeft4E0407509G
- 15GuideLeft4E0407509K
- 15GuideRight4E0407510E
- 15GuideRight4E0407510G
- 15GuideRight4E0407510K
- 15GuideLeft4E0407509E
- 15GuideLeft4FD407509
- 15GuideRight4FD407510
- 15GuideLeft4E0407509B
- 15GuideRight4E0407510B
- 16Rubber Bush 8D0407515C
- 16Rubber Bush 8D0407515B
- 17Bolt N10425302
- 18Collar Nut N10286110
- 19Wheel Hub 4FD407613
- 19Wheel Hub 4FD407613A
- 20Screw 8E0407643A
- 20Bolt 4B0407643A
- 21Part N90965601
- 22GuideLeft4FD407693
- 22GuideRight4FD407694
- 23Anti-roll 4F0411309H
- 23Anti-roll 4F0411309E
- 24Coupl Rod 4E0411317F
- 25Rubber Bush 4D0411327J
- 26Clamp 4D0411336G
- 27Collar Nut N90183802
Vehicle fitment table1
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 11 | 2 | K8L |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: AUDI A6L "CN"05> 2005-.
