Bolt exploded parts diagram — TRANSPORTER · 2003-2005, position 7
Exploded view
TRANSPORTER · 2003-2005 · position 7Full diagram ↓
N10516701

N10516701 Bolt

£0.86
£0.71 excl. VAT
Supersession roadoldest to newest
  1. N10516701This pageNot stocked
    Oct 2008
  2. N10516702Current number
Current part numberN10516702What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

15 vehicles

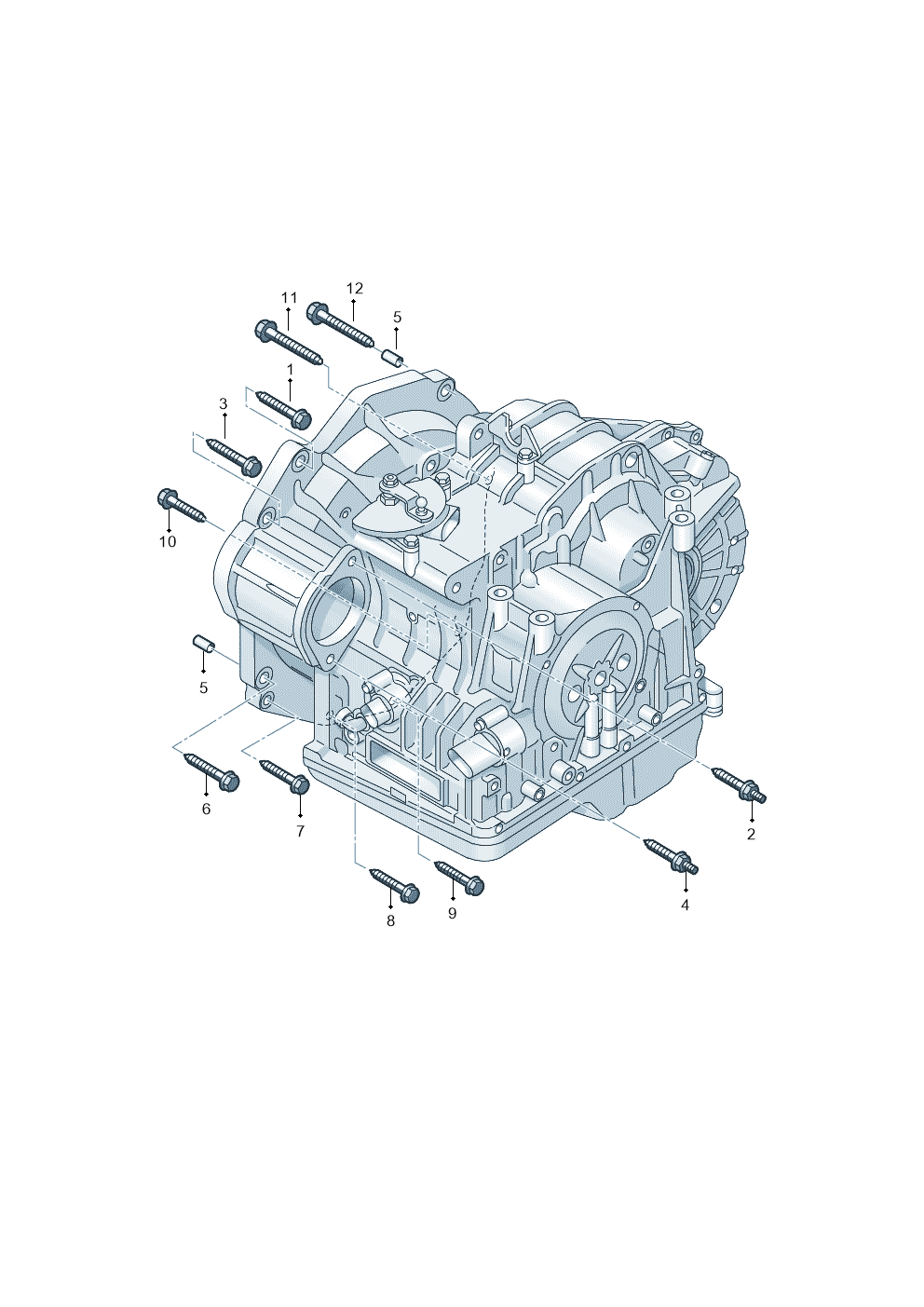

Bolt — locate Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly4
Vehicle fitment table15

Europe (10)

VehicleYearsPos.QtyRemarkPR
TRANSPORTER2003-20057, 81
Jetta/Wagon2002-200662
Cayenne2002-20063
TOLEDO/LEON/LEON-42001-200662D2F,D3A,D3E,D3H,D6B,G0C,G0E,G0K,G0L,MB5,MD1,ME8,ME9,MF4,MK1,MN0,MN7,MQ7,MQ8,MS6,MT0,MW6,M0G,M1U,M51,M63
GOLF/VAR./4MOT. A4 022001-200262G0
Jetta Wagon 022001-200262G0
Jetta Wagon2001-200162
OCTAVIA/COMBI/4X4 01>2000-62
AUDI A3/S3/QUATTRO2000-200362
Golf1998-200062

Other markets (2)

VehicleYearsPos.QtyRemarkPR
AUDI A6L "CN"05>2005-282T79
BORA (FAW)2001-200662

Platform / generic diagrams (3)

VehicleYearsPos.QtyRemarkPR
7L6 platform6, 34
1J0 platform62BAF,AWB
1J0 platform6

Diagrams & fitment data powered by oemdiagrams.com

Bolt is fitted on: TRANSPORTER 2003-2005; Jetta/Wagon 2002-2006; Cayenne 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A3/S3/QUATTRO 2000-2003; Golf 1998-2000; AUDI A6L "CN"05> 2005-; BORA (FAW) 2001-2006; 7L6 platform; 1J0 platform.
