N10524201 Hex Socket Head Locating Bolt
- N10524201This pageNot stocked
Oct 2005 - N10524202Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

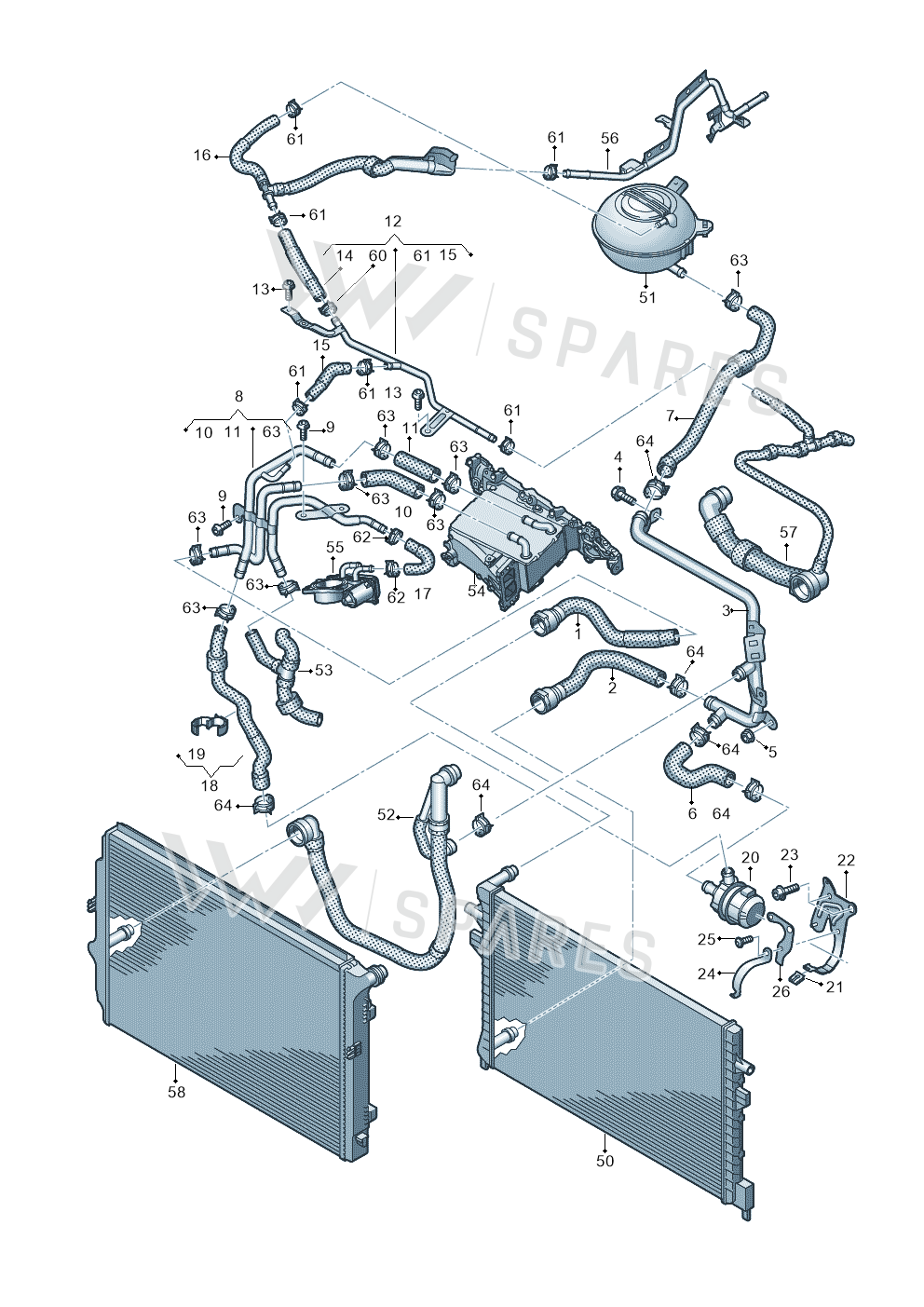

6 vehiclesHex Socket Head Locating Bolt — locate Hex Socket Head Locating Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1HoseRight5Q0122101S
- 2HoseRight5Q0122051BA
- 3Water Pipe 5Q0121070AH
- 4Bolt N10653201
- 5Collar Nut N01508210
- 6Hose 5Q0121051B
- 7Hose 5Q0122109K
- 8Water Pipe 04L121064E
- 9Bolt N10406504
- 10Hose 04L121051
- 11Hose 04L121101
- 12Pipe 5Q0121064AS
- 13Bolt N90737101
- 14Hose 5Q0122449B
- 15Hose 5Q0122449C
- 16Hose 5Q0122447AP
- 17Hose 04L121058H
- 18Hose 5Q0122101BM
- 19Bracket 1K0121093BN
- 20Water Pump 04L965567A
- 21Clip 8J7871719
- 22Bracket 5Q0121093AS
- 23Screw N10698101
- 24Bracket 5Q0121093M
- 25Bolt N90737107
- 26R Bracket 5Q0121093EG
- 60Clamp N90768301
- 61Clamp N90686701
- 62Clamp N90926401
- 63Clamp N90686902
- 64Clamp N90687001
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 1.4 BlueMotion | 2012-2017 | 23 | 2 | |
| Audi A3/S3/quattro | 2005-2007 | 39 | 2 | TM0 |
| TOURAN | 2005-2006 | 42 | 1 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 3 | 2 | T79,8Z9 |
| GOLF | 2003-2005 | 39, 41 | 2 | D7N |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 42 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Socket Head Locating Bolt is fitted on: Golf 1.4 BlueMotion 2012-2017; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; GOLF 2003-2005; Golf/Rabbit 2005-2007.
