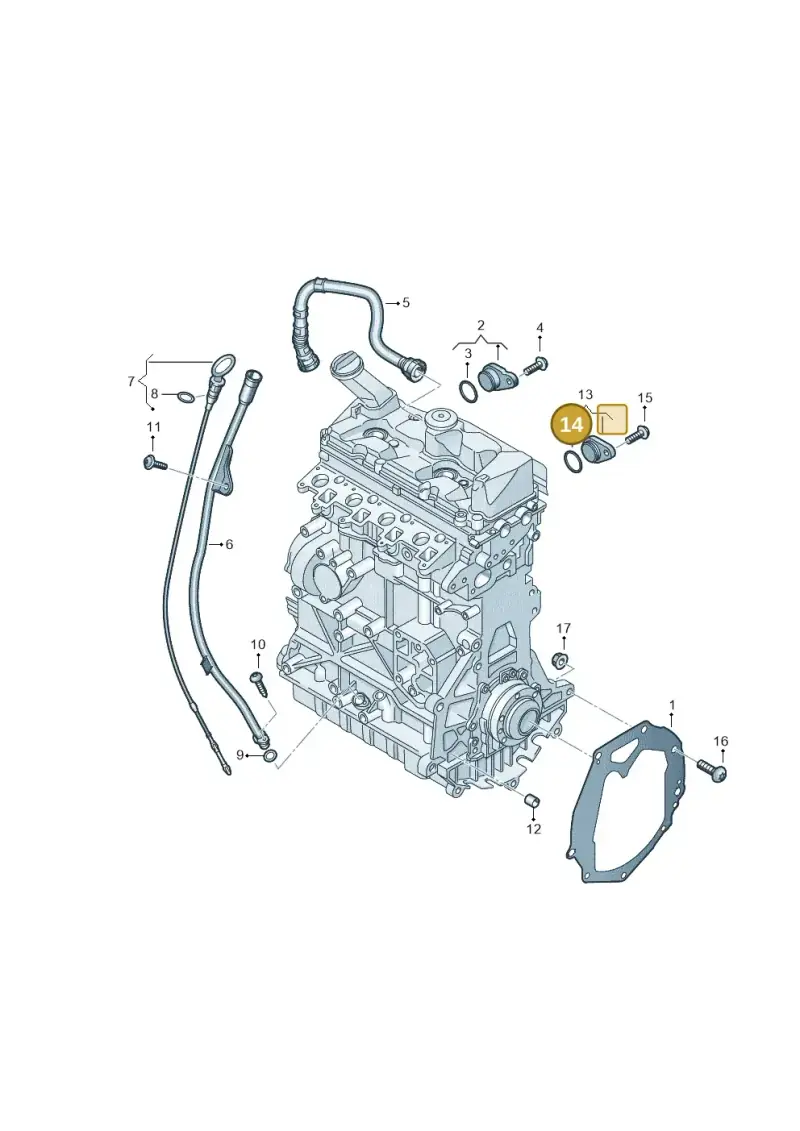

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen O-Ring, part number N10537701. This O-ring is designed to create a seal between engine components, preventing leaks of oil or coolant. It is located as part 14 in the engine diagram. Genuine OEM O-rings provide precise dimensions and material composition for reliable sealing.
Catalogue entry: SEAL. RING 16X2,65.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 2.2 × 0.3 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 16x2.65
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
18 vehiclesO-ring — locate N10537701 Volkswagen O-Ring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly24
- 1Coverplate 04L103647F
- 1Coverplate 04L103647J
- 1Coverplate 04L103647K
- 1Coverplate 04L103647E
- 2Cover 04L103111A
- 3Seal Ring 04L121119C
- 4Bolt N90737107
- 5Hose 04L103493G
- 5Hose 04L103493N
- 5Hose 04L103493P
- 5Hose 04L103493Q
- 6Tube 04L115629E
- 6Tube 04L115629H
- 7Oil Dipsti 04L115611L
- 7Oil Dipsti 04L115611N
- 8Seal Ring WHT001969
- 9Seal Ring N90043201
- 10Bolt N91096701
- 11Screw N10473402
- 12Sleeve 022103139B
- 12Sleeve 03L103139
- 13Cover 04L103111
- 16Bolt N91203601
- 17Collar Nut N10474803
Vehicle fitment table18
Europe (17)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| MAN TGE 55 | 2016-2021 | 14 | 1 | |
| MAN TGE 35 | 2016-2021 | 14 | 1 | |

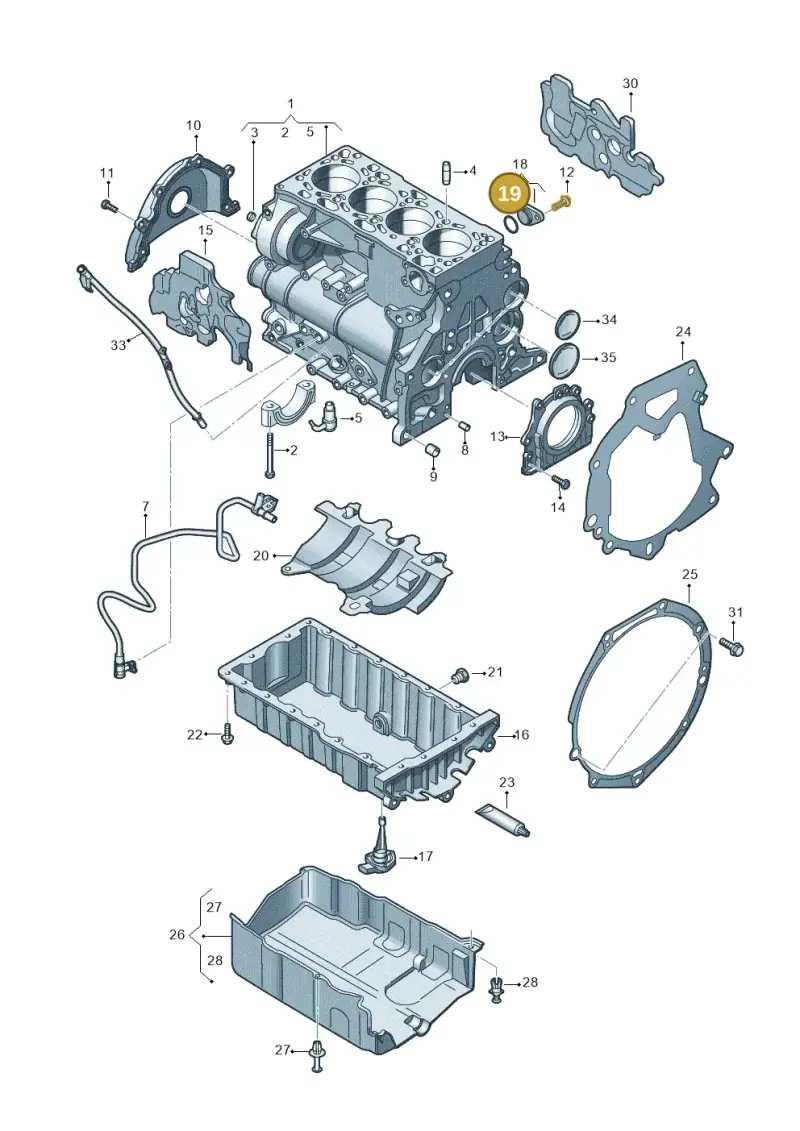

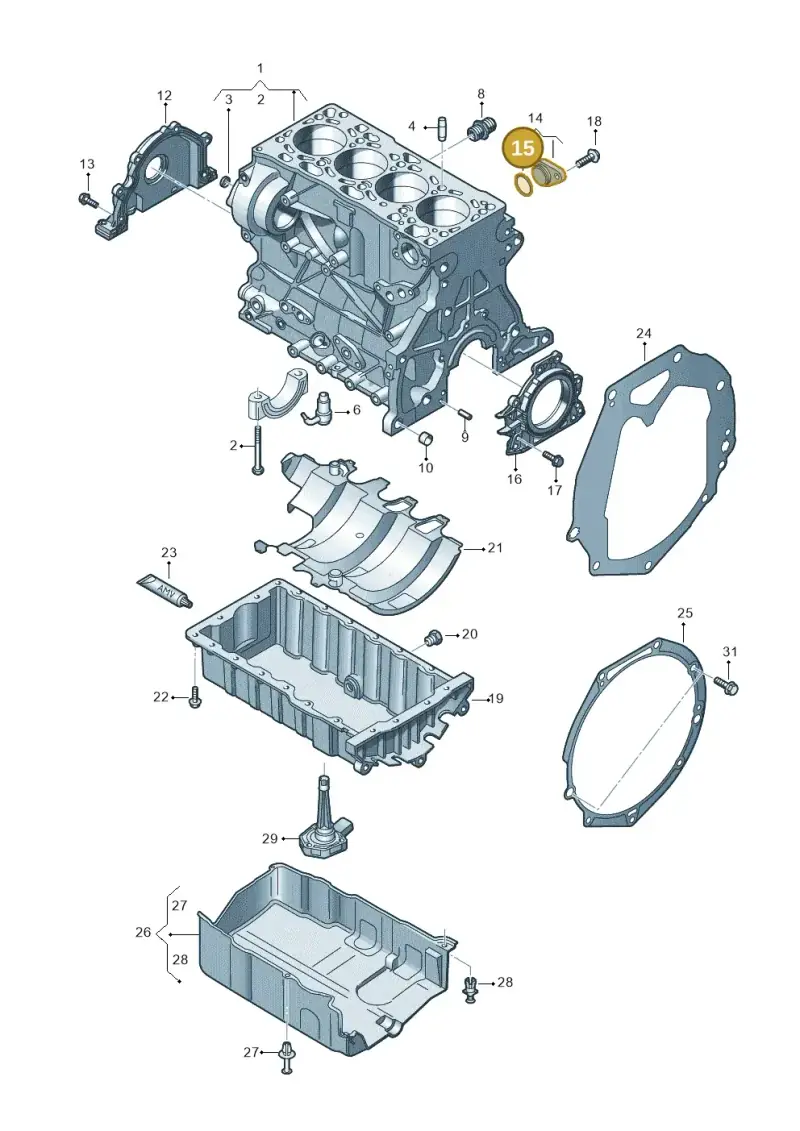

| caravelle | 2015-2019 | 15, 19 | 1 | |
| Single-cab transp. | 2015-2019 | 15, 19 | 1 | |
| California Camper | 2015-2019 | 15, 19 | 1 | |

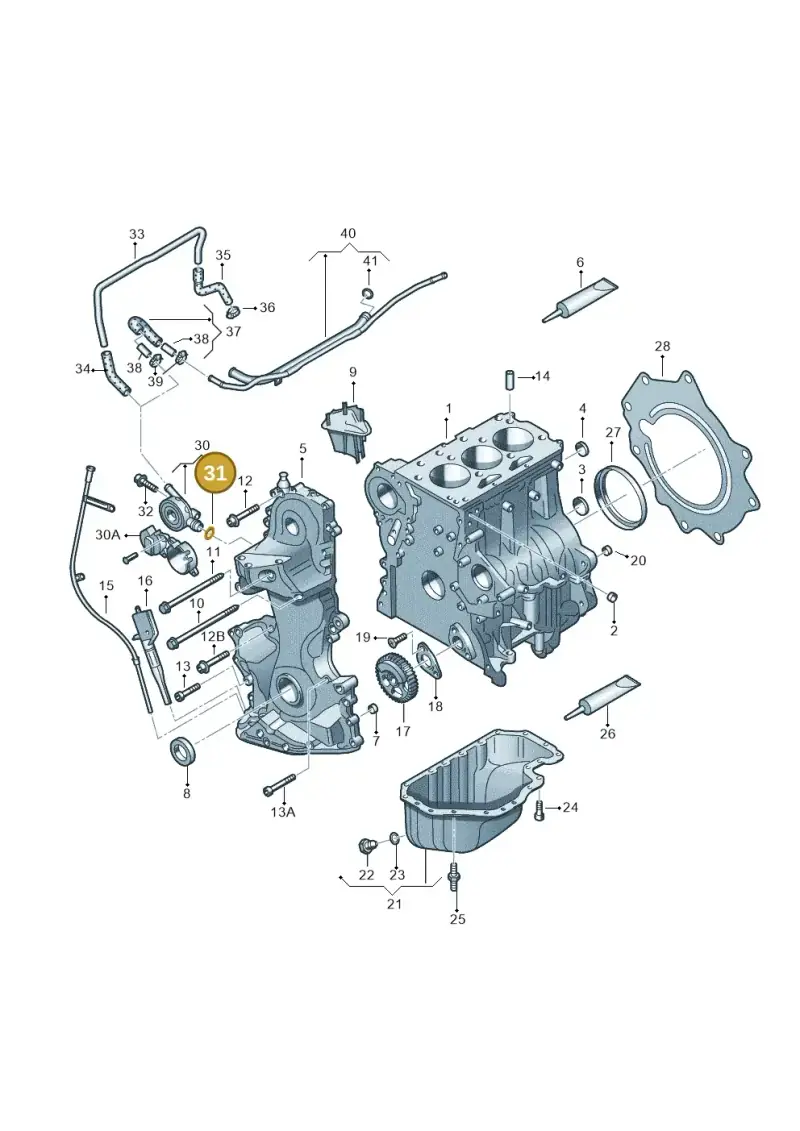

| Fabia Scout | 2010-2014 | 31 | 1 | |
| Polo | 2008-2009 | 31 | 1 | |
| FABIA/COMBI NF 07> | 2006- | 31 | 1 | |
| FOX M.05> | 2005- | 31 | 1 | |
| POLO | 2005- | 31 | 1 | MM2 |
| IBIZA 06> | 2005- | 31 | 1 | |
| FABIA/COMBI 05> | 2004- | 31 | 1 | |

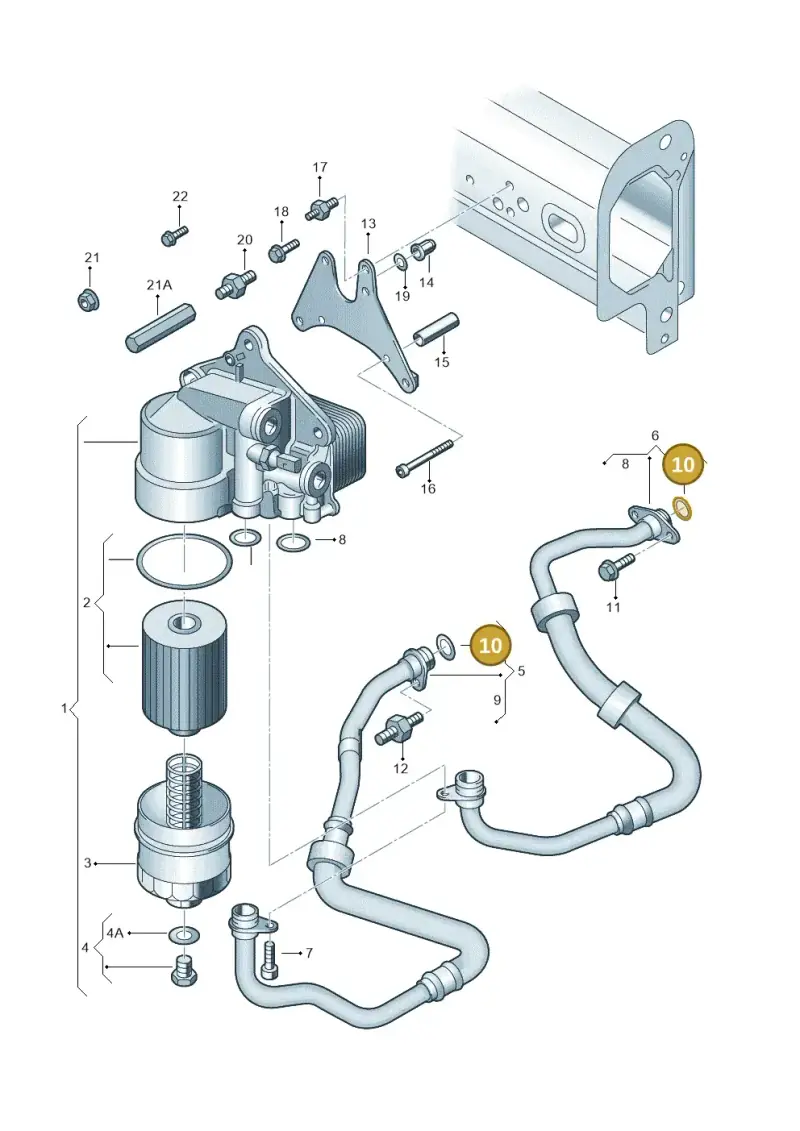

| Phaeton (lang) | 2003-2006 | 10 | 2 | MW4 |

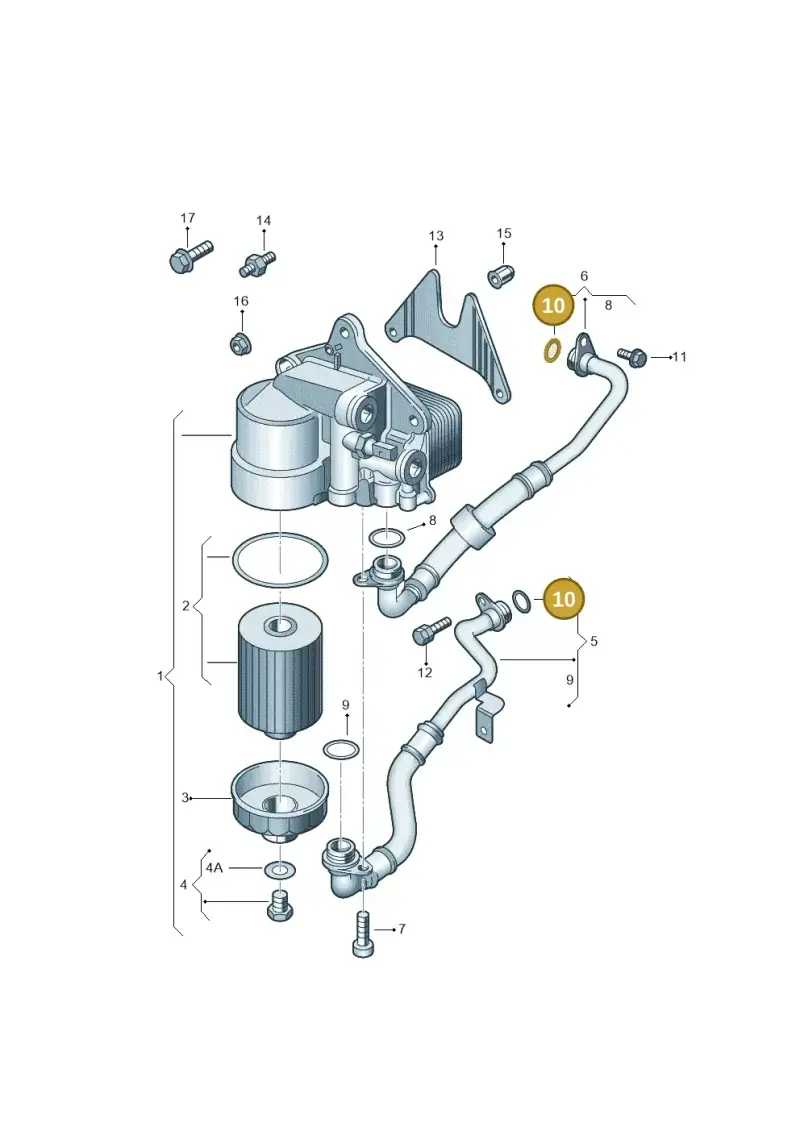

| PASSAT/4MOTION/W8 | 2002-2005 | 10 | 2 | M3E |
| POLO | 2001-2005 | 31 | 1 | MM2 |
| Passat/4Motion/W8 | 2000-2002 | 10 | 2 | M3E |
| FABIA/COMBI | 1999-2004 | 31 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 06A platform | 31 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
N10537701 Volkswagen O-Ring | Genuine OEM is fitted on: MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Fabia Scout 2010-2014; Polo 2008-2009; FABIA/COMBI NF 07> 2006-; FOX M.05> 2005-; POLO 2005-; IBIZA 06> 2005-; FABIA/COMBI 05> 2004-; Phaeton (lang) 2003-2006; PASSAT/4MOTION/W8 2002-2005; POLO 2001-2005; Passat/4Motion/W8 2000-2002; FABIA/COMBI 1999-2004; 06A platform.
