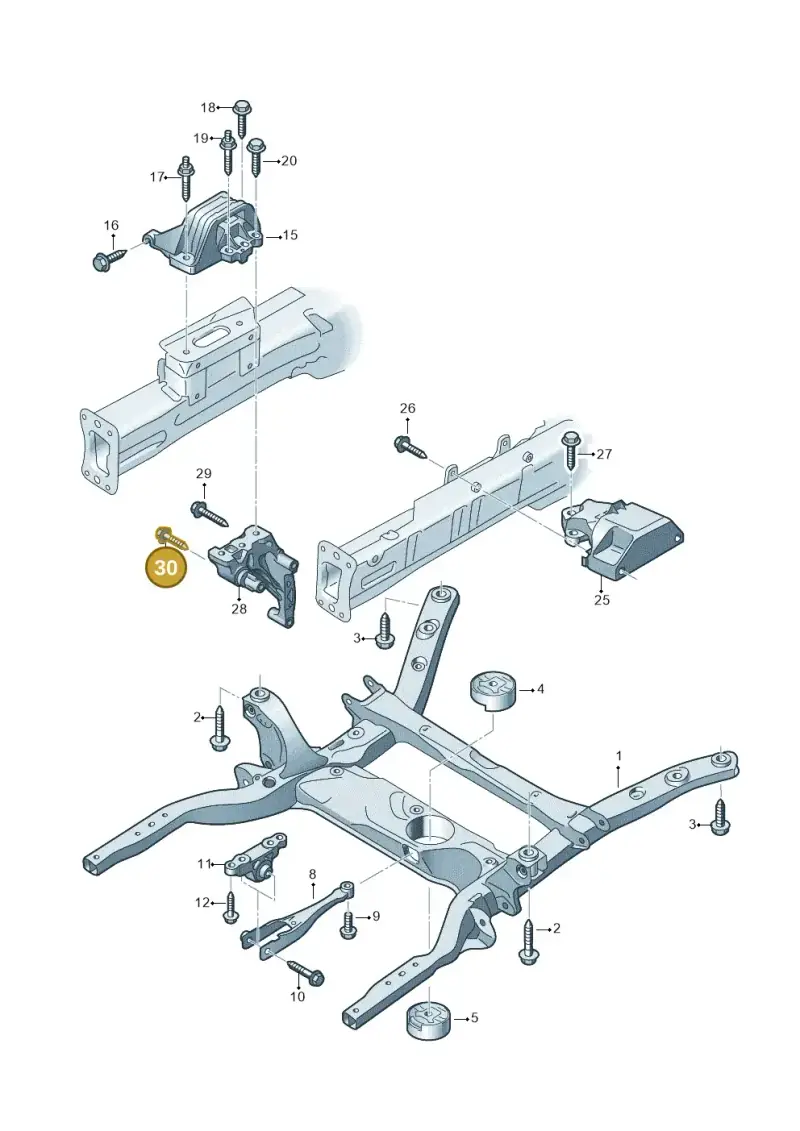

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Collared Bolt, part number N10560702. This bolt is characterized by its hexagonal head and integrated collar, designed for securing various components within the chassis and engine systems. It provides a strong and reliable fastening point. Made from high-grade steel, it ensures longevity and resistance to vibration. Genuine OEM bolts with collars offer precise alignment and load distribution, crucial for structural integrity.
Catalogue entry: BOLT M10X70.
Fitted with: N10699401 BOLT, N10770702 BOLT, N10793603 BOLT, 04L199207G SUPPORT, 04L199207J SUPPORT, N10666601 BOLT.
Technical details
- Category
- Engine
- Country of origin
- Spain
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.3 × 2.6 × 2.6 cm
- Shipping weight
- 0.06 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M10x70 mm
- Thread
- M10x65 mm
- Engine codes
- CBZB
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

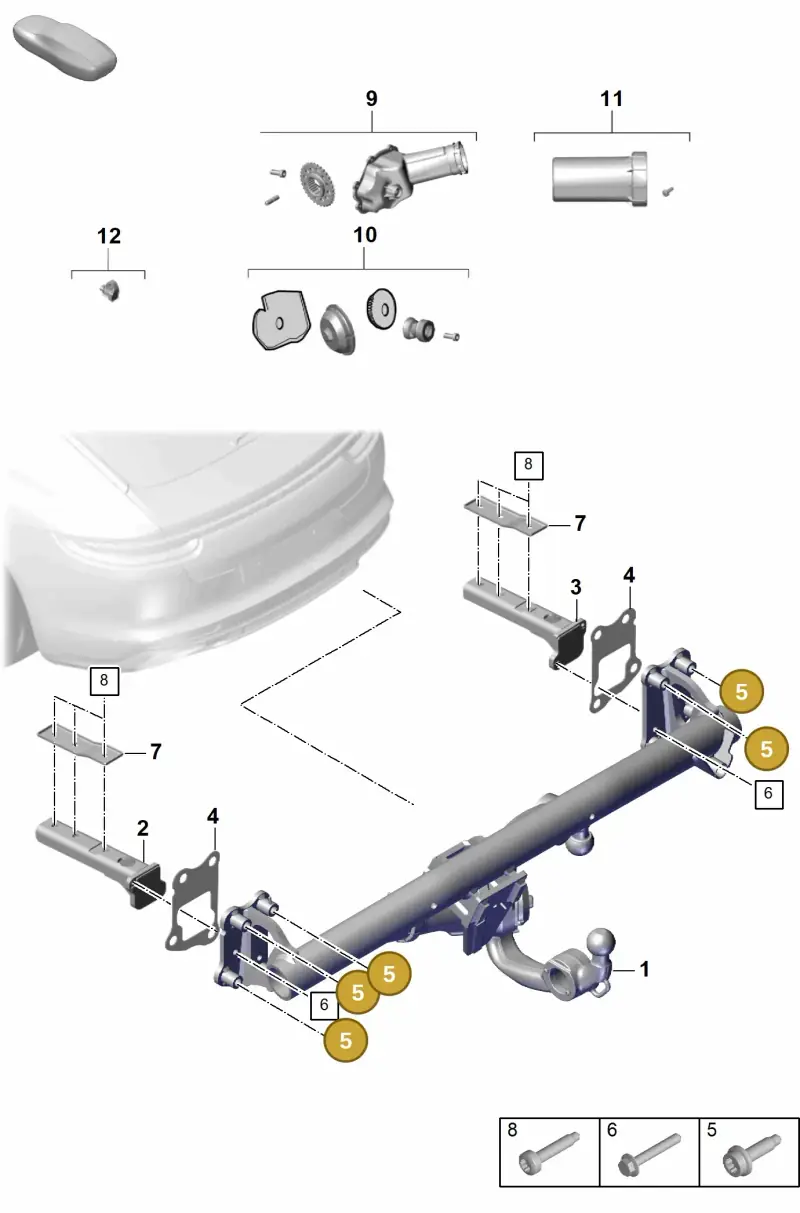

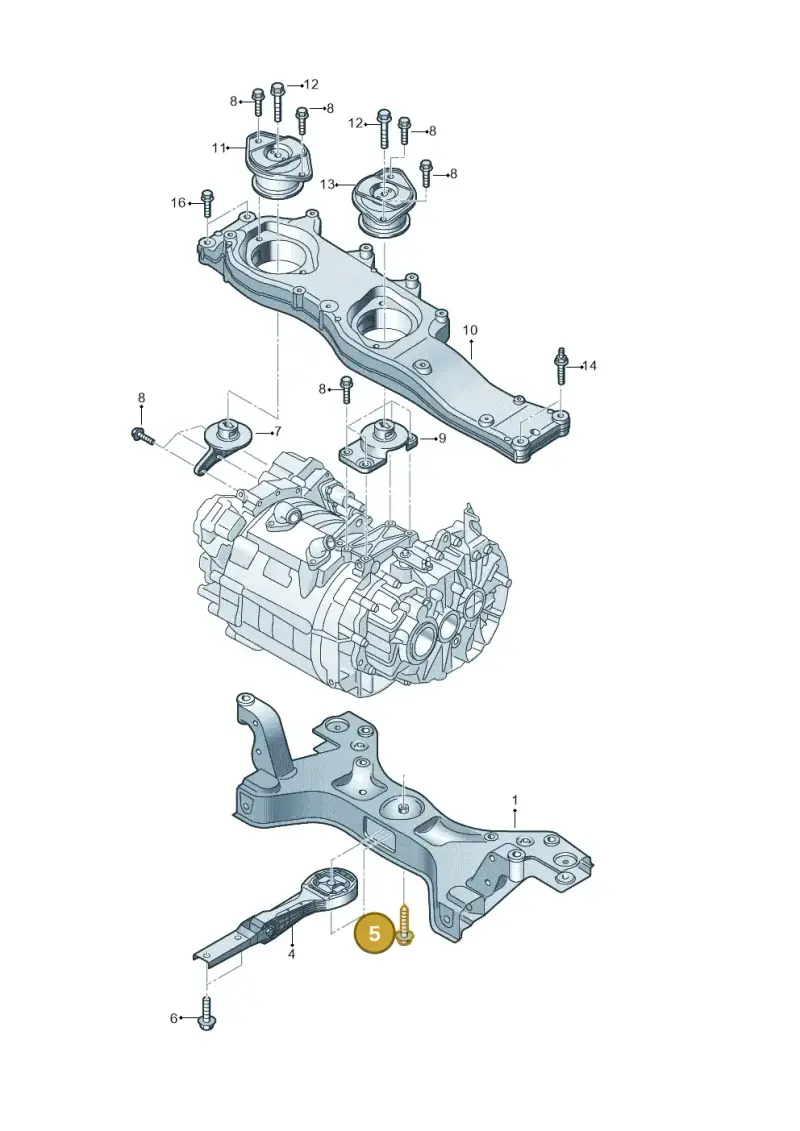

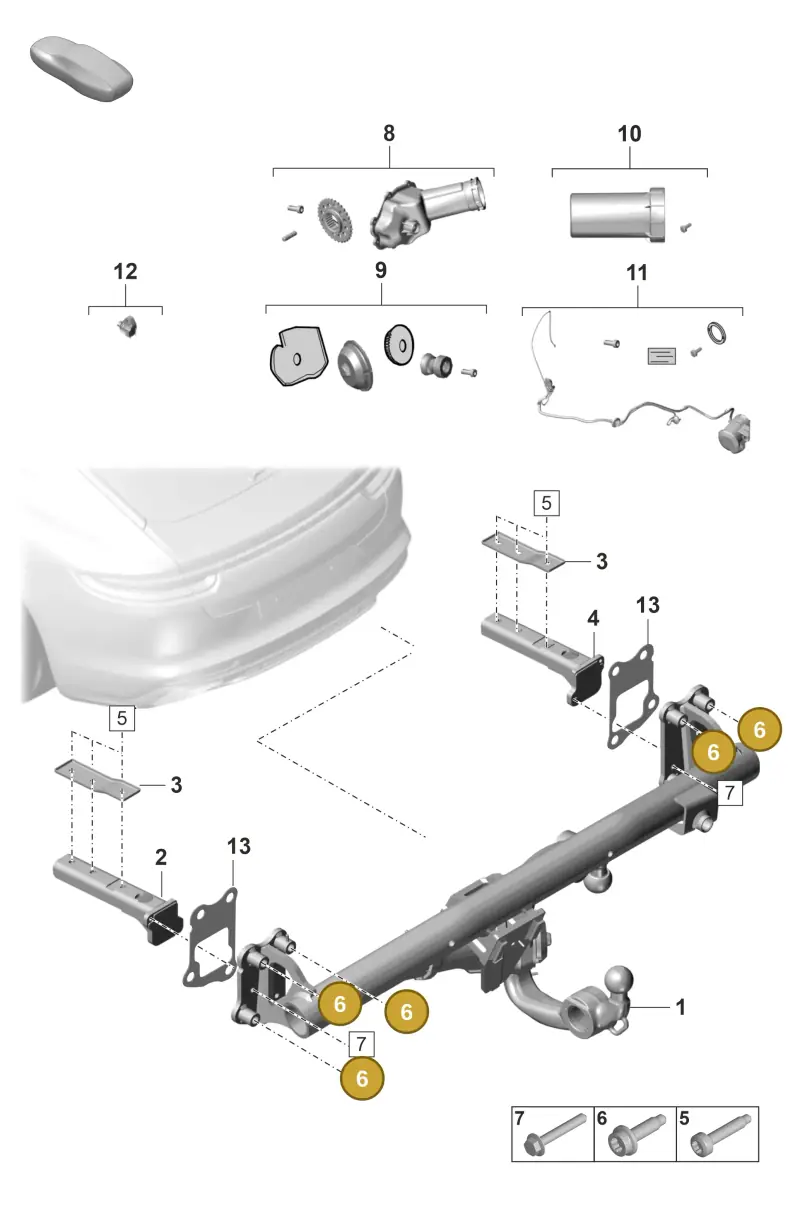

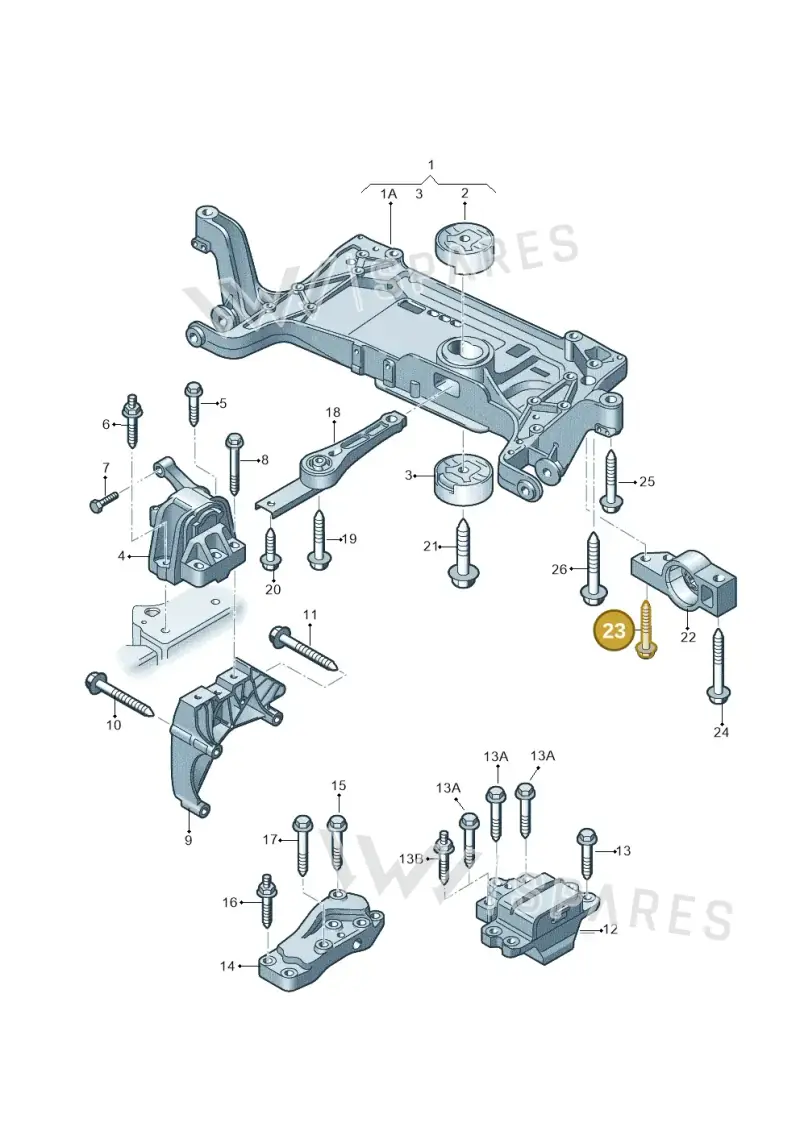

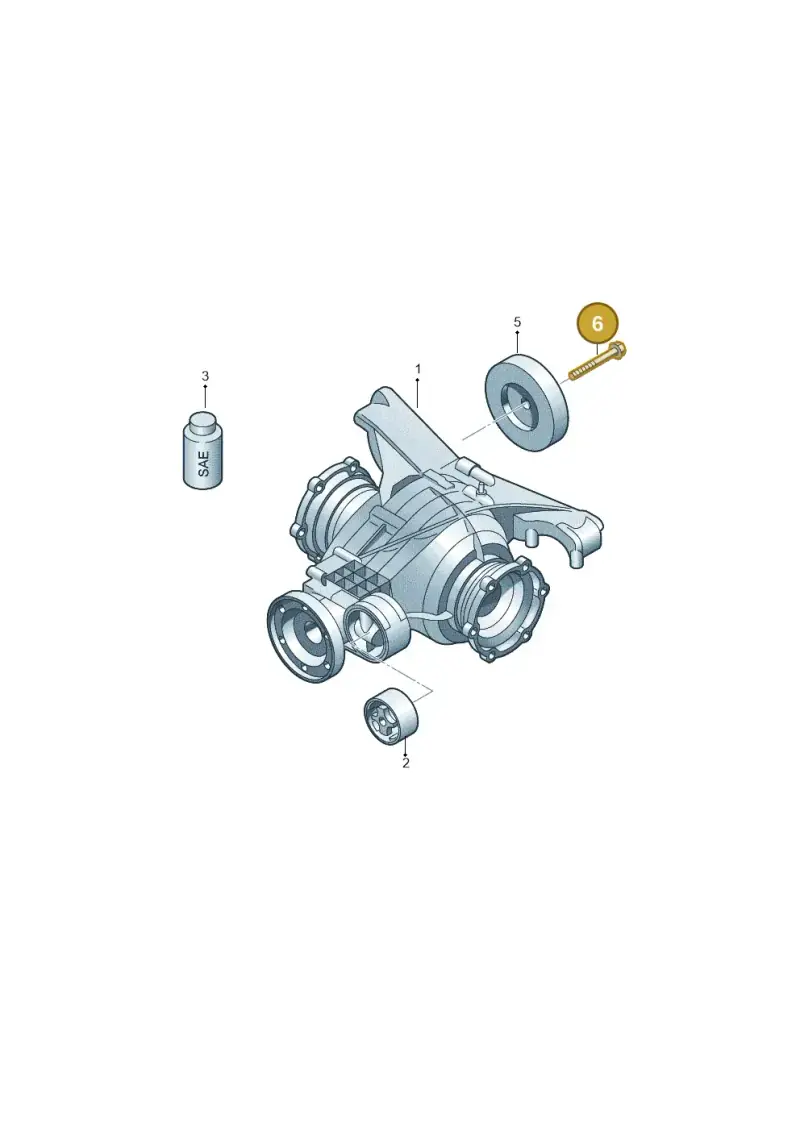

97 vehiclesHex Collared Bolt — locate N10560702 Volkswagen Hex Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
