N10563501 Hexagon Socket Head Bolt
- 8D1721117NNot stocked
Mar 2004 - N10563501This pageNot stocked
Sep 2021 - N10715401Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

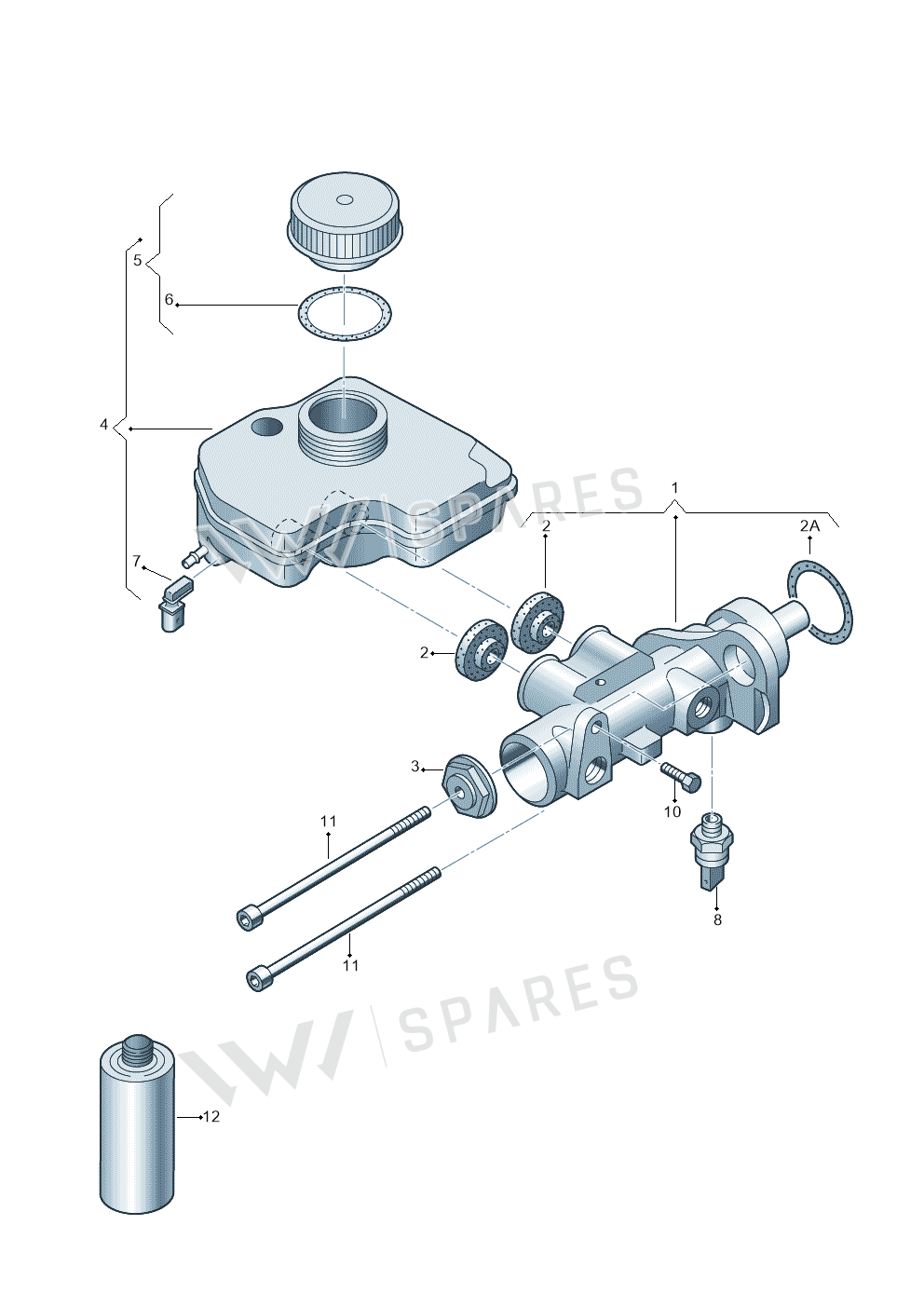

4 vehiclesHexagon Socket Head Bolt — locate Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Brake Cylinder 3D0611021A
- 1Brake Cylinder 3D2611021
- 1Brake Cylinder 3D2611021A
- 1Brake Cylinder 3D0611021
- 2Bungs 4M0611817A
- 2AGasket 4D0611243
- 3Part WHT000428
- 4Tank 3D0611301B
- 5Part 6C0611349
- 7Sender 8E0611377
- 8Pressure 3D0907597
- 10Bolt N90638803
- 12Brakefluid B000750M3
- 12Brakefluid B000750M6
- 12Brakefluid B000750M7
- 12Brakefluid B000750M9
- 12Brakefluid B000750M1
Vehicle fitment table6
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Phaeton (lang) | 2003-2006 | 11, 3 | 2 | ||
| PASSAT/4MOTION/W8 | 2002-2005 | 3 | 2 | L0L,L0R,1AC,1AH,1AJ,1AT | |
| PASSAT 00> | 2000- | 5, 3 | 2 | 1AT |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 5, 3 | 2 | 1AT |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L CHINA | 1999-2005 | 1 | |||
| 3B0 platform | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Bolt is fitted on: Phaeton (lang) 2003-2006; PASSAT/4MOTION/W8 2002-2005; PASSAT 00> 2000-; PASSAT LINGYU "CN."06> 2005-.
