N10604401 Hex Collared Bolt
- N10604401This pageNot stocked
Jun 2009 - N10604402Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

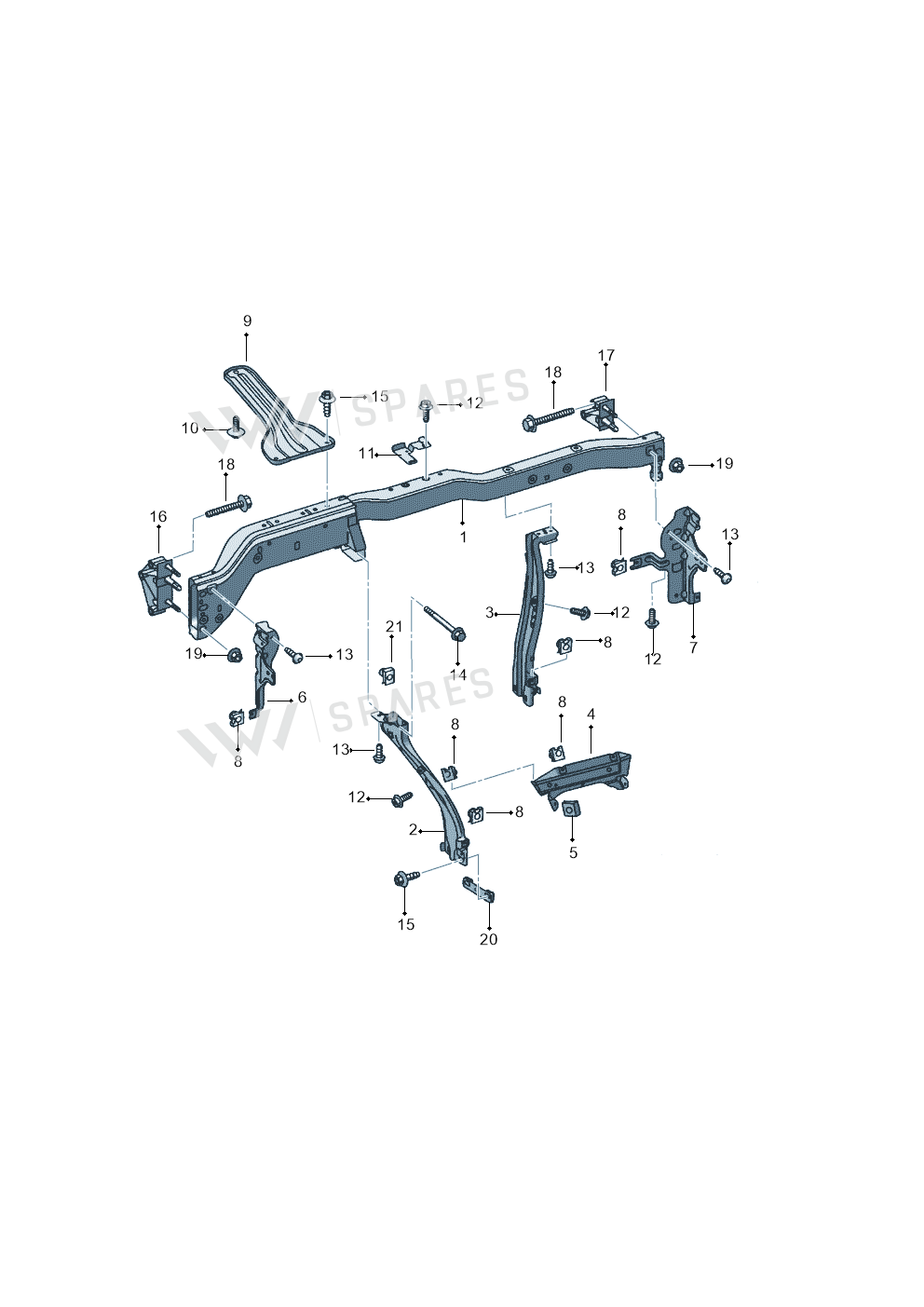

12 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Cross Member 1K1858045S
- 1Cross Member 1K1858045J
- 1Cross Member 1K2858045M
- 1Cross Member 1K2858045R
- 2BraceLeft5P2858853E
- 2BraceLeft5P1858853B
- 3BraceRight5P2858854B
- 3BraceRight5P1858854E
- 4Bearing 5P1858965A
- 4Bearing 5P1858965B
- 4Bearing 5P2858965A
- 4Bearing 5P2858965B
- 5Clip 5P0867633
- 6RetainingLeft5P2858513A
- 6RetainingLeft5P1858513A
- 7RetainingRight5P2858514A
- 7RetainingRight5P1858514A
- 8Part N90475903
- 9Brace 5P0858697C
- 10Bolt N90991501
- 11Bracket 5P0858037A
- 12Bolt N10473201
- 13Screw N10170303
- 13Bolt N90791201
- 14Bolt N90959901
- 15Bolt N91033301
- 16BracketLeft1K2857021D
- 16BracketLeft1K1857021D
- 17BracketRight1K2857022D
- 17BracketRight1K1857022D
- 19Part N90761102
- 20Part WHT000020
- 21Part N90301901
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 18 | ||
| Altea XL Reference | 2010-2013 | 18 | ||
| Leon Stylance | 2010-2012 | 10 | ||
| GOLF VARIANT 07> | 2007- | 10 | X | |
| ALTEA 07> | 2006- | 18 | ||
| LEON 06> | 2005- | 10 | ||
| JETTA 06> | 2005- | 10 | X | |
| Passat/4Motion | 2005-2007 | 21 | 5 | |
| TOLEDO 05> | 2004- | 18 | ||
| OCTAVIA/COMBI/4X4 04> | 2004- | 10 | X | 7PB |
| ALTEA | 2004-2006 | 18 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 10 | X |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; GOLF VARIANT 07> 2007-; ALTEA 07> 2006-; LEON 06> 2005-; JETTA 06> 2005-; Passat/4Motion 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Jetta "USA"05> 2005-.
