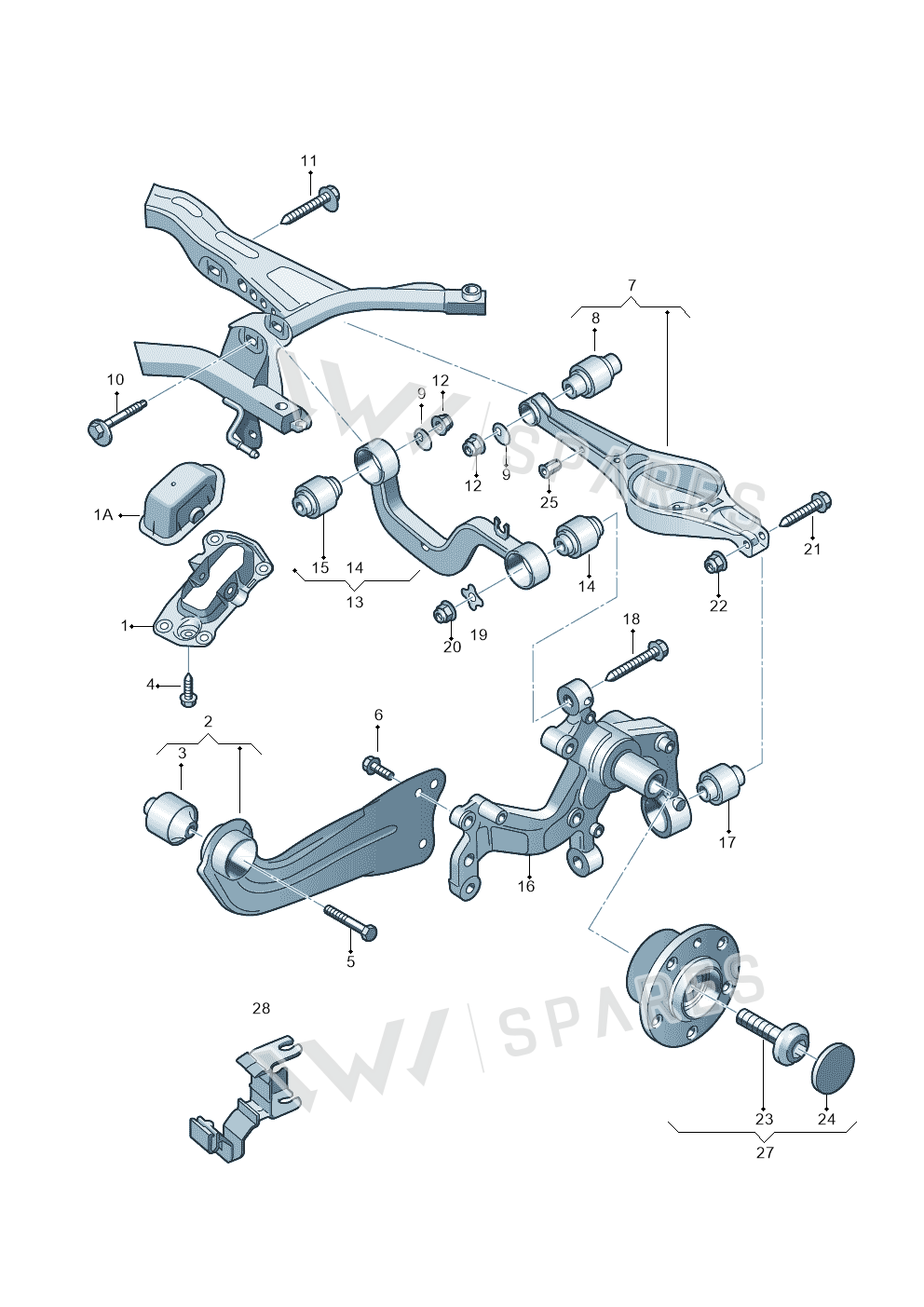

Hex Collared Bolt exploded parts diagram — Altea XL Reference · 2013-2013, position 21
Exploded view
Altea XL Reference · 2013-2013 · position 21Full diagram ↓
N10610702

N10610702 Hex Collared Bolt

£2.61
£2.16 excl. VAT
Supersession roadoldest to newest
  1. N10610701Not stocked
    Jun 2005
  2. N10610702This pageNot stocked
    May 2019
  3. N10628601Current number
Current part numberN10628601What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

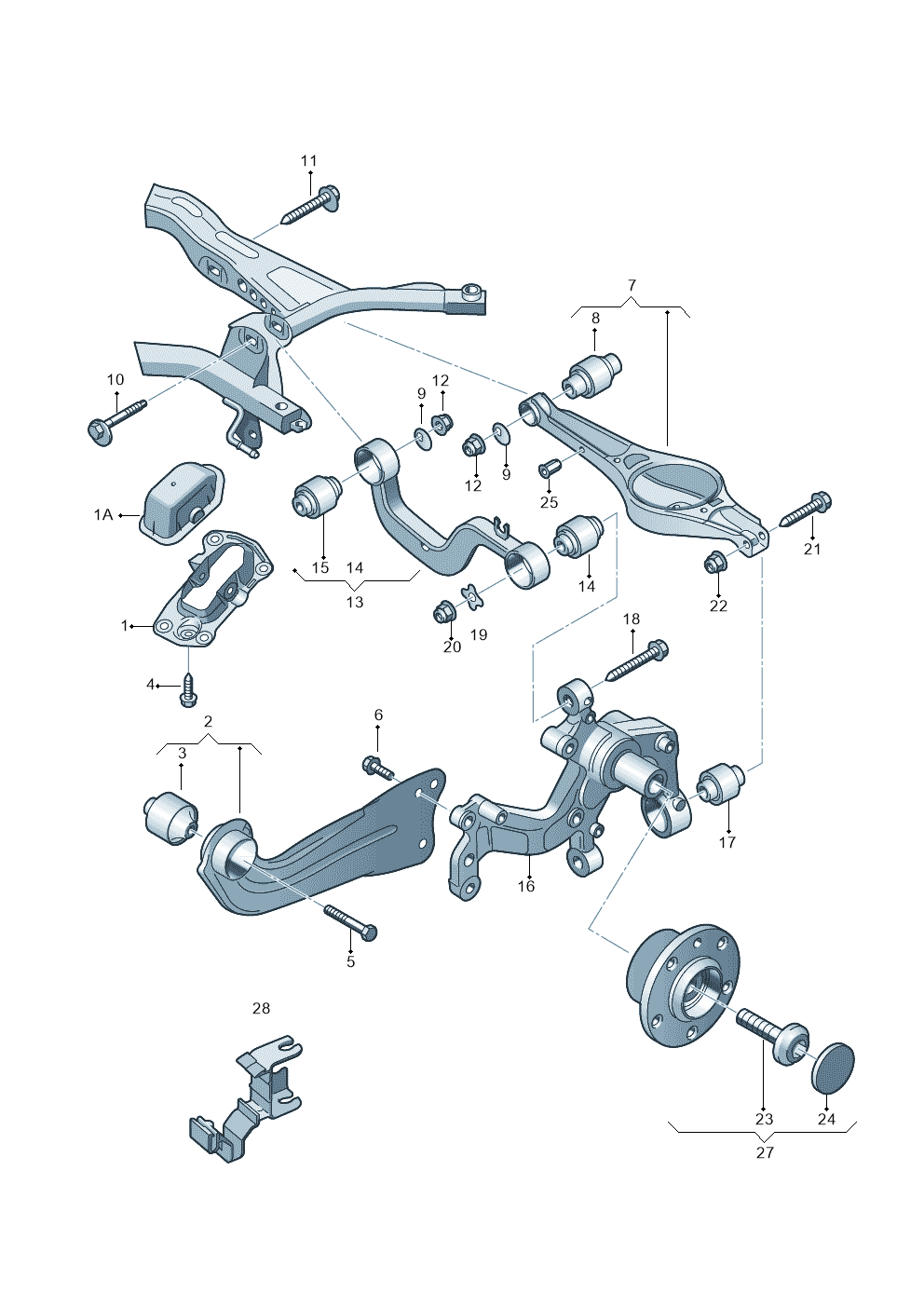

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly29
Vehicle fitment table8

Europe (7)

VehicleYearsPos.QtyPR
Altea XL Reference2013-2013212
Altea XL Reference2010-2013212
octavia ambiente2008-2013212
ALTEA 07>2006-212
GOLF PLUS 05>2005-2121X0
TOURAN2005-20062121X0
OCTAVIA/COMBI/4X4 04>2004-212

Other markets (1)

VehicleYearsPos.QtyPR
Golf/Rabbit2005-20072121X0

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; octavia ambiente 2008-2013; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; TOURAN 2005-2006; OCTAVIA/COMBI/4X4 04> 2004-; Golf/Rabbit 2005-2007.
