N90288602 Fillister Hd Bolt
- N90288602This pageNot stocked
Apr 2007 - N90288606Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

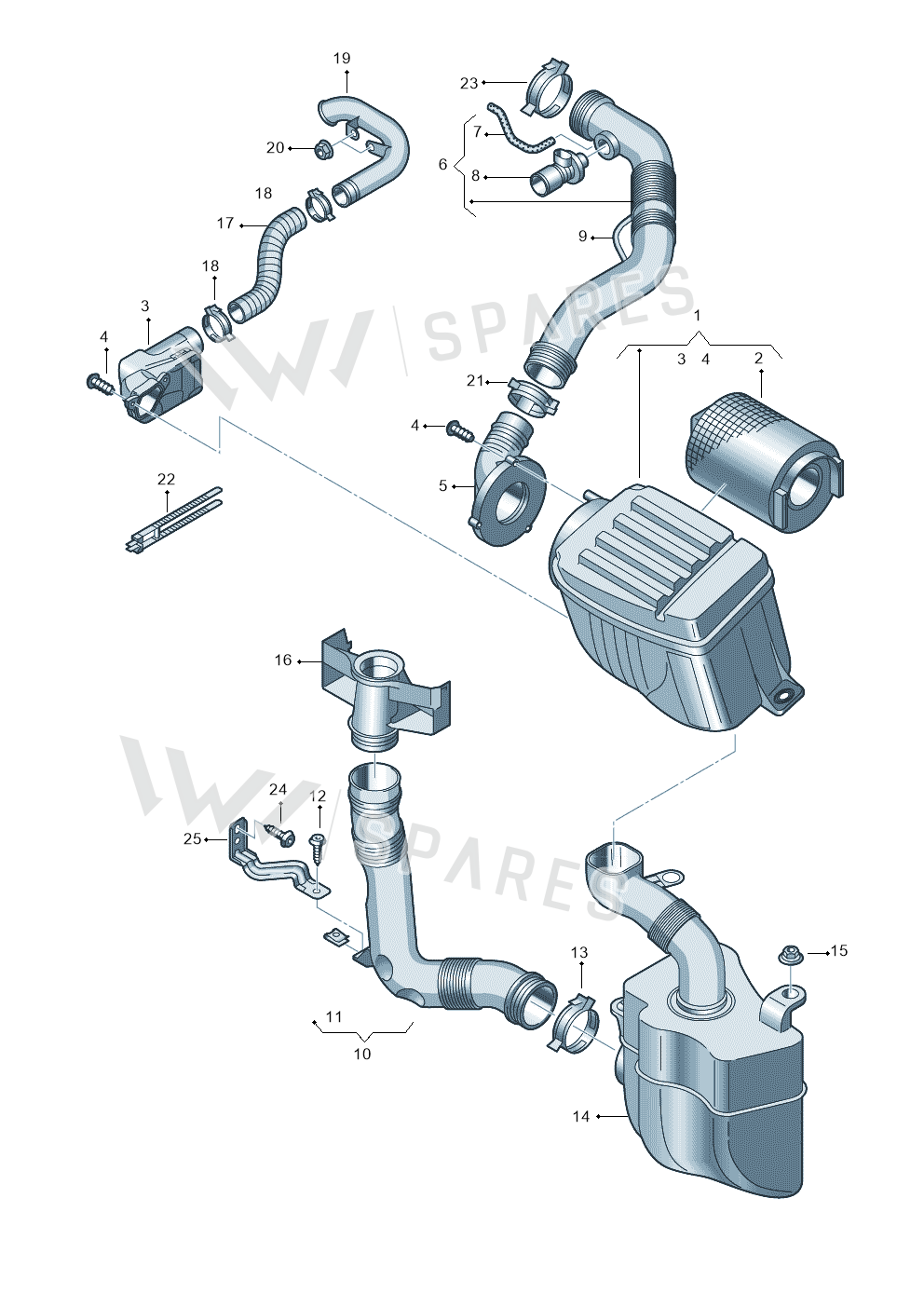

10 vehiclesFillister Hd Bolt — locate Fillister Hd Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Part 1K0129607C
- 1Air Filter 1F0129607
- 2Air Filter 1K0129620C
- 2Air Filter 1F0129620
- 3Control Box 1K0129594
- 5Elbow 1K0129610C
- 5Elbow 1K0129610B
- 6Intake Man 1K0129684AE
- 6Intake Man 1K0129684AF
- 6Intake Man 1K0129684H
- 7Hose 1K0103493
- 8Heat Element 037959984D
- 10Air Guide 1K0129618AJ
- 11Part N10469701
- 12Bolt N10354501
- 13Clamp N10296001
- 14Air Guide 1K0129622D
- 15Collar Nut N90908301
- 17Hose 1K0129087G
- 17Hose 1K0129087B
- 18Clamp N90926501
- 19Intake Man 1K0129617M
- 19Intake Man 1K0129617Q
- 19Intake Man 1K0129617F
- 20Collar Nut N01508311
- 20Bolt N10544201
- 21Clamp N90656101
- 22Binder 4A0820199
- 23Clamp N90656201
- 24Bolt N90817003
- 25Bracket 1K0129648A
Vehicle fitment table10
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 4 | X | ||
| LEON 06> | 2005- | 4 | X | T53 | |
| IBIZA 06> | 2005- | 22, 19 | 2 | T20 | |
| TOLEDO 05> | 2004- | 4 | X | ||
| IBIZA | 2001-2005 | 22, 19 | 2 | T20 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| MAGOTAN (PASSAT) 07> | 2007- | 4 | X | ||
| CADDY-FAW "CN" 05> | 2005- | 4, 7 | X | ||
| BORA-FAW "CN" 06> | 2005- | 4 | X | BWH,BJZ | TC2 |
| AUDI A6L "CN"05> | 2005- | 16 | 2 | ||
| AUDI A4 "CN."06> | 2005- | 15 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Fillister Hd Bolt is fitted on: ALTEA 07> 2006-; LEON 06> 2005-; IBIZA 06> 2005-; TOLEDO 05> 2004-; IBIZA 2001-2005; MAGOTAN (PASSAT) 07> 2007-; CADDY-FAW "CN" 05> 2005-; BORA-FAW "CN" 06> 2005-; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-.
