N90346901 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

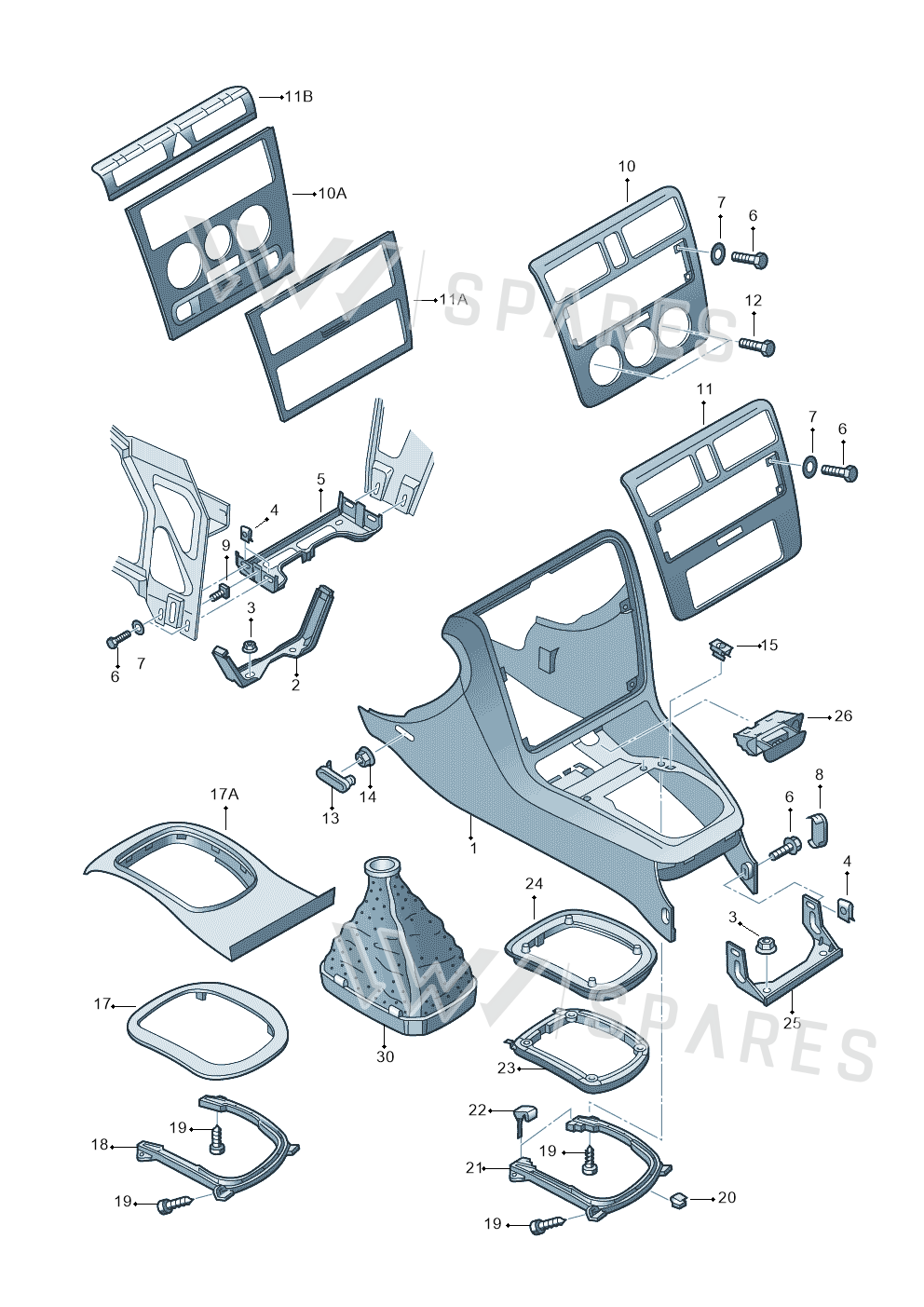

31 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Console 8D0863243
- 2Retainer 8D0863251B
- 3Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 4Part N90356203
- 5Retainer 8D0863255A
- 6Bolt N0102139
- 7Washer N0121301
- 8Cover 8D0863276
- 9Screw 4A0863314A
- 10Trim 8D0863263A
- 10Trim 8D0863263H
- 10Trim 8D1863263A
- 10Trim 8D1863263E
- 10Trim 8D2863263A
- 10Trim 8D2863263B
- 10Trim 8D1863263B
- 11Part 8D0863263G
- 11Part 8D0863263L
- 11Trim 8D0863263D
- 13Cover 8D0863273
- 14Collar Nut 171857026A
- 15Clip 4A0857249A
- 17Cover 8D0863269
- 18Support 8D0863287A
- 19Screw N90130801
- 20Spring 8D0863286
- 21Support 8D0863287
- 22Grommet 8D0863275
- 23Frame 8D0863279C
- 24Frame 8D0864281B
- 25Retainer 8D0863531A
Vehicle fitment table38
Europe (29)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A4/Avant F8D-W-> | 1997-1998 | 12 | 1 |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 12 | 1 |
| Audi A8 | 1996-1998 | 13 | 2 |
| Audi A8 qu. | 1996-1998 | 13 | 2 |
| Audi S6 plus qu. 97 | 1996-1997 | 13 | 2 |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 13 | 2 |
| Audi A6/Wagon F >4A-W | 1996-1997 | 13 | 2 |
| Audi A4 F>8D-W-.. | 1995-1997 | 12 | 2 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 12 | 2 |
| Audi A6/Wagon 96 | 1995-1996 | 13 | 2 |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 13 | 2 |
| AUDI 80 Av.Rs2 qu. | 1994-1995 | 22 | 2 |
| Audi A6/Wagon 95 | 1994-1995 | 13 | 2 |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 13 | 2 |
| Audi 90 qu. 95 | 1994-1995 | 22 | 2 |
| Audi 90 | 1993-1995 | 22 | 2 |
| Audi 100/Wagon 94 | 1993-1994 | 13 | 2 |
| Audi 90 qu. | 1992-1994 | 22 | 2 |
| Audi 100/Wagon qu. | 1992-1994 | 13 | 2 |
| Audi 90 93 | 1992-1993 | 22 | 2 |
| Audi 100/Wagon 93 | 1992-1993 | 13 | 2 |
| Audi 100/Wagon 92 | 1991-1992 | 13 | 2 |
| Audi 100/Wagon qu. 92 | 1991-1992 | 13 | 2 |
| Audi V8 | 1989-1993 | 4, 13 | 2 |
| Audi 100/Wagon | 1989-1990 | 4 | 2 |
| Audi 200 Turbo | 1988-1990 | 4 | 2 |
| Audi 100/Wagon qu. | 1988-1990 | 4 | 2 |
| Audi 200T/Wagon qu. | 1988-1990 | 4 | 2 |
| Audi 100/Wagon 89 | 1988-1989 | 4 | 2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI 200 CHINA | 1995-1999 | 4 | 2 |
| AUDI 100 (CHINA) | 1988-1995 | 4 | 2 |
Listed without a diagram position (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Coupe quattro/3 96 | 1995-1995 | ||
| Audi Coupe/3 | 1994-1995 | ||
| Audi 80/90 | 1989-1991 | ||
| Audi Coupe qu. | 1989-1991 | ||
| AUDI COUPE/3 | 1988-1994 | ||
| Audi 80/90 qu. | 1987-1991 | ||
| Audi 80/90 | 1987-1989 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi S6 plus qu. 97 1996-1997; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; AUDI 80 Av.Rs2 qu. 1994-1995; Audi A6/Wagon 95 1994-1995; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi 90 qu. 95 1994-1995; Audi 90 1993-1995; Audi 100/Wagon 94 1993-1994; Audi 90 qu. 1992-1994; Audi 100/Wagon qu. 1992-1994; Audi 90 93 1992-1993; Audi 100/Wagon 93 1992-1993; Audi 100/Wagon 92 1991-1992; Audi 100/Wagon qu. 92 1991-1992; Audi V8 1989-1993; Audi 100/Wagon 1989-1990; Audi 200 Turbo 1988-1990; Audi 100/Wagon qu. 1988-1990; Audi 200T/Wagon qu. 1988-1990; Audi 100/Wagon 89 1988-1989; AUDI 200 CHINA 1995-1999; AUDI 100 (CHINA) 1988-1995.
