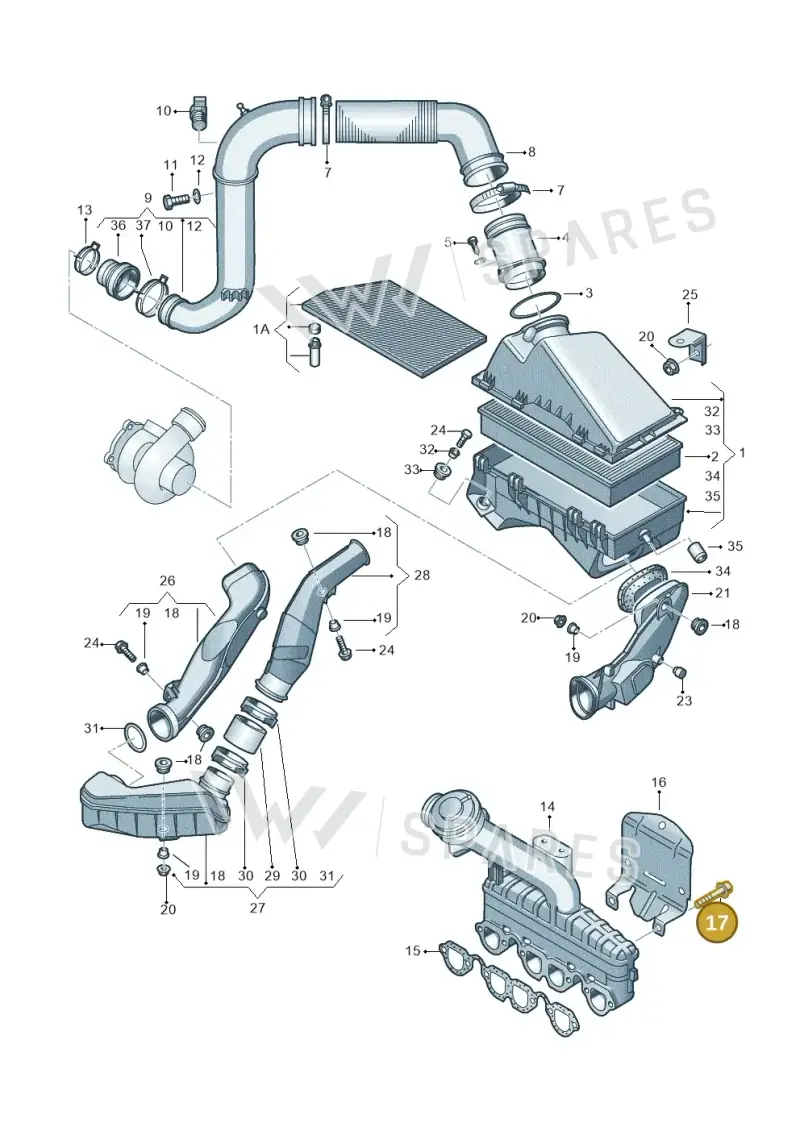

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen bolt, part number N90424201. This is a bolt used in assembly. Genuine OEM parts ensure exact fit and factory quality.
Technical details
- Category
- Seats
- Country of origin
- Germany
- Customs (HS) code
- 73181548
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5.3 × 1.3 × 1.3 cm
- Shipping weight
- 0.02 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
59 vehiclesScrew — locate N90424201 Volkswagen Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly27
- 1Connection 038129713J
- 2Seal 028129717D
- 3Heat Sh 038129969A
- 6Air Meter 038906461B
- 6Air Meter 038906461BX
- 7Air Filter 6Q0129607AS
- 7Air Filter 6Q0129607AT
- 8Air Filter 6Q0129620
- 9Bush 6Q0129266
- 11Buffer 036129689B
- 12Bolt N10482701
- 13Screw N0902985
- 14Air Guide 6Q0129618G
- 15Air Guide 6Q0129621B
- 16Screw N10419701
- 17Seal Ring 028129646
- 18Bracket 6Q0129728C
- 19Collar Nut N10609203
- 20Clamp N10296001
- 21Pipe 6Q0129684B
- 22Hose 6Q0129654AD
- 23Pipe 1J0906391B
- 24Bolt N10189403
- 25Clamp N90656001
- 26Buffer 6Q0129689
- 28Hose 1J0129627D
- 29Clamp N90656201
Vehicle fitment table59
Europe (36)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Reference | 2008-2011 | 4 | 6 | TG0 | |
| ROOMSTER 06> | 2006- | 4 | 6 | AXR,BSW | T5X |
| FABIA/COMBI NF 07> | 2006- | 4 | 6 | BSW | T5X |
| New Beetle 06> | 2005- | 17 | 6 | ||
| New Beetle Cabrio. 06> | 2005- | 17 | 6 | D3W | |
| POLO CLASSIC 06> | 2005- | 17 | 6 | ||
| IBIZA 06> | 2005- | 4 | 6 | 0G | |
| CORDOBA 06> | 2005- | 4 | 6 | D3 | |
| FABIA/COMBI 05> | 2004- | 4 | 6 | ||
| New Beetle Cabrio. | 2003-2005 | 17 | 6 | MS7 | |
| CORDOBA/SE241 | 2002-2005 | 4 | 6 | D3 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 17 | 6 | MS7 | |
| New Beetle | 2001-2005 | 17 | 6 | ||
| IBIZA | 2001-2005 | 4 | 6 | D3 | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 17 | 6 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 17 | 6 | ||
| FABIA/COMBI | 1999-2004 | 4 | 6 | ||
| CORDOBA/VARIO | 1999-2002 | 17 | 6 | ||
| IBIZA | 1999-2002 | 17 | |||
| POLO CLASSIC/VARIANT | 1999-2001 | 17 | 6 | ||
| Audi A4/Avant | 1999-2001 | 36 | X | ||
| New Beetle | 1998-2001 | 17 | 6 | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 17 | 6 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 36 | X | ||
| TRANSPORTER SYNCRO | 1996-2003 | 26, 7 | 3 | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 17 | 6 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 17 | 6 | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 4 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 4 | 1 | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 4 | 1 | ||
| Transporter 96 | 1996-1996 | 26, 7, 1 | 3 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 17, 4 | 6 | ||
| TRANSPORTER SYNCRO | 1995-1995 | 26 | 3 | ||
| Golf/Ecomatic 95 | 1994-1995 | 33 | 6 | ||
| Transporter syncro | 1992-1995 | 26 | 3 | ||
| TOLEDO SEAT | 1991-1996 | 4 | 1 |
Other markets (19)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Brasil "BR."08> | 2007- | 17 | 6 | ||
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 4 | 6 | MS7 | |
| Golf "BR.","USA"03>07 | 2002-2007 | 17 | 6 | AGR | |
| BORA (FAW) | 2001-2006 | 17 | 6 | ||
| Jetta USA | 2001-2005 | 17 | 6 | MD1 | |
| Golf BR/US | 2001-2002 | 17 | 6 | ||
| AUDI A3-BRASIL. | 2000-2005 | 17 | |||
| Golf BR/US | 1999-2001 | 17 | 6 | ||
| Eurovan | 1998-2003 | 26, 7, 1 | 3 | ||
| Jetta "USA"99>01 | 1998-2001 | 17 | 6 | ||
| Eurovan 98 | 1997-1998 | 26, 7, 1 | 3 | ||
| CITI GOLF "ZA"M.96> | 1996- | 21B, 4 | 4 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 3 | 6 | ||
| Eurovan | 1996-1997 | 26, 7, 1 | 3 | ||
| CADDY-PICKUP "ZA" 96> | 1995- | 21B | 4 | ||
| TYPE 2 "ZA" | 1995-2003 | 20 | 1 | ||
| Eurovan F>>70-T 96 | 1995-1995 | 26, 7, 1 | 3 | ||
| Eurovan 95 | 1994-1995 | 26, 1 | 3 | ||
| Eurovan | 1991-1994 | 26, 1 | 3 |
Platform / generic diagrams (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 701 platform | 26 | ||||
| 6K0 platform | 4 | 1 | AHU | ||
| 6K0 platform | 17 | 6 | |||
| 6K0 platform | 17 | 6 | AGR |
