N90431901 Hexagon Head Bolt (Combi)
- N90431901This pageNot stocked
Jul 1996 - N90504802Discontinued
May 2026
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

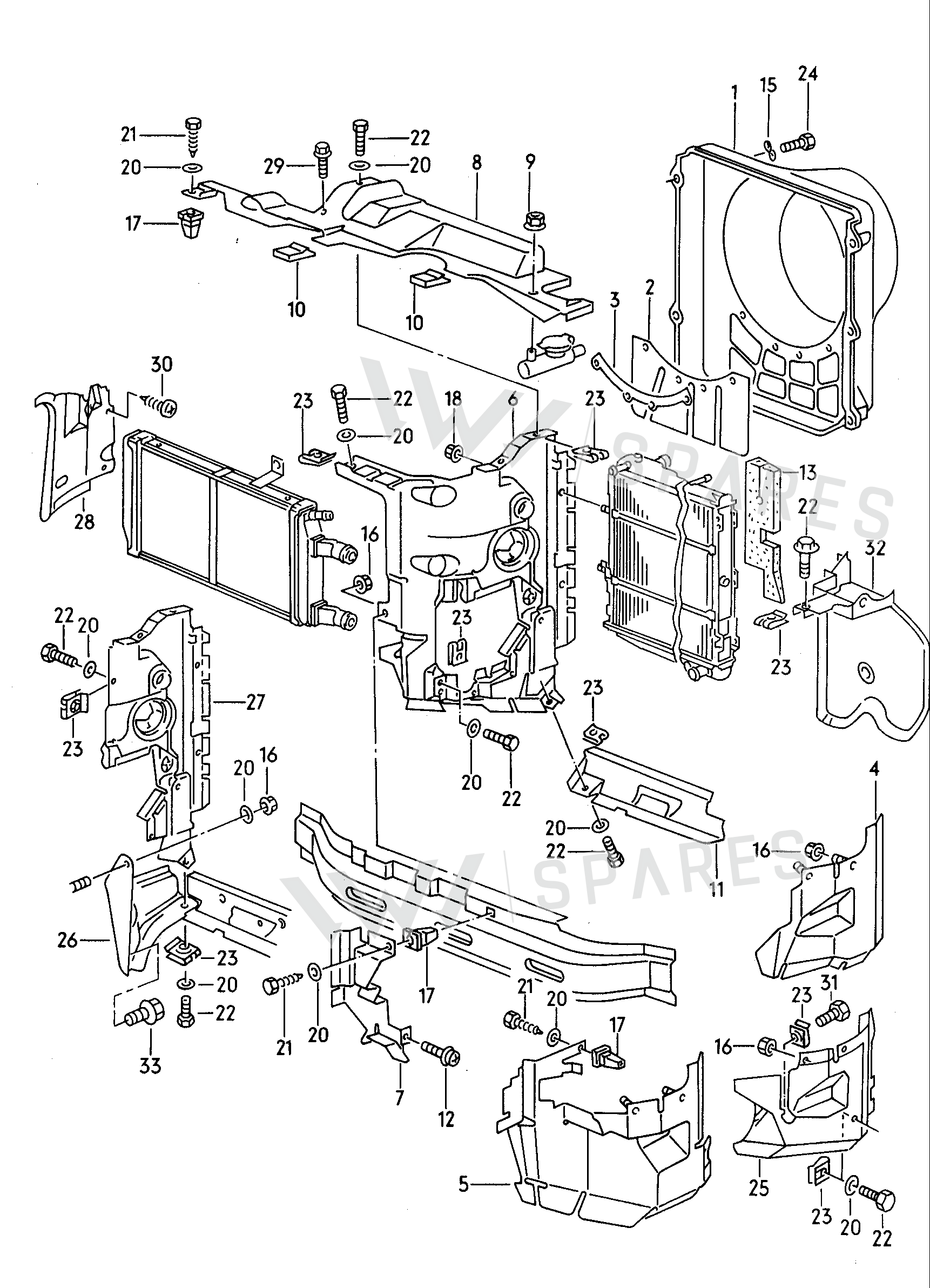

6 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Fan Ring 893121207A
- 1Fan Ring 896121205
- 1Fan Ring 893121207H
- 2Part 823121225
- 3Bracket 803121227
- 4Air GuideLeft8A0121283
- 6Air GuideRight8A0121282A
- 8Air Guide 8A0121293
- 10Clip 431121304A
- 11Air Guide 8A0121333F
- 11Air Guide 8A0121333
- 15Washer N01152423
- 16Collar Nut 171201969
- 17Part 811807577C
- 18Collar Nut N0211761
- 20Washer N0116653
- 21Screw N0438851
- 22Bolt N90504802
- 23Part N90419002
- 24Bolt N01021527
- 25Air GuideLeft8A0121283D
- 26Air GuideRight8A0121284F
- 27Air GuideRight8A0121284H
- 31Bolt N10155901
- 32Air GuideLeft8A0121283A
- 33Bolt N10100503
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi 90 qu. 95 | 1994-1995 | 22, 24 | X |
| Audi Cabrio. | 1993-1998 | 25 | X |
| Audi 90 | 1993-1995 | 25 | X |
| Audi 90 qu. | 1992-1994 | 22, 24 | X |
| Audi 90 93 | 1992-1993 | 25 | X |
| AUDI COUPE/3 | 1988-1994 | 22 | X |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: Audi 90 qu. 95 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; Audi 90 qu. 1992-1994; Audi 90 93 1992-1993; AUDI COUPE/3 1988-1994.
