N90528701 Square Head Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

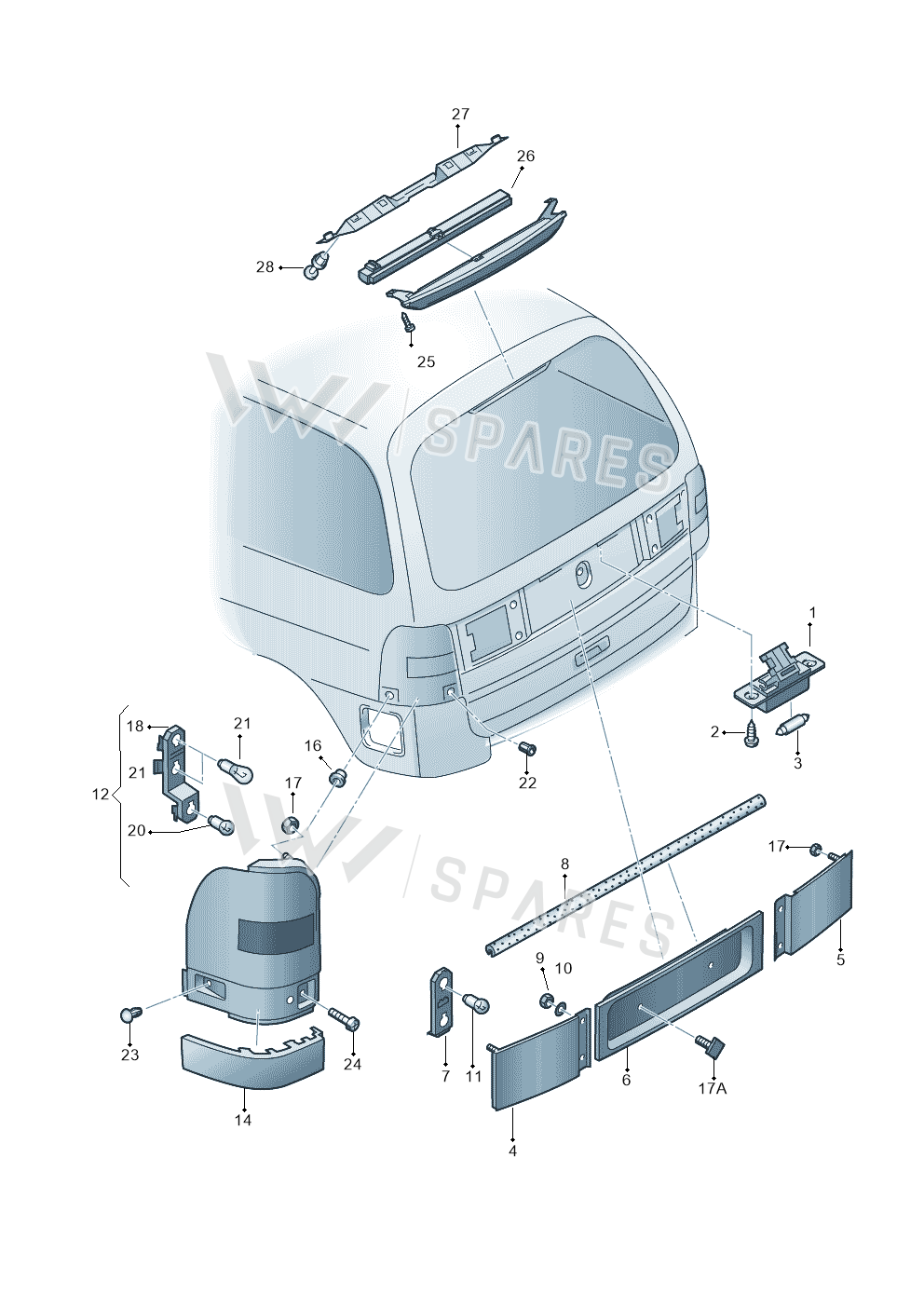

11 vehiclesSquare Head Bolt — locate Square Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly22
- 1Light 7M3943021B
- 2Screw N0139605
- 3Bulb N0177252
- 4PartLeft7M3945093D
- 5PartRight7M4945094D
- 9Part N01100521
- 10Washer N01166516
- 11Bulb N0177322
- 14PanelLeft7M3807871A
- 14PanelRight7M3807872A
- 16Grommet 357853586B
- 17Collar Nut N10017304
- 18Bulb CarrierRight7M3945258
- 20Bulb N0177186
- 21Bulb N0177328
- 22Part N0304001
- 23Spring Rivet N0385501
- 24Bolt N90825901
- 25Housing 1J6945121
- 26Brakelight 1J6945131C
- 27Adapter 7M3945135B
- 28Screw N01396626
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Alhambra | 2006-2010 | 17A | X | |
| SHARAN/4MOTION | 2005- | 17A | 4 | |
| ALHAMBRA/4MOTION | 2005- | 17A | X | |
| SHARAN/4MOTION | 2002-2005 | 17A | X | |
| ALHAMBRA/4MOTION | 2002-2005 | 17A | X | |
| GOLF VAR./VENTO | 1996-1999 | 17 | 7 | VENTO |
| Golf Var./Vento 96 | 1995-1996 | 17 | 4 | VENTO |
| Golf Var./Vento 95 | 1994-1995 | 17 | 4 | VENTO |
| Jetta GLX 94 | 1993-1994 | 17 | 7 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 17 | 4 | JETTA |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 17 | 4 | JETTA |
Diagrams & fitment data powered by oemdiagrams.com
Square Head Bolt is fitted on: Alhambra 2006-2010; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; GOLF VAR./VENTO 1996-1999; Golf Var./Vento 96 1995-1996; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
