N90542201 Sheer Bolt
- N90542201This pageNot stocked
Mar 2012 - N90584502Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

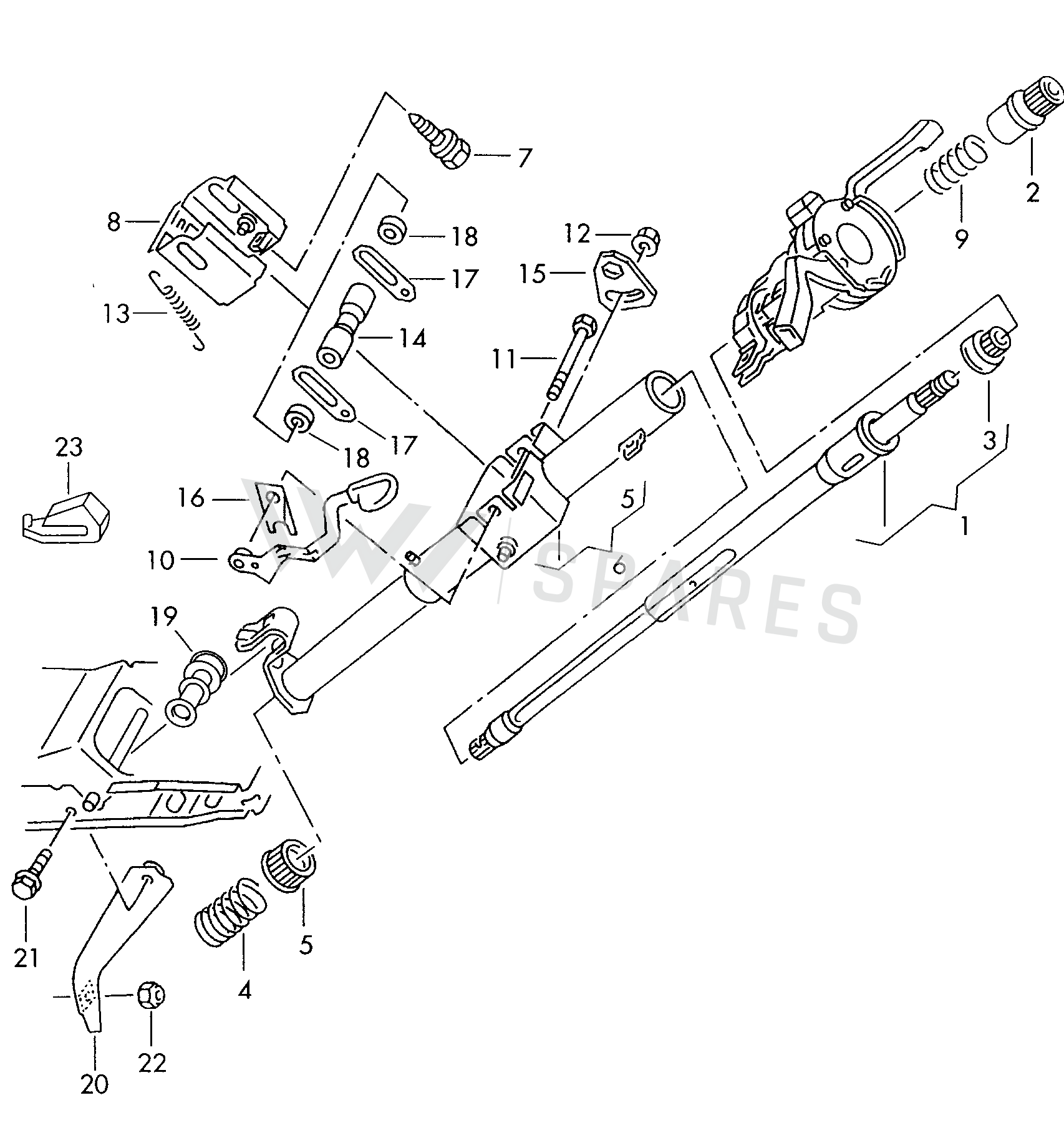

14 vehiclesSheer Bolt — locate Sheer Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 2Sleeve 191419514
- 4Press Spring 1H0419343A
- 5Steer Bear 1H0419517A
- 6Tube 1HM419561C
- 8Bracket 1H0419571A
- 11Bolt 1H0419623A
- 12Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 13Spring 1H0419625B
- 14Sleeve 1H0419633A
- 15Plate 357419635
- 16Shim 1H0419648B
- 16Shim 1H0419648A
- 17Retaining 1H0419701
- 18Washer 1H0419705
- 19Bush 1H1419599A
- 20Plate 1HM419555B
- 21Bolt N0195382
- 22Collar Nut N90226403
Vehicle fitment table14
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF CABRIO | 2002-2002 | 7 | 2 | 2C1 |
| GOLF VAR./VENTO | 1996-1999 | 7 | 2 | |
| Golf | 1996-1997 | 4, 7 | 2 | |
| Golf 96 | 1995-1996 | 4, 7 | 2 | |
| Golf Var./Vento 96 | 1995-1996 | 4, 7 | 2 | |
| Golf Cabrio | 1994-1996 | 7 | 2 | |
| Golf/Ecomatic 95 | 1994-1995 | 4, 7 | 2 | |
| Golf/Var. syncro | 1993-1997 | 4, 7 | 2 | |
| Jetta GLX 94 | 1993-1994 | 4, 7 | 2 | |
| GOLF/Ecomatic | 1991-1994 | 4, 7 | 2 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 7 | 2 | |
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 4, 7 | 2 | |
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 7 | 2 | |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 4, 7 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Sheer Bolt is fitted on: GOLF CABRIO 2002-2002; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Golf Cabrio "USA","Mex"99>02 1998-2002; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
