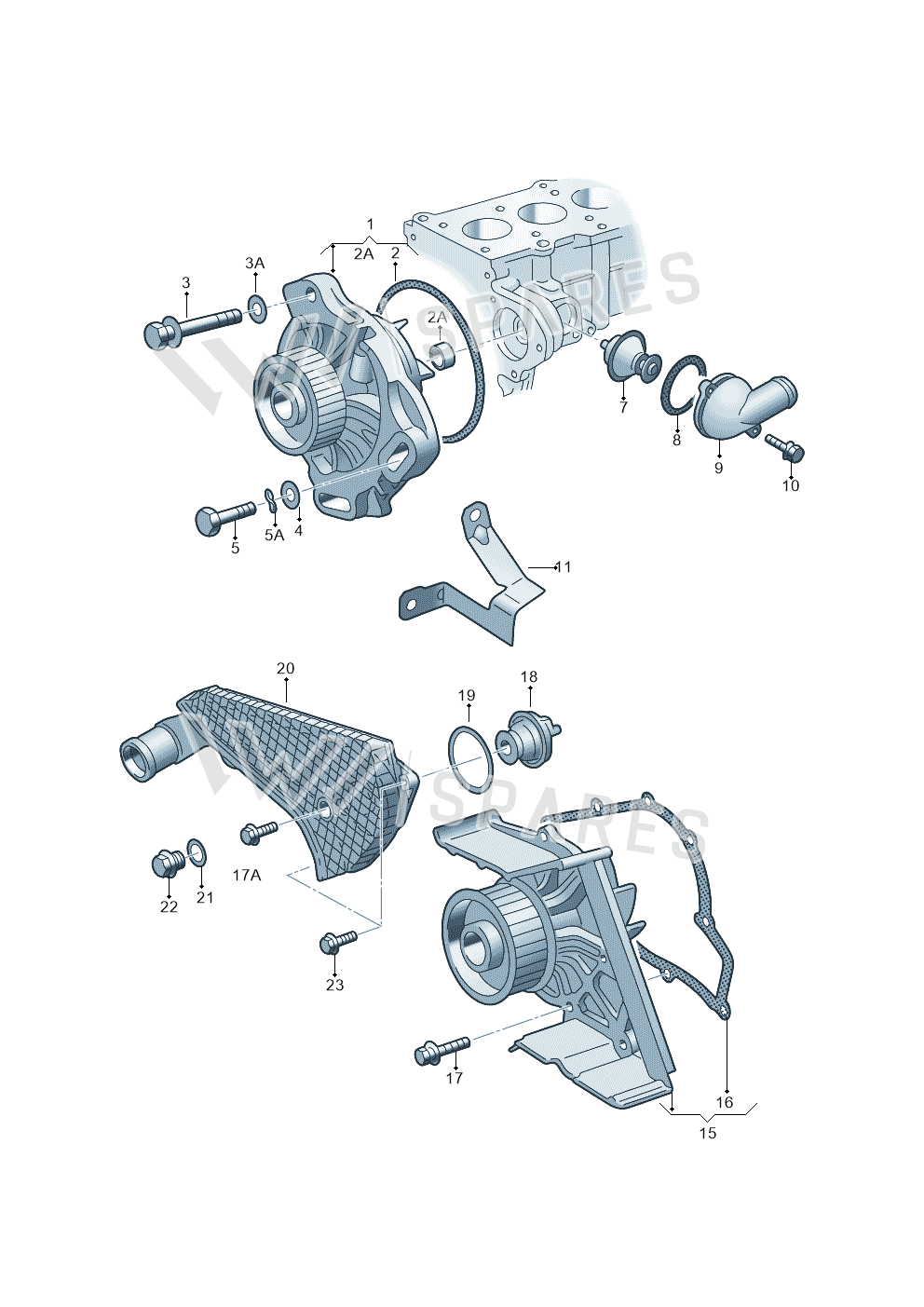

O-Ring exploded parts diagram — Audi 90 qu. · 1992-1994, position 8
Exploded view
Audi 90 qu. · 1992-1994 · position 8Full diagram ↓
N90560801

N90560801 O-Ring

£1.00
£0.83 excl. VAT
Supersession roadoldest to newest
  1. 034121119Not stocked
    Nov 1992
  2. N90560801This pageNot stocked
    Mar 1994
  3. N90136802Current number
Current part numberN90136802What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

5 vehicles

O-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.

Parts in this assembly16
Vehicle fitment table5

Europe (5)

VehicleYearsPos.Qty
Audi 90 qu.1992-199481
Audi 5000 Turbo1984-198881
Audi 4000 S/CS qu.1984-1987131
Audi 5000 Turbo1979-198213, 17, 111
LT 28-40 F>28-d-0072731975-1982101

Diagrams & fitment data powered by oemdiagrams.com

O-Ring is fitted on: Audi 90 qu. 1992-1994; Audi 5000 Turbo 1984-1988; Audi 4000 S/CS qu. 1984-1987; Audi 5000 Turbo 1979-1982; LT 28-40 F>28-d-007273 1975-1982.
