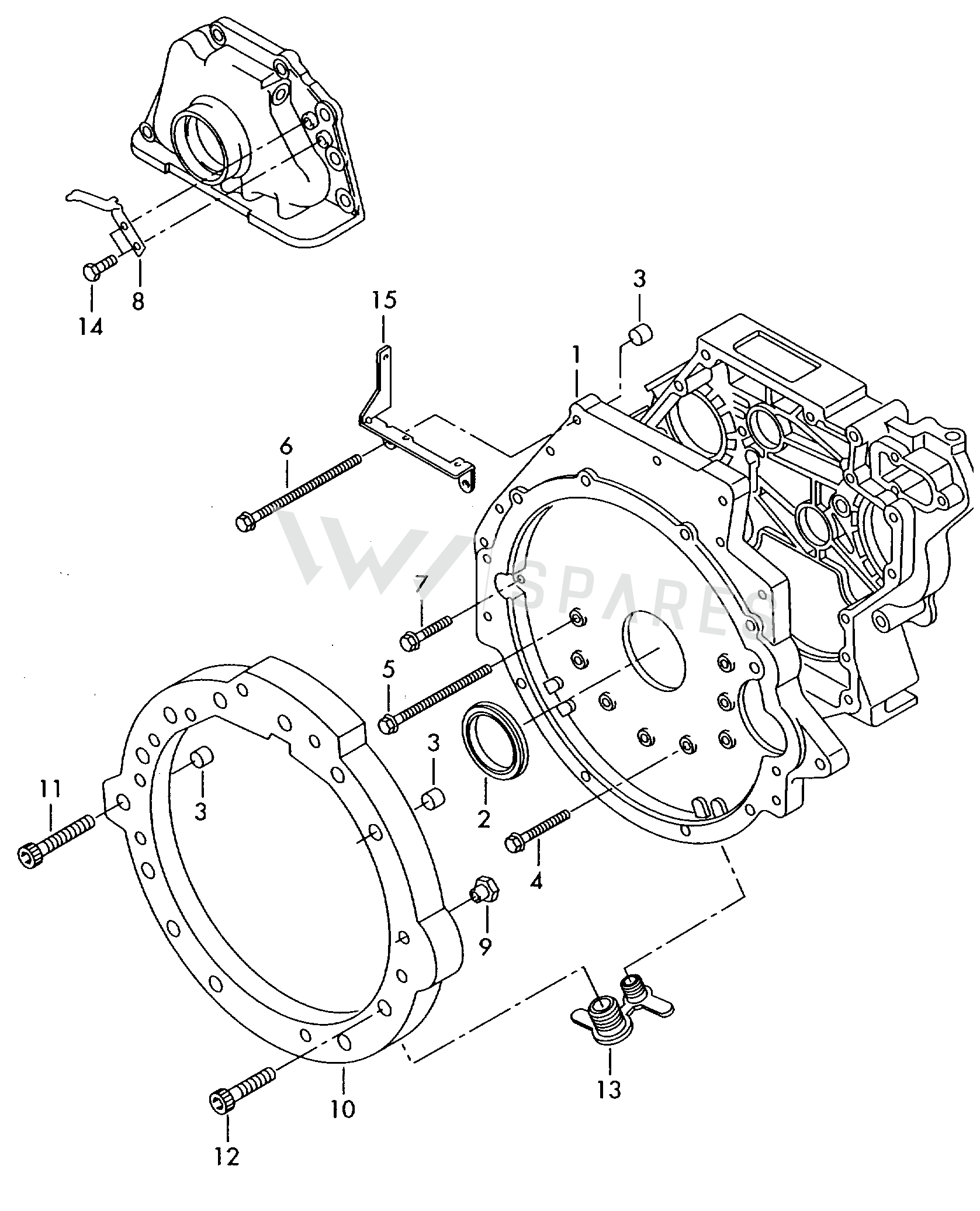

Hex Collared Bolt exploded parts diagram — LT, LT 4X4 · 2003-2006, position 4
Exploded view
LT, LT 4X4 · 2003-2006 · position 4Full diagram ↓
N90570401

N90570401 Hex Collared Bolt

£1.89
£1.56 excl. VAT
Supersession roadoldest to newest
  1. N90600301Not stocked
    Dec 1998
  2. N90570401This pageDiscontinued
    Mar 2021
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

10 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly13
Vehicle fitment table10

Europe (7)

VehicleYearsPos.QtyRemarkPR
LT, LT 4X42003-200646MZ2
LT, LT 4X41996-200346
TRANSPORTER SYNCRO1996-200321
ALHAMBRA1996-200026
SHARAN/SYNCRO1995-2000264ANU
TRANSPORTER SYNCRO1995-199521
Transporter syncro1992-199521

Other markets (3)

VehicleYearsPos.QtyRemarkPR
Eurovan F>>70-T 961995-199534, 7A1
Eurovan 951994-199534, 7A1
Eurovan1991-199434, 7A1

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: LT, LT 4X4 2003-2006; LT, LT 4X4 1996-2003; TRANSPORTER SYNCRO 1996-2003; ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; TRANSPORTER SYNCRO 1995-1995; Transporter syncro 1992-1995; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Eurovan 1991-1994.
