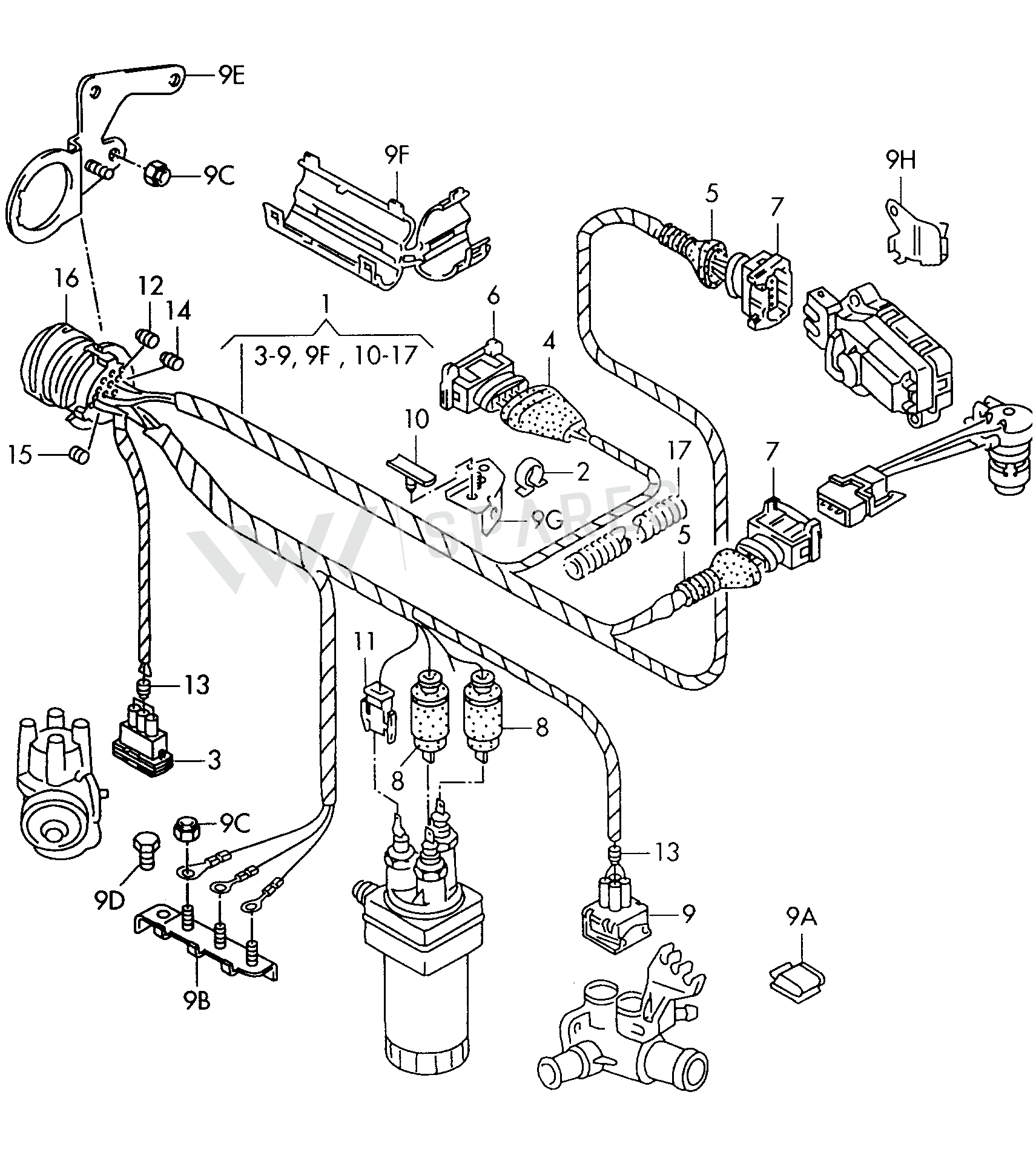

Corrugated Pipe exploded parts diagram — Passat · 1994-1997, position 17
Exploded view
Passat · 1994-1997 · position 17Full diagram ↓
N90593001

N90593001 Corrugated Pipe

£2.03
£1.68 excl. VAT
Supersession road4 numbers since 1997
  1. N90593001This pageNot stocked
    Apr 1997
  2. N10287101Not stocked
    May 1997
  3. N90773601Not stocked
    Oct 2009
  4. N10732701Current number
Current part numberN10732701What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

Corrugated Pipe — locate Corrugated Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly23
Vehicle fitment table8

Europe (8)

VehicleYearsPos.Qty
Passat1994-199717, 6*
Golf Cabrio1994-199617*
Golf/Ecomatic 951994-199560*
Golf Var./Vento 951994-19955A*
Golf/Var. syncro1993-199717*
Jetta GLX 941993-199417, 5A*
GOLF/Ecomatic1991-19945A, 60*
Corrado1989-19954*

Diagrams & fitment data powered by oemdiagrams.com

Corrugated Pipe is fitted on: Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Golf/Var. syncro 1993-1997; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994; Corrado 1989-1995.
