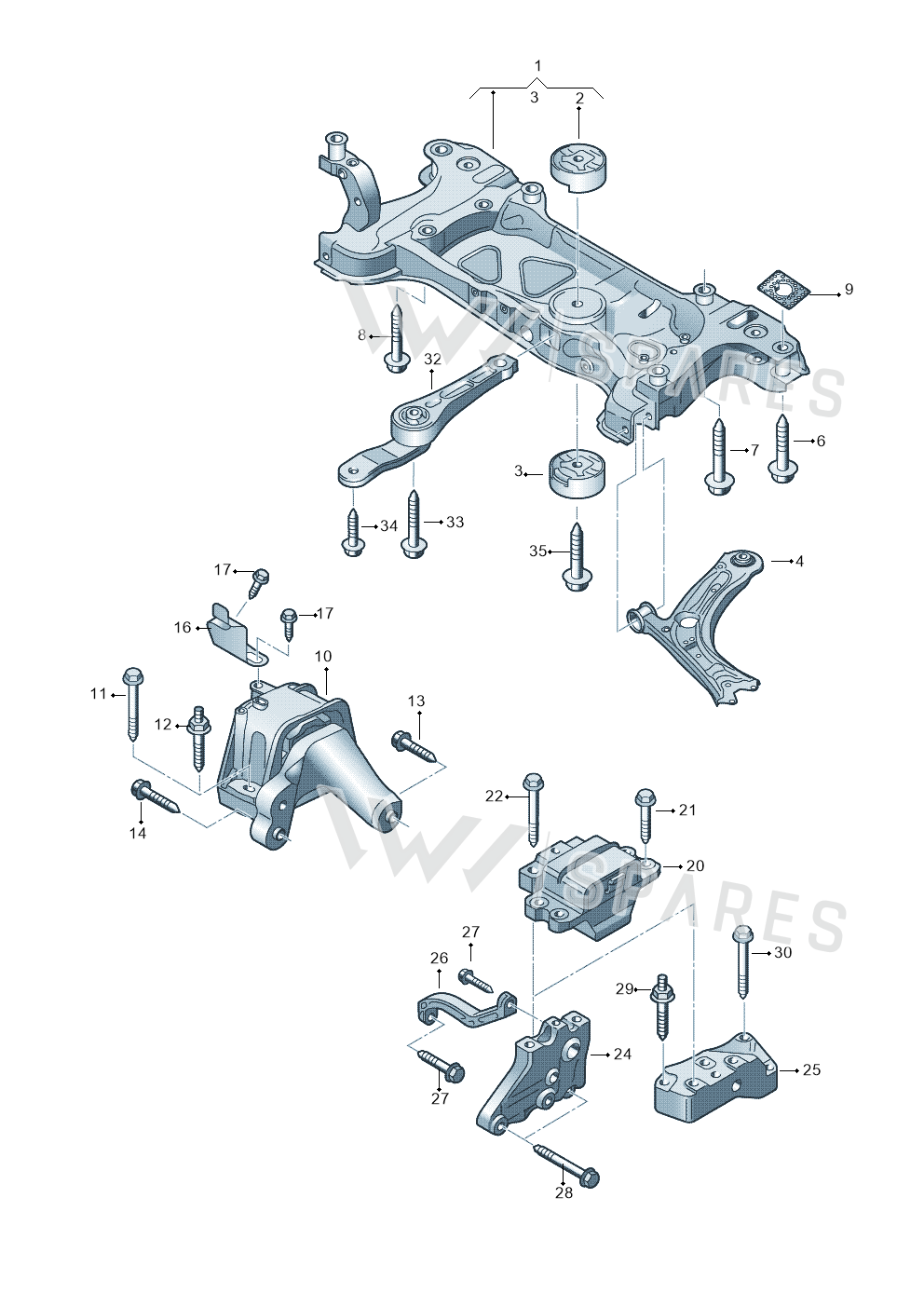

Hex Collared Bolt exploded parts diagram — jetta · 2014-2017, position 21
Exploded view
jetta · 2014-2017 · position 21Full diagram ↓
N90596901

N90596901 Hex Collared Bolt

£2.24
£1.85 excl. VAT
Supersession road4 numbers since 1993
  1. N10242801Not stocked
    Oct 1993
  2. N90596901This pageNot stocked
    Jan 1999
  3. N90596902Not stocked
    Apr 2008
  4. N90596906Current number
Current part numberN90596906What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

14 vehicles

Hex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly28
Vehicle fitment table14

Europe (14)

VehicleYearsPos.QtyPR
jetta2014-2017214
CADDY2004-8XT1Q,9AA
Audi TT Coupe/Roadster2002-200661G1A
AUDI A3/S3/QUATTRO1996-200015, 61
GOLF VAR./VENTO1996-1999152
Golf1996-1997152
Golf 961995-1996152
Golf Var./Vento 961995-1996152
POLO1994-1999113
Golf Cabrio1994-1996382
Golf/Ecomatic 951994-199584
Golf Var./Vento 951994-199584
Jetta GLX 941993-199482
GOLF/Ecomatic1991-199482

Diagrams & fitment data powered by oemdiagrams.com

Hex Collared Bolt is fitted on: jetta 2014-2017; CADDY 2004-; Audi TT Coupe/Roadster 2002-2006; AUDI A3/S3/QUATTRO 1996-2000; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; POLO 1994-1999; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; GOLF/Ecomatic 1991-1994.
