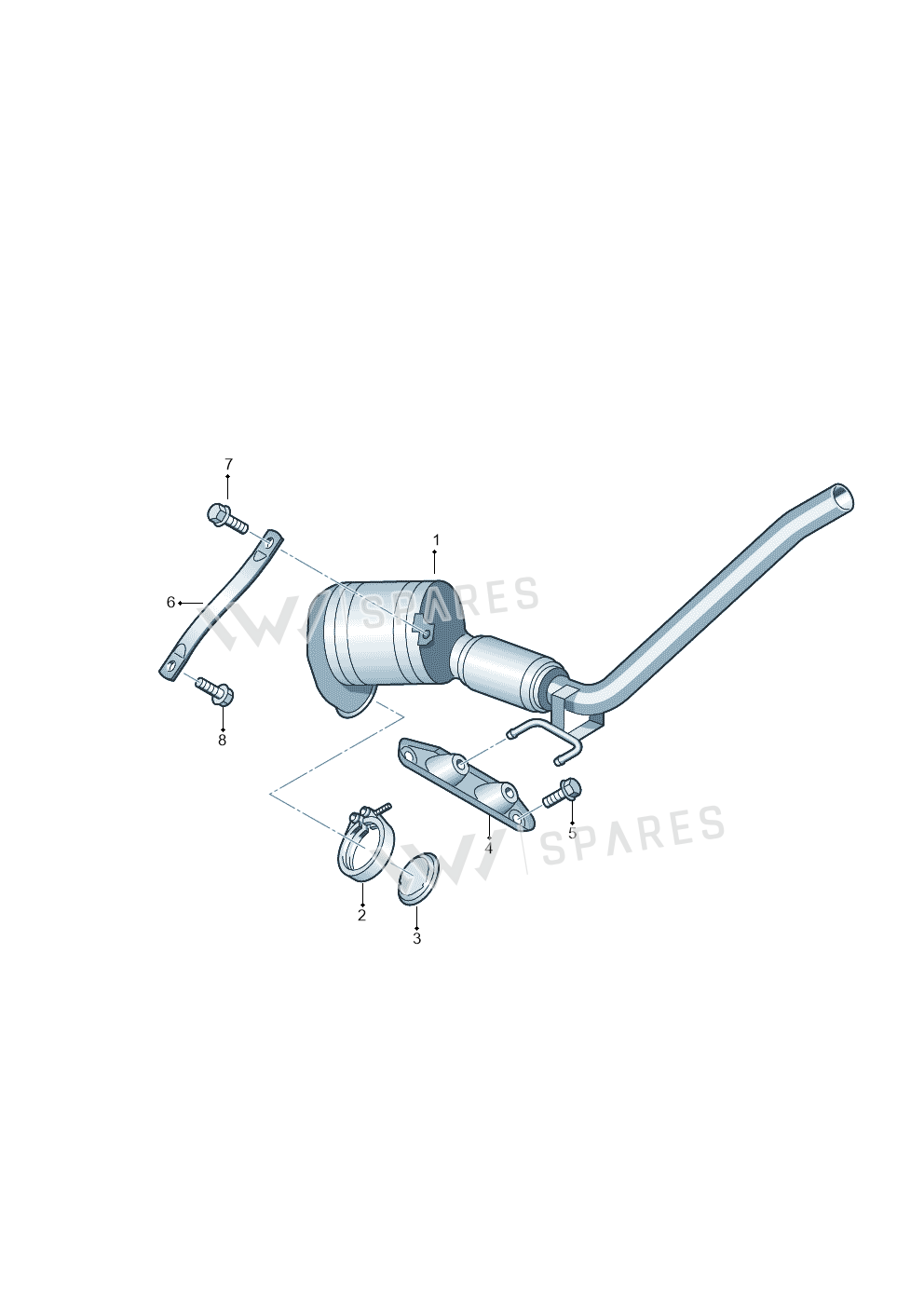

Hexagon Head Bolt (Combi) exploded parts diagram — Altea XL Reference · 2010-2013, position 7
Exploded view
Altea XL Reference · 2010-2013 · position 7Full diagram ↓
N90630501

N90630501 Hexagon Head Bolt (Combi)

£1.29
£1.07 excl. VAT
Supersession road4 numbers since 2003
  1. 1K0253047CNot stocked
    Aug 2003
  2. 1K0253047JNot stocked
    Oct 2004
  3. N90630501This pageNot stocked
    Feb 2018
  4. N90630504Current number
Current part numberN90630504What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

22 vehicles

Hexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly11
Vehicle fitment table22

Europe (21)

VehicleYearsPos.QtyRemarkPR
Altea XL Reference2010-201371
Leon Stylance2010-201271
Audi A4/S4 Cabrio./qu. 07>2006-342G0Z
ALTEA 07>2006-8, 71
Audi A4/S4/Av./qu. 05>2005-342BRBTQ0
LEON 06>2005-8, 71
GOLF PLUS 05>2005-71
Passat/4Motion2005-20078, 51
Audi A6/S6/Avant/qu. 05>2004-342PR:
TOLEDO 05>2004-8, 71
ALTEA2004-20068, 71
TOURAN2003-20058, 71
GOLF2003-200581
Audi A6/Wagon/quattro2001-2004362
Audi A4/S4/Av./qu.2001-2004251T17
Audi A6 Allroad qu.2000-200536, 292EHT,ETH,FGZ,FT
Audi A4/Avant1999-2001362
Audi A6/Avant1997-2001362
Audi A6/Av.qu.F4B-W->1997-2001362
Audi A81996-199854
Audi A8 qu.1996-199854

Other markets (1)

VehicleYearsPos.QtyRemarkPR
Golf/Rabbit2005-200781

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Head Bolt (Combi) is fitted on: Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Audi A4/S4 Cabrio./qu. 07> 2006-; ALTEA 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; LEON 06> 2005-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; Audi A6/S6/Avant/qu. 05> 2004-; TOLEDO 05> 2004-; ALTEA 2004-2006; TOURAN 2003-2005; GOLF 2003-2005; Audi A6/Wagon/quattro 2001-2004; Audi A4/S4/Av./qu. 2001-2004; Audi A6 Allroad qu. 2000-2005; Audi A4/Avant 1999-2001; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Golf/Rabbit 2005-2007.
