N90686702 Spring Band Clamp
- N90686702This pageNot stocked
Feb 2007 - N90686701Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

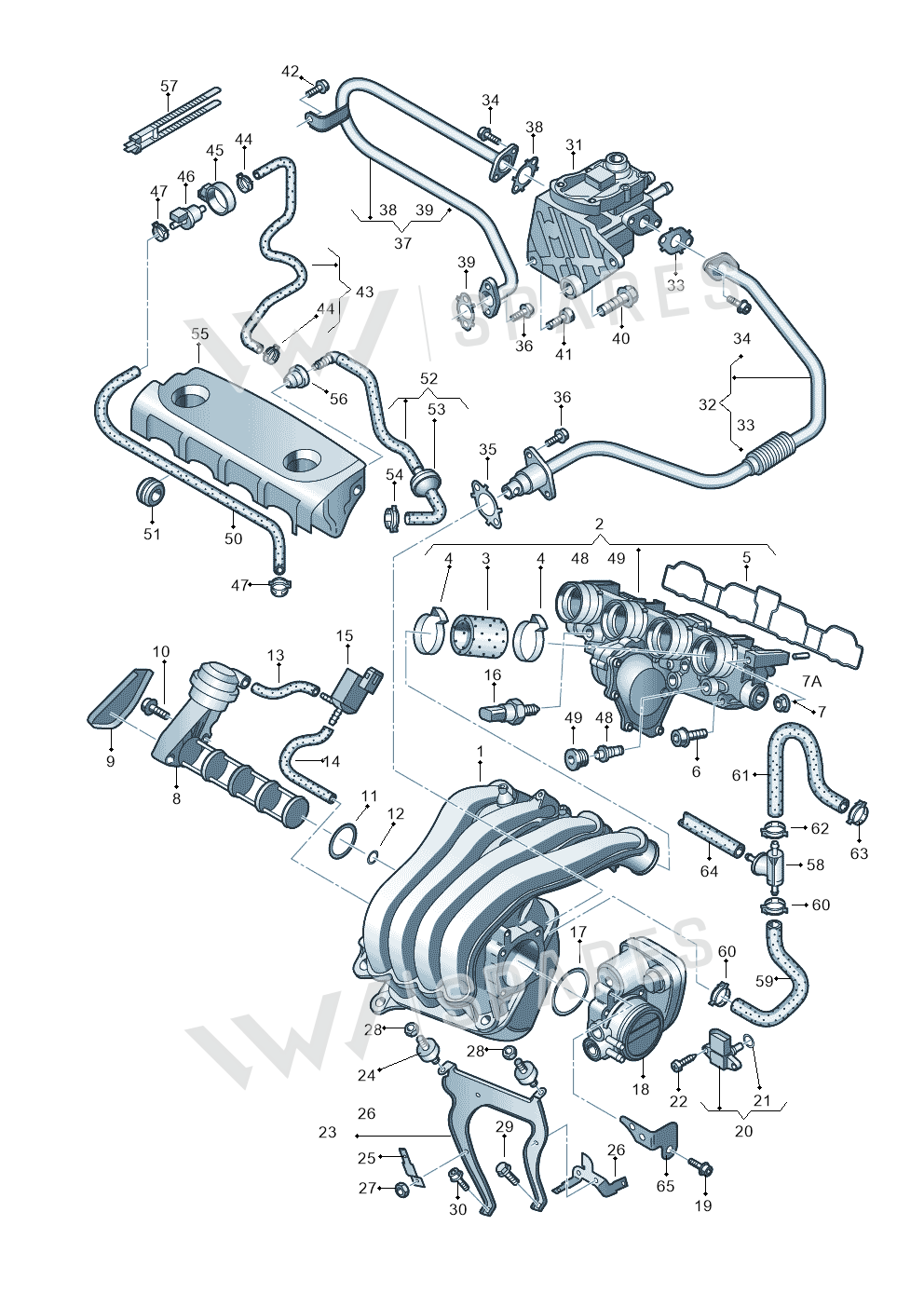

6 vehiclesSpring Band Clamp — locate Spring Band Clamp in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Manifold 06F133213G
- 1Manifold 06F133213H
- 2Part 06D133209T
- 3Coupl Piece 06D133299D
- 4Clip 058133301E
- 5Seal 06D129717D
- 6Bolt N91089601
- 7Collar Nut N01508213
- 7ABolt N10581601
- 8Drive 06F133619A
- 9Cover 06F133212
- 10Bolt 058133479A
- 11Seal Ring 06F133148
- 12Seal Ring 06F133148A
- 15Valve 037906283C
- 16Sensor 03C906051D
- 16Sensor 06D906051A
- 17Seal 036133073
- 18Thr Flap 06F133062B
- 18Thr Flap 06F133062
- 19Screw WHT002263
- 19Screw N90823601
- 20Sensor 06B906051
- 21Seal Ring 036906149D
- 22Screw N10507201
- 23Support 06F129722B
- 24Rubber Bush 431121273B
- 25Part 06F971845A
- 26Part 06F971804B
- 27Part N01100636
- 28Collar Nut N10340103
- 29Bolt N10063205
- 30Screw N0147203
- 31Valve 06F131503B
- 32PipeLeft06F131521M
- 33Seal 06F131547
- 34Screw N10323102
- 35Seal 06F133557
- 36Screw N10248003
- 37Pipe 06F131521N
- 38Seal 06F131547A
- 39Seal 06A131547Q
- 40Bolt N10324302
- 40Bolt N10324304
- 41Screw N10238805
- 42Screw N10225401
- 43Hose 1K0133366K
- 43Hose 1K0133366AT
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| OCTAVIA/COMBI/4X4 04> | 2004- | 44 | X | ||
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 48 | X | T15 | |
| Audi TT Coupe/Roadster | 2002-2006 | 51 | X | T33 | |
| Jetta/Wagon | 2002-2006 | 16 | 1 | AZG | |
| Audi A6/Wagon/quattro | 2001-2004 | 20 | X | T7S |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 53, 8 | X |
Diagrams & fitment data powered by oemdiagrams.com
Spring Band Clamp is fitted on: OCTAVIA/COMBI/4X4 04> 2004-; Audi A4/S4 Cabrio./qu. 2002-2006; Audi TT Coupe/Roadster 2002-2006; Jetta/Wagon 2002-2006; Audi A6/Wagon/quattro 2001-2004; 1J0 platform.
