N90688202 Hexagon Head Bolt (Combi)
- N90688202This pageNot stocked
- N10157902Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

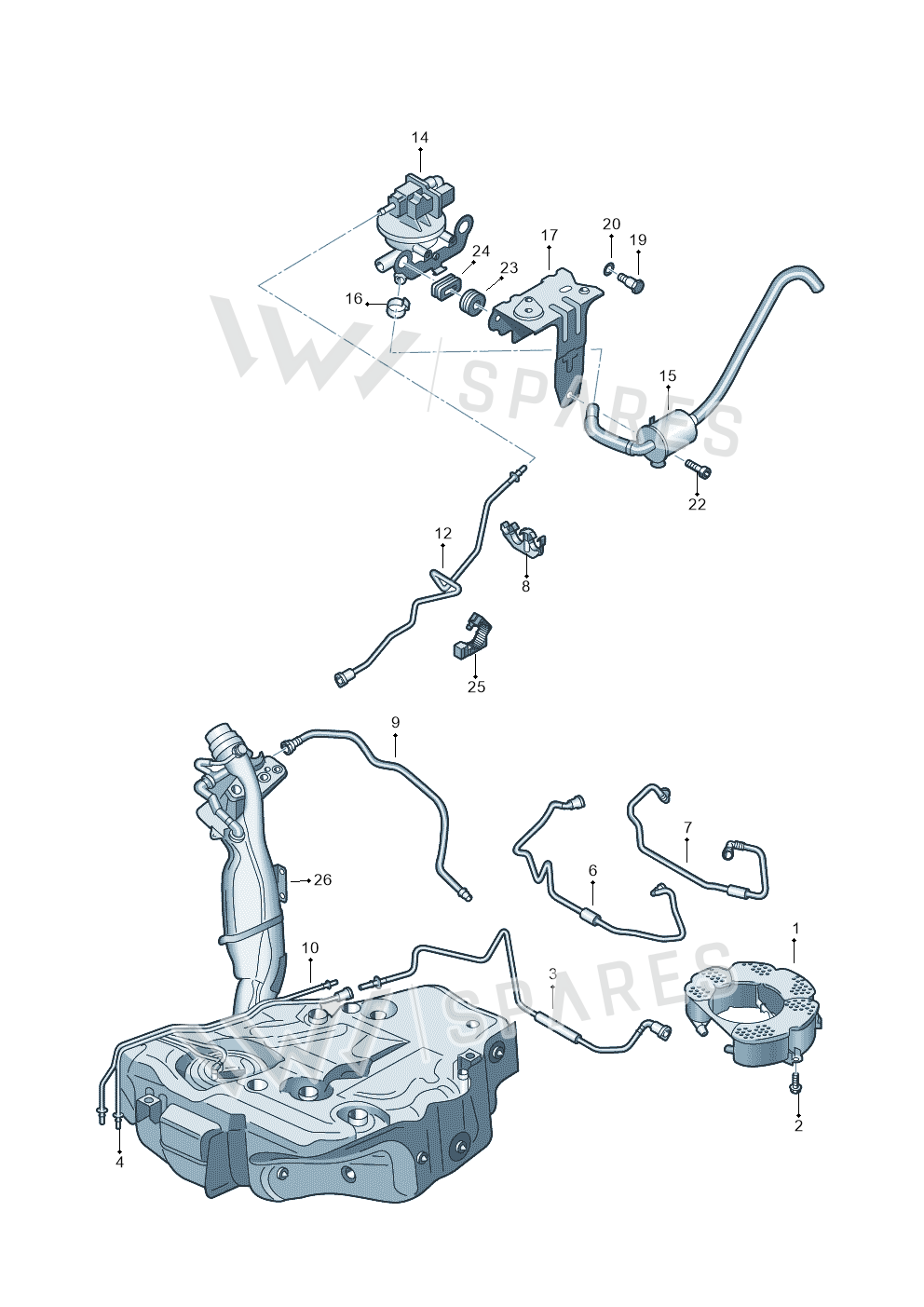

6 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Container 1K0201797B
- 3Pipe 1Q0201931D
- 4Pipe 1K0201931H
- 6Line 1Q0201160E
- 7Line 1Q0201160D
- 8Clip 1Q0201449
- 9Line 1Q0201160
- 10Press Pipe 1Q0201983A
- 12Press Pipe 1Q0201983B
- 14Checkpump 1Q0906200A
- 15Air Filter 1Q0906311
- 16Clip N10255601
- 17Bracket 1Q0906468A
- 19Bolt 3B0201714A
- 20Washer N01167026
- 22Bolt N90598804
- 23Grommet 3B0201339
- 24Grommet 1K0906376
- 25Retainer 1Q0907429
- 26Prot Plate 1Q0201974
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| EOS 2.0 | 2008-2010 | 2 | 3 | 1E4 |
| EOS-Cabriolet-Coupe | 2006- | 2 | 3 | 1E4 |
| AUDI A6 QU.ALLROAD 07> | 2006- | 6 | 1 | 8X0 |
| CADDY | 2004- | 10 | 2 | TG |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 6 | 1 | |
| POLO-BRASIL | 2002-2006 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: EOS 2.0 2008-2010; EOS-Cabriolet-Coupe 2006-; AUDI A6 QU.ALLROAD 07> 2006-; CADDY 2004-; AUDI A6L "CN"05> 2005-; POLO-BRASIL 2002-2006.
