N90749803 Oval Hexagon Socket Head Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

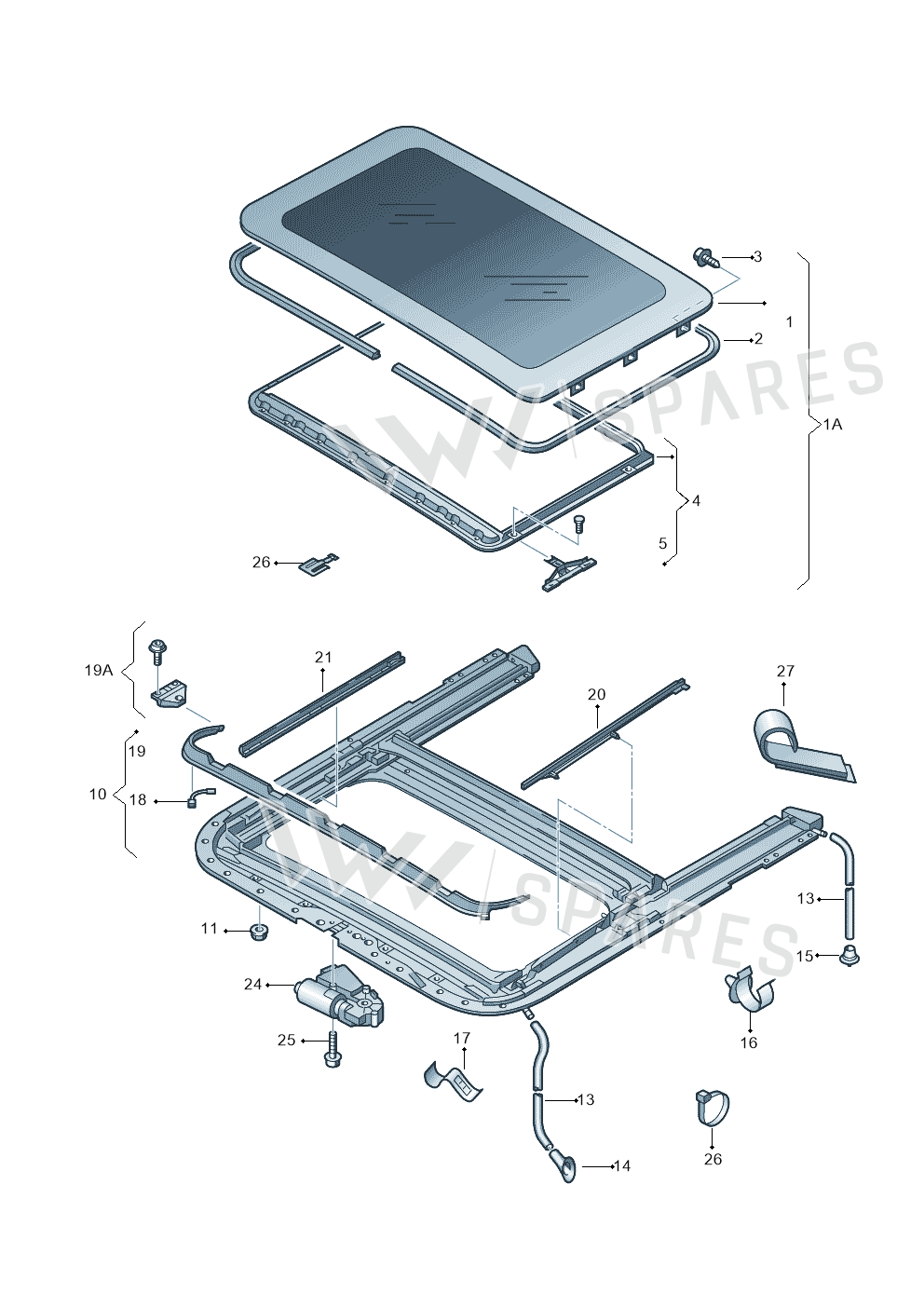

10 vehiclesOval Hexagon Socket Head Bolt — locate Oval Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly35
- 1Glasspanel 8E0877071B
- 1Glasspanel 3T0877071A
- 1Glasspanel 3T0877071B
- 1AGlass Slid 3T0877041B
- 1AGlass Slid 3T0877041
- 1ASlid Roof 3T0877041A
- 1ASlid Roof 3T0877041C
- 2Seal 8E0877297
- 3Bolt 8D0877721C
- 4Frame 3T0877255B
- 4Frame 3T0877255
- 4Frame 3T0877255A
- 4Frame 3T0877255C
- 5Glidepiece 4B0877165
- 10Frame 3T0877049
- 10Frame 3T0877049A
- 13Hose 3T0877201A
- 13HoseLeft3T5877203
- 13Hose 3T5877203A
- 13HoseRight3T5877204
- 14Drain Tube 8E0877242
- 15Valve 1K0877236
- 16Clip 3B7877237
- 17Bracket 1K6877244
- 18Press Spring 8T8877695
- 19Deflector 3T0877651
- 19AFixing Set 8T8898644
- 20BellowsLeft8D9877781A
- 20BellowsLeft8D9877781
- 21BellowsRight8D9877782A
- 21BellowsRight8D9877782
- 25Bolt 8D9877721
- 26Spring 4B0877975A
- 26Spring 7L6877975
- 27Bracket 7H0843969A
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| superb | 2013-2015 | 11 | 1 | |
| Superb Ambition | 2009-2015 | 11 | 1 | 3FE |
| Fabia Ambiente | 2009-2013 | 17 | 1 | 0EJ |
| Fabia Jingrui | 2008-2014 | 17 | 1 | |
| superb comfort | 2008-2013 | 11 | 1 | |
| Cayenne | 2007-2010 | 24 | 6 | |
| ROOMSTER 06> | 2006- | 17 | 1 | 0EJ |
| FABIA/COMBI NF 07> | 2006- | 17 | 1 | 0EJ |
| IBIZA 06> | 2005- | 17 | 1 | G0C,G0K |
| Cayenne | 2002-2006 | 24 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Oval Hexagon Socket Head Bolt is fitted on: superb 2013-2015; Superb Ambition 2009-2015; Fabia Ambiente 2009-2013; Fabia Jingrui 2008-2014; superb comfort 2008-2013; Cayenne 2007-2010; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; IBIZA 06> 2005-; Cayenne 2002-2006.
