N90770002 Hexagon Socket Head Panel Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

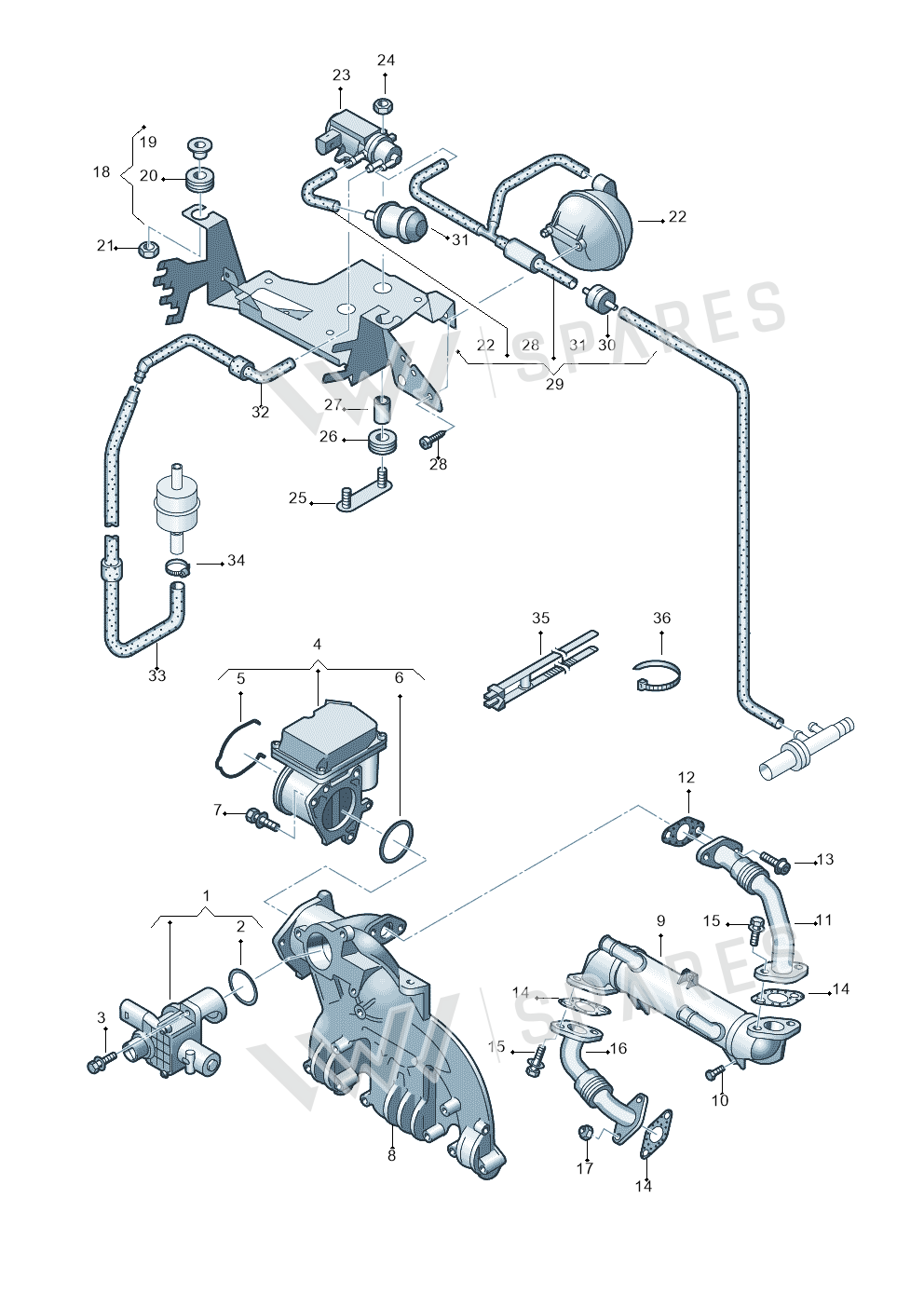

12 vehiclesHexagon Socket Head Panel Bolt — locate Hexagon Socket Head Panel Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Valve 038131501BF
- 2Seal Ring N90062702
- 3Bolt N10124408
- 4Thr Flap 03G128063G
- 5Clip 1K0145769C
- 6Seal 03L131547B
- 6Seal Ring N90521604
- 7Sckt Bolt N10408602
- 9Radiator 038131513J
- 10Part N01470213
- 11Pipe 03G131521AC
- 12Seal 069131547D
- 13Screw N91048802
- 14Seal 038131547A
- 16Pipe 038131521BD
- 17Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 18Bracket 7H0906279C
- 19Bush 701955756
- 20Grommet 701955754
- 21Collar Nut N01508210
- 22Damper 038129807
- 23Converter 1K0906627A
- 24Ut Hexagon Nut Self-locking Hexagon Nut N02300213
- 25Plate 046130405
- 26Grommet 046131887
- 27Spacer 052129734
- 29Hose 7H0129458H
- 30Valve 046905291A
- 31Air Filter 702129965
- 32Hose 7H0129458L
- 33Hose 7H0133241G
- 34Clamp N10279301
- 35Binder 4A0820199
- 36Cable Tie 3D0971838N
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TRANSPORTER/4MOTION 07 | 2006-2007 | 28, 27 | 1 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 28, 27 | 1 | |
| CAMPMOBIL (T5) 07 | 2006-2007 | 28, 27 | 1 | |
| Touareg | 2005-2006 | 32 | 1 | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 28, 27 | 1 | |
| TRANSPORTER 06 | 2005-2006 | 28, 27 | 1 | |
| CAMPMOBILE(T5) | 2004-2006 | 28, 27 | 1 | |
| Phaeton (lang) | 2003-2006 | 14 | 3 | |
| SHARAN/4MOTION | 2002-2005 | 10 | 1 | |
| ALHAMBRA/4MOTION | 2002-2005 | 10 | 1 | |
| SHARAN/4MOTION | 2000-2002 | 10 | 1 | J0L,J0R,J1L,J1U,8FA,8FL |
| ALHAMBRA/4MOTION | 2000-2002 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Panel Bolt is fitted on: TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; Phaeton (lang) 2003-2006; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002.
