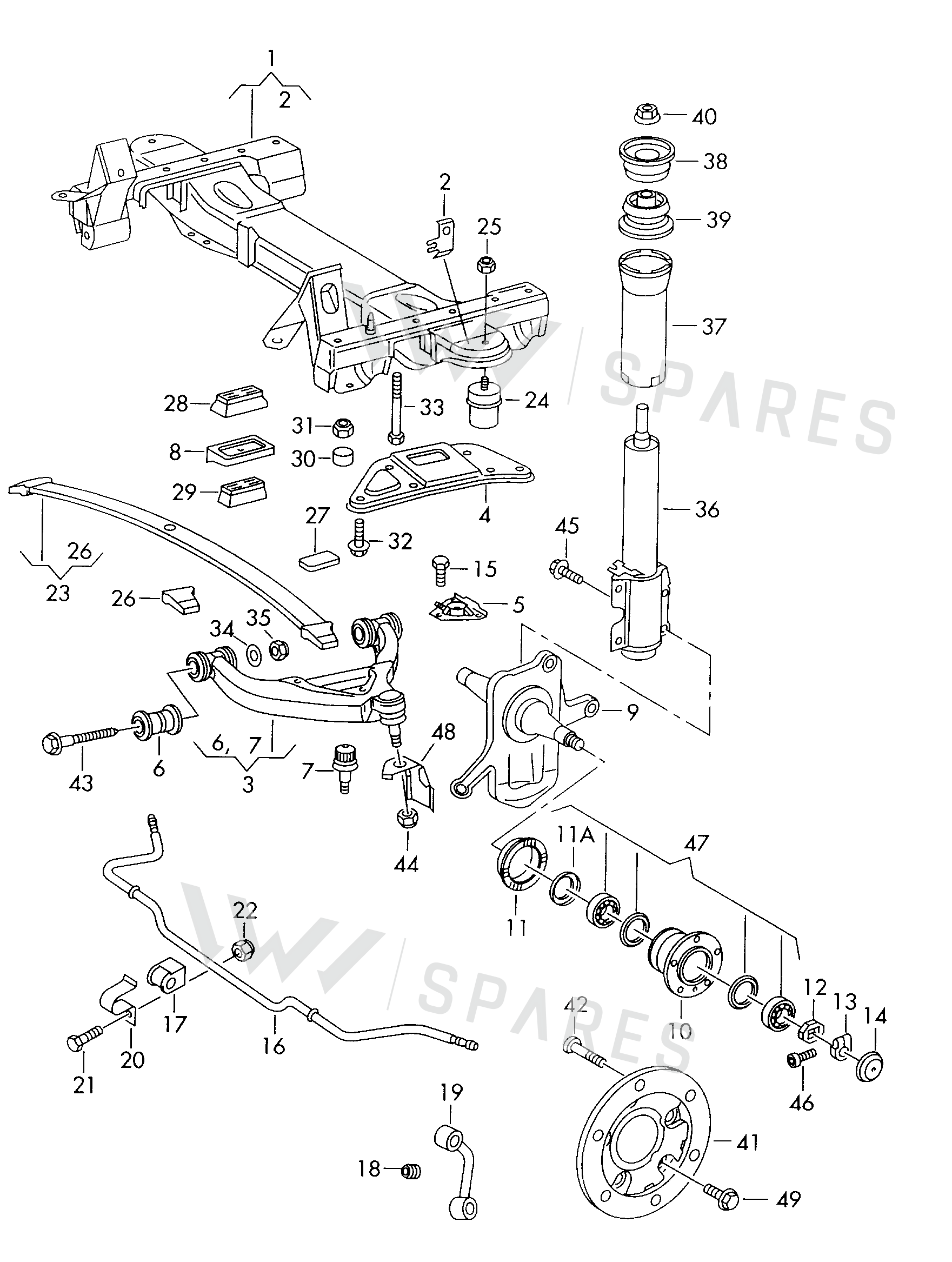

Hexagon Bolt exploded parts diagram — LT, LT 4X4 · 1996-2003, position 43
Exploded view
LT, LT 4X4 · 1996-2003 · position 43Full diagram ↓
N90771401

N90771401 Hexagon Bolt

£6.09
£5.03 excl. VAT
Supersession roadoldest to newest
  1. WHT001738Not stocked
    Feb 2006
  2. N90771401This pageNot stocked
    Jan 1999
  3. N90891501Discontinued
    Jun 2026
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly48
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
LT, LT 4X41996-2003434

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: LT, LT 4X4 1996-2003.
